Productions Switchers

ATEM 1 M/E Broadcast Panel is a professional panel with the highest quality buttons, knobs and controls for the most demanding 24/7 live production environment. The ATEM 1 M/E Broadcast Panel is compact so it fits within a rack width! You get full control of your switcher, including cameras, transitions, keyers, fader, DVE control and more. ATEM 1 M/E Broadcast Panel connects via ethernet and includes a loop thru connection for more than one panel or computer.

Link to Blackmagic ATEM

Productions Switchers

Get the workflow of a traditional 1 M/E SDI switcher combined with a very portable compact 2 RU size and a software control panel you can run on your laptop! Includes 4 SDI inputs, 4 HDMI inputs for consumer cameras or computers, analog input, and SDI, HDMI and analog outputs including down converted SDI output and USB 3.0! You even get a complete frame resynchronizer on every input! You also get professional features such as stinger and DVE transitions, 6 keyers, multi view, built in media players and more!

Link to Blackmagic ATEM

Productions Switchers

The incredible ATEM 2 M/E Broadcast Panel has the power for the most complex live broadcast events and it’s perfect when you have the space for a large panel and need all the control at your fingertips. The ATEM 2 M/E Broadcast Panel features an amazing design that not only looks incredible, but perfectly positions all controls just where you need them for the ultimate creativity on complex multi layer live production. The ATEM 2 M/E Broadcast Panel connects via ethernet and includes loop thru for your media management computer.

Link to Blackmagic ATEM

Productions Switchers

ATEM 2 M/E Production Switcher is perfect for when you’re working on serious live production. It includes all the features of the 1 M/E model in a compact 3 RU size. You also get 16 simultaneous inputs, SuperSource multi layering compositing engine, 2 multi view outputs, second M/E row, and a total of 6 Aux. outputs. The ATEM 2 M/E Production Switcher also includes a software control panel, or you can purchase a dedicated 1 M/E or 2 M/E control panel for the ultimate solution that’s traditional and easy to use in any live event!

Link to Blackmagic ATEM

Productions Switchers

Extend your broadcast SDI or consumer HDMI camera using low cost optical fiber! Imagine connecting to cameras at remote locations on racing tracks, live sporting venues or even massive golf courses! Now with ATEM Camera Converter you can have more cameras closer to the action for the most amazing shots in live production! ATEM Camera Converter not only converts your camera to optical fiber, but it also includes talkback, external microphone input, program return feed, tally and built in battery power source! Now you can place cameras in multiple locations miles away from your switcher while keeping full broadcast HD video quality!

ATEM Camera Converter gives you everything you need for live production in a single converter. Connect your camera to the SDI or HDMI inputs to convert to optical fiber, and connect your switcher program feed to the optical fiber input to convert to SDI and HDMI for monitoring. The SDI and HDMI monitoring outputs can be switched between your camera input or optical fiber input! Professional local microphone inputs are included. ATEM Camera Converter also includes an internal battery for remote use when your cameras are located far away from power sources, as well as built in talkback and tally!

ATEM Camera Converter uses optical fiber for its connection, so you get long distances combined with full uncompressed HD video quality. This lets you move your cameras farther away from your switcher and closer to the action! Imagine placing a camera at the end of drag racing strip, at the starting gate of a horse race, or even at the far end of a golf course! Even low cost consumer HD cameras look amazing when used with ATEM Camera Converter! ATEM Camera Converter is perfect for concerts, sporting events or even lecture theaters, houses of worship, surveillance, or any remote camera location!

Blackmagic Design ATEM Camera Converter

Productions Switchers

ATEM Studio Converter is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback! Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed. Studio converter can also be used as four independent SDI or Fiber to HDMI converters and four independent simultaneous SDI to Optical and Optical to SDI converters!

Productions Switchers

The production switcher for the internet age! ATEM Television Studio is a full broadcast quality production switcher with real time H.264 encoding so you can capture live events directly to files for internet distribution! ATEM Television Studio includes 6 video inputs with both broadcast SDI and consumer HDMI inputs for cameras and computers. You get software control panel, chroma keyer, two media player frame-stores, downstream keyers, transitions and more! Also works with ATEM control panels!

Link to Blackmagic ATEM

Converters

Convert an HDMI input to SDI output. Convert HDMI camera outputs to SDI for longer cable lengths and professional connectivity on location. Includes SD/HD auto switching and features dual SDI outputs. Includes a built-in lithium-ion polymer rechargeable battery and power supply.
Blackmagic Design Battery Mini Converters

Converters

Convert an SDI input to HDMI output. Perfect for connecting SDI camera outputs to HDMI monitors on location. Includes SD/HD auto switching and features SDI loop through for connection to further equipment. Includes a built-in lithium-ion polymer rechargeable battery and power supply.
Blackmagic Design Battery Mini Converters

Blackmagic Cameras

Blackmagic Cinema Camera is one of the world’s finest digital film cameras with a beautiful design that features a machined aluminum chassis, interchangeable optics, high resolution 2.5K sensor, 13 stops of dynamic range and 12-bit RAW uncompressed and compressed ProRes and DNxHD file formats!

Includes: sun shield, power supply, carry strap, UltraScope waveform monitoring software and a full version of DaVinci Resolve Software for Mac OS X and Windows.

More info about Black Magic Cinema Camera

Blackmagic Cameras

Get an even wider range of lens compatibility with the Blackmagic Cinema Camera MFT with Passive Micro Four Thirds (MFT) mount! Perfect for MFT lenses or even adapters to other lens mounts such as PL. You get the same beautiful design that features a machined aluminum chassis, interchangeable optics using Passive Micro Four Thirds (MFT) lens mount for manually operated lenses and adapters, high resolution 2.5K sensor, 13 stops of dynamic range and 12-bit RAW uncompressed and compressed ProRes and DNxHD file formats! Includes sun shield, power supply, carry strap, UltraScope waveform monitoring software and a full version of DaVinci Resolve Software for Mac OS X and Windows.

More info about Black Magic Cinema Camera

Blackmagic Cameras

Easy grip handles for Blackmagic Cinema Camera.

Add optional handles for shooting in locations where you need to move around quickly with your camera. Handles let you steady your shot and keep up with the action!
Blackmagic Cinema Camera Handles are machined from solid aluminum for strength, and feature solid rubber hand grips for maximum control.

Blackmagic Cameras

Shipping in July

Blackmagic Pocket Cinema Camera isthe world’s most compact Super 16 digital film camera features an elegant magnesium alloy chassis, 13 stops of dynamic range, Super 16 sensor size, high quality Apple ProRes 422 (HQ) and lossless compressed CinemaDNG RAW recording, as well as interchangeable optics with an active Micro Four Thirds lens mount, all packed into an incredibly tiny size. Includes power supply, removable/rechargeable battery and wrist strap.

 Included items:
- Blackmagic Pocket Cinema Camera
- Wrist strap
- Turret Dust Cap
- 12V AC Adapter

 More info at Blackmagic website

Blackmagic Cameras

Shipping in July

Blackmagic Production Camera 4K is a complete self contained solution for shooting extremely high resolution Ultra HD 4K content! You get a large Super 35 size sensor with professional global shutter combined with precision EF mount optics, visually lossless compressed CinemaDNG RAW and Apple ProRes 422 (HQ)™ file recording and 12 stops of dynamic range, as well as a 6G-SDI output! Monitor in high resolution on the built in touchscreen, plus change menus and enter metadata. Includes sun shield, power supply, carry strap, UltraScope waveform monitoring software and a full version of DaVinci Resolve software for Mac OS X and Windows.

 Included items:
- Blackmagic Production Camera 4K
- Sun Shield
- Camera Strap
- Turret Dust Cap
- 12V AC Adapter

 More info at Blackmagic website

Routing and Distribution

Broadcast Videohub is an ideal central router for post production or broadcasters. Broadcast Videohub is the perfect combination of large size and affordable price, so you can use it for connecting your equipment to a central location. Features 72 inputs, 144 outputs and 72 deck control ports all packed into a compact 8 rack unit size!

Link to Blackmagic Videohub

Encoding

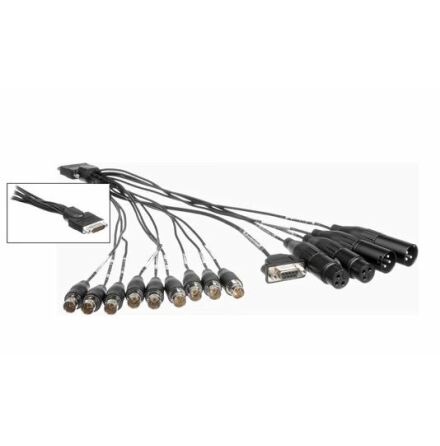

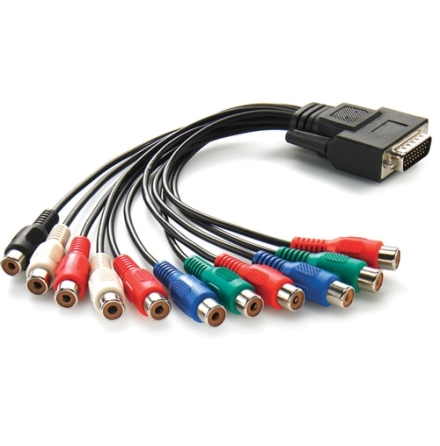

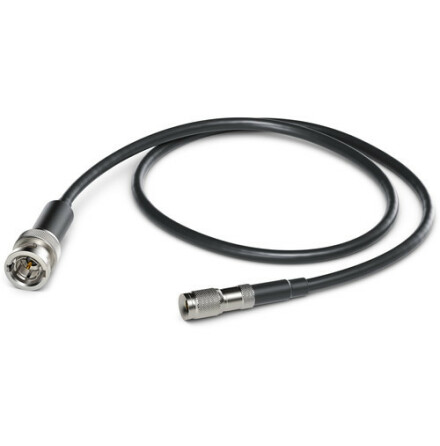

Cable for Decklink Studio

Editing and Design

Cable for DeckLink Quad / DeckLink 4 K Boundle of 9 BNC Female Cables.

Editing and Design

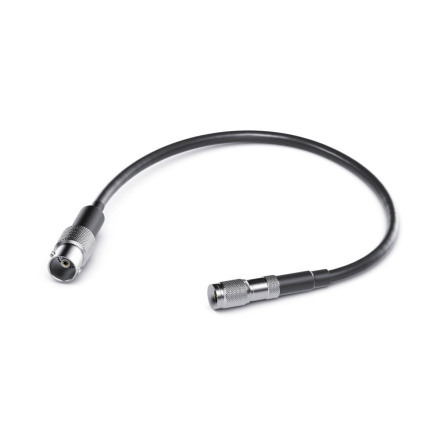

Cable for Hyper Deck Shuttle Boundle 1 Mini SDI – SDI Female and 1 Mini SDI – SDI Male

Routing and Distribution

Perfect when you need a bigger router in a small size, such as creative post facilities and broadcast trucks! Compact Videohub includes 40 x 40 SDI routing all packed into a 2 rack unit size! You get auto SD, HD and 3 Gb/s HD-SDI detection, re-clocking, with built in ethernet, USB and serial router control interfaces.

Link to Blackmagic Videohub

Color Correction

Upgrade from the software only solution to include the DaVinci Resolve Control Surface. The control surface and Resolve software have been designed by colorists to work together in total harmony. Controls have been placed near your natural hand positions and lift, gamma and gain can all be adjusted at the same time. Each correction control has a separate button or knob so you can instinctively reach out and touch every part of your image. Also includes a full license for DaVinci Resolve software for Mac, Windows and Linux.

Link to Blackmagic ATEM

Color Correction

DaVinci Resolve for Mac and Windows is the world’s most advanced color correction as a software only solution compatible with high performance GPU cards and off the shelf control panels including the Tangent Devices Element™, JL Cooper Eclipse CX™ and the Avid Artist Color™ control panels. Includes 32-bit float YRGB processing for all effects, power windows, tracking, primaries and secondaries and 3D object tracker. Great first color correction solution when you are working heavily in SD and HD!

Editing and Design

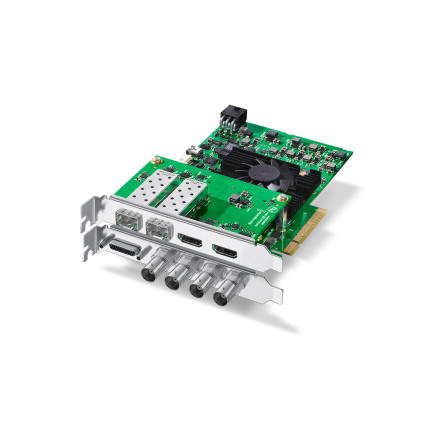

DeckLink 4K Extreme features a new high performance design for working in film quality 4K! Get 4 times the resolution of 1080HD! DeckLink 4K Extreme includes single and dual channel SDI capture and playback for both regular 2D and new 3D stereoscopic workflows! Includes dual link 3 Gb/s SDI, HDMI 3D and analog component/composite/s-video connections. Work in SD, HD, 2K and 4K. Also includes AES and analog balanced audio, 16 channel SDI audio, genlock and deck control. SDI, HDMI and analog component works in all video formats up to 1080p60. Includes broadcast quality up, down and cross conversion, plus built in SD/HD

Before ordering, always check Blackmagic support center for system requirements.

Editing and Design

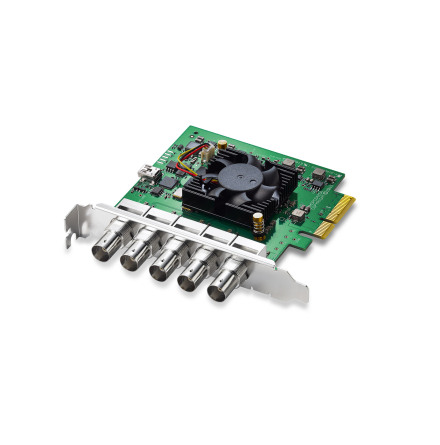

DeckLink Duo is perfect for developers who need two completely independent capture and playback streams in and out of a computer, as both capture and playback channels are completely independent. There are two SDI inputs, and two SDI outputs plus a common tri-sync/black burst reference. DeckLink Duo appears as two independent SDI cards to the computer, but only uses a single PCI Express slot. DeckLink Duo is perfect for servers where there are multiple streams or simultaneous capture and playback per system. DeckLink Duo is compatible with Windows™, Mac OS X™ and Linux™.

Before ordering, always check Blackmagic support center for system requirements.

Editing and Design

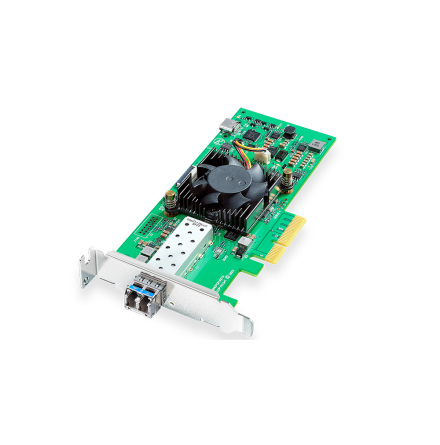

DeckLink Optical Fiber is the world’s first capture card to include optical fiber SDI connections. DeckLink Optical Fiber is identical to DeckLink SDI, but lowers the cost of using optical fiber SDI by building optical fiber directly into the card! DeckLink Optical Fiber is compatible with Windows™, Mac OS X™ and Linux™ and features HD/SD-SDI, optical fiber SDI capture and playback, reference input, RS-422 deck control and SD keying. DeckLink Optical Fiber let’s you use common low cost optical fiber networking cable that electricians can install. Optical Fiber is virtually future proof and is the future of SDI video for the television industry.

Before ordering, always check Blackmagic support center for system requirements.

Editing and Design

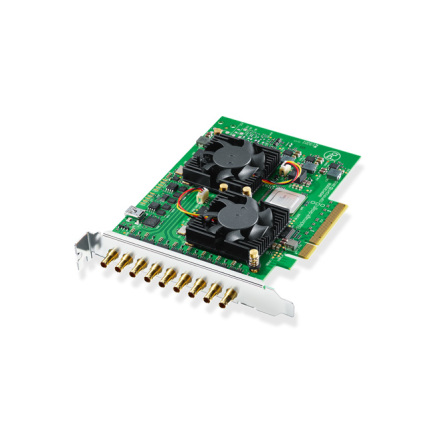

Build custom broadcast solutions with DeckLink Quad. When you need broadcast grade multi channel SDI capture and playback, then DeckLink Quad gives you four completely independent DeckLink capture cards, each with bypass relays and watchdog timer, all designed into a single PCI Express card! Perfect for developers and OEMs, now you have an ideal solution for media playout servers and real time processors.

Only DeckLink Quad empowers developers to create custom software and workflows on Mac, Windows or Linux without limitations. Let your imagination soar and create applications that capture and output simultaneously, while adding titles, resizing, de-interlacing, and converting formats on multiple streams! We include a sophisticated SDK, DirectShow filters and QuickTime API that integrate seamlessly with an unbelievably wide range of applications and codecs. Develop your solutions with confidence because DeckLink Quad is a flexible, proven foundation, freeing you to do what you do best!

Perfect for solutions targeting live broadcast and post production, DeckLink Quad records and plays back native uncompressed 8-bit and 10-bit SD and HD in YUV 4:2:2 for the best quality possible. All captured images will be stunning because they are a pixel-for-pixel clone of the source, without any generational loss or damaging compression. Create facility-class capture and playback solutions that demand the highest quality and are suitable for any kind of distribution, from broadcast to streaming.

Before ordering, always check Blackmagic support center for system requirements.

Editing and Design

If you're looking for an SDI only solution that's perfect for use with SDI decks, or in large facilities with SDI routers, then DeckLink SDI gives you incredible quality SD/HD-SDI capture and playback on any PCI Express Windows or Intel-based Mac Pro computer. The world’s smallest and most affordable 10 bit SDI video card works in both SD and HD and includes blackburst, tri-sync reference input, 8 channels of SDI embedded audio and RS-422 deck control. DeckLink SDI is perfect when combined with routers such as Blackmagic Design - Enterprise Videohub, SDI monitoring such as Blackmagic Design - HDLink Pro and video converters such as Blackmagic Design's Blackmagic Design - Mini Converter range.

Before ordering, always check Blackmagic support center for system requirements.

Editing and Design

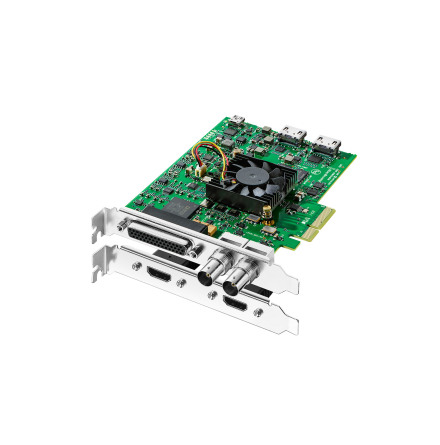

DeckLink Studio includes SDI, HDMI and analog video, analog and digital audio, keying in SD and a built in hardware down converter that always down converts to a separate SD SDI output, composite and s-video outputs, all in a compact and incredibly low cost solution that's perfect for broadcast editing, paint and design. DeckLink Studio supports both SD and HD and plugs into any PCI Express Windows, Linux or Intel-based Mac Pro computer. DeckLink Studio includes SD/HD-SDI, SD/HD component, composite, S-Video, 4 ch balanced analog audio, 2 ch AES/EBU, blackburst and tri-sync reference input and RS-422 deck control connections.

Before ordering, always check Blackmagic support center for system requirements.

Monitoring

DVI Extender lets you extend the DVI-D connection to your computer monitor via simple SDI cables! Now it's much easier to connect your computer displays anywhere in your facility, or even to more than one monitor when using any 3 Gb/s SDI router. DVI Extender also works as a regular DVI to SD/HD-SDI video converter, that’s perfect for broadcast graphics!

Blackmagic Design - DVI Extender

Productions Switchers

GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs. Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of tally outputs.

Encoding

Now it's easy to distribute your client’s H.264 video files to websites, YouTube™, iPhone™ and even iPad™ Blackmagic Design's H.264 Pro Recorder handles capture from all popular video formats so you can encode directly from professional broadcast decks!

H.264 Pro Recorder is for the industry professional who needs professional encoding from SDI, HDMI, analog component/composite and balanced audio! H.264 Pro Recorder includes Blackmagic Design’s powerful Media Express for frame accurate deck control with EDL import! Media Express lets you encode on Mac, Windows and Linux!

Blackmagic Design - H264 Pro Recorder

Monitoring

The HDLink Optical Fiber model is the world's first broadcast monitoring solution with built in optical fiber SDI connections. Optical fiber easily handles long distances, is low cost, and optical fiber cables last virtually forever because you can keep plugging them into faster equipment in the future, and the same cables will go much faster. Optical fiber cables can be installed by your local electrician, and the cables can be purchased from your local electrical wholesaler. That's because optical fiber is used all the time in computer networking, so it's low cost and commonly available! Now you can build a native optical fiber facility!

Blackmagic Design - HDLink

Monitoring

HDLink Pro 3D lets you display both dual stream as well as interleaved 3D inputs and then display them on any compatible 3D DVI display or HDMI television. When used with a DisplayPort to HDMI adapter, HDLink Pro 3D DisplayPort also supports HDMI 1.4 for compatibility with the latest full resolution 3D televisions!

Blackmagic Design - HDLink

Monitoring

HDLink - the world's most advanced full resolution 2D/3D HDTV and 2K monitoring for DVI, DisplayPort and HDMI monitors. Includes the quality of 4:4:4 SDI video, lookup tables via USB and analog audio outputs.

Blackmagic Design - HDLink

Disk Recorders

The world´s smallest uncompressed video recorder!

HyperDeck Shuttle dramatically improves the quality of video cameras and is the perfect portable field recorder for live production switchers! It's also the ultimate solution for digital signage. HyperDeck Shuttle gives you the quality and flexibility of compressed DNxHD and uncompressed recording direct to common low cost SSDs in the smallest possible size! HyperDeck Shuttle is compact, affordable and battery powered so it’s perfect as a field recorder. HyperDeck Shuttle bypasses your camera’s compression and records from SDI and HDMI direct into the highest quality video possible! SSDs are cheap and fast, so you can edit directly from the SSD media itself. Only SSDs eliminate time wasting file copying!

Now you have the freedom to work in both compressed and uncompressed video depending on the needs of your project! Uncompressed video will always produce the highest quality mathematically perfect results and is ideal when recording video for color correction, chroma keying and high end VFX work. When you need longer recording duration or you're working with lots of video material, HyperDeck Shuttle 2 can be instantly changed over to use DNxHD MXF compressed video files. The popular Avid DNxHD is a SMPTE standard codec that's used by thousands of broadcast and post production facilities worldwide as it maintains the highest 10-bit video quality with the advantage of smaller file sizes.

Disk Recorders

Get the ultimate in flexible mounting!

HyperDeck Shuttle Mount Plate simply replaces the bottom foot on your HyperDeck Shuttle with this innovative mounting plate thats so easy to install it requires only 4 small bolts!

Then you get everything you need for an extremely versatile and flexible mounting solution for your HyperDeck Shuttle.
Now you can easily secure your HyperDeck Shuttle to a camera rig with your choice of rail mounts, cold shoe mounts, articulated arms and a whole lot more.
That’s because HyperDeck Shuttle Mount Plate features a variety of pre-drilled 1/4" and 3/8" holes, making it compatible with every mount accessory you’ll ever need.
It also gives you the freedom to power your HyperDeck Shuttle from an external battery. Simply attach a V-Mount or Anton Bauer style battery plate and you’re good to go.

Disk Recorders

The world's first uncompressed HD recorder that lets you record forever! HyperDeck Studio features dual SSD slots and automatically continues recording onto the next SSD when one record disk fills! HyperDeck Studio features uncompressed video quality, deck style user interface, removable SSD disks and serial control for a 21st century broadcast deck!

BlackMagic Design - HyperDeck Studio

Disk Recorders

HyperDeck Studio Pro records 4:2:2 SD/HD and 2K, all in full uncompressed quality. Use ProRes or DNxHD compression for high quality HD video in file sizes that provide 5 times longer recording. HyperDeck Studio Pro features 3Gb/s SDI, HDMI and analog component connections, plus professional XLR audio and built-in Thunderbolt connectivity. It includes a built-in power supply for convenience and the 1 rack unit size fits easily into any studio or portable rack!

BlackMagic Design - HyperDeck Studio

Editing and Design

Intensity Extreme, the world’s first 10 bit HD/SD editing solution for to feature lightning fast Thunderbolt™ technology. Simply plug in Intensity Extreme to get incredible quality HDMI, component video, s-video and composite 10 bit capture and playback for Thunderbolt™ based computers. The perfect solution for videographers, Intensity Extreme includes SD/HD capture and playback in compressed and uncompressed video quality. Better still, this revolutionary new device is compatible with Final Cut Pro 7™, Adobe Premiere Pro™, Adobe After Effects™, Nuke™, DaVinci Resolve and more.

Blackmagic Design - Intensity

Requires Macintosh computer with Thunderbolt™ running Mac OS X.

Please check the Tech specs to see the full system requirements.

Editing and Design

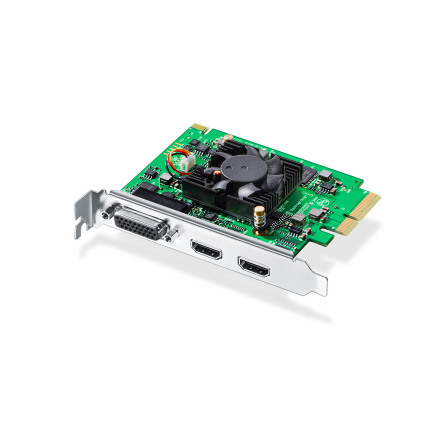

Intensity Pro is the world’s first HDMI and analog component, NTSC/PAL and s-video PCIe capture and playback card for Windows, Mac OS X and Linux computers. Intensity Pro is great for HDTV or standard definition editing using big screen televisions and video projectors. Intensity Pro works with uncompressed SD or HD video, and compressed codecs such as ProRes, DVCPRO HD, DVCPRO 50, JPEG, HDV and DV! Intensity Pro is a professional editing card featuring maximum real time effects in Apple Final Cut Pro™ and Adobe Premiere Pro™, with full support for both uncompressed and compressed AVI and QuickTime files. Intensity Pro also has full integration with Adobe After Effects, Photoshop and Fusion.

Before ordering, always check Blackmagic support center for system requirements.

Editing and Design

Intensity Shuttle is now available with incredibly fast Thunderbolt™ technology. Capture and playback the highest quality SD and HD video in full 10-bit quality, with HDMI, analog component, composite and S-Video connections. Intensity Shuttle’s innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other! Intensity Shuttle is powered over the Thunderbolt™ cable so you don’t need cumbersome power supplies. Intensity Shuttle uses the same high quality electronics as Blackmagic Design's high end capture and playback solutions.

Blackmagic Design - Intensity

Requires Macintosh computer with Thunderbolt™ running Mac OS X 10.6.8 Snow Leopard or later, and Mac OS X 10.7 Lion or later. Please check the Support pages to see the full system requirements. Please check the Tech specs to see the full system requirements.

Editing and Design

Intensity Shuttle, the world’s first 10 bit HD/SD editing solution for USB 3.0 Windows computers! Simply plug in Intensity Shuttle and get access to incredible quality 10 bit HDMI, analog component, composite and s-video capture and playback. Intensity Shuttle’s innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other! Intensity Shuttle powers from the USB 3.0 connection so you don’t need cumbersome power supplies. Intensity Shuttle comes ready with advanced video technology such as HDMI 1.3 and 1080p electronics, so it will grow as faster high performance USB 3.0 computers are released in the future!

Blackmagic Design - Intensity

Installation: USB 3.0. Requires an x58 based motherboard with onboard USB 3.0, or a USB 3.0 PCI Express card and an x58 or P55 series motherboard. Does not support USB 2.0 capture and playback. Please check the Tech specs to see the full system requirements.

Routing and Distribution

Perfect for locations where space really counts, such as outside broadcast trucks. Micro Videohub is the world’s smallest router! Micro Videohub includes 16 x 16 SDI routing, auto standard detection for SD, HD and 3 Gb/s HD-SDI, re-clocking, with built in ethernet, USB and serial router control interfaces.

Link to Blackmagic Videohub

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Includes everything you need to embed 4 channels of analog audio, or 8 channels of AES/EBU digital audio into any SDI video connection. Embed audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Now you can connect Quad Link HD-SDI based 4K or Dual Link 3 Gb/s SDI based 4K to the newest HDMI 4K projectors and televisions that support 4K over a single HDMI link. Mini Converter SDI to HDMI 4K lets you build 4K monitoring with ease, while still working with all your regular SD and HD equipment!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Build your SDI studio with the worlds most advanced and easy to use converters! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology. There's 9 great models to choose from depending on the conversion you need, plus a sync generator model!

Blackmagic Design Mini Converters

Converters

Mini Converter Heavy Duty Analog to SDI includes everything you need to convert from analog video in HD/SD component, NTSC, PAL or S-Video to SDI video, with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes and HDV cameras to SDI video, all in a compact and super tough converter machined from a solid block of aluminum!

Blackmagic Design Mini Converters

Converters

Mini Converter Heavy Duty HDMI to SDI includes everything you need to convert from HDMI* to SDI video, with the choice to embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Now you can add SDI outputs to cameras with HDMI connections, or add SDI outputs to computers with HDMI all in a compact and super tough converter machined from a solid block of aluminum!

Blackmagic Design Mini Converters

Converters

Mini Converter Heavy Duty SDI to Analog includes everything you need to convert from SDI to analog in HD/SD component, NTSC and PAL video, plus balanced AES/EBU and analog audio. Now you can easily connect equipment such as Betacam SP, VHS, and analog video monitors to SDI based equipment all in a compact and super tough converter machined from a solid block of aluminum!

Blackmagic Design Mini Converters

Converters

Mini Converter SDI to HDMI includes everything you need to convert from SDI to HDMI video with embedded HDMI audio, plus balanced AES/EBU or analog audio. Imagine using big screen televisions and video projectors for broadcast video monitoring! Now you can monitor using HDMI displays from SDI based equipment all in a compact and super tough converter machined from a solid block of aluminum!


Blackmagic Design Mini Converters

Converters

Ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI!. It also supports ancillary data and embedded audio!

Blackmagic Design Mini Converters

Converters

The converter you need when converting between Quad Link HD-SDI 4K and Dual Link 3 Gb/s SDI 4K equipment. Mini Converter SDI Multiplex includes 4 x 3 Gb/s SDI inputs and 4 x 3 Gb/s SDI outputs so it can convert in both directions. Also converts between Dual Link HD-SDI 4:4:4 and Single Link 3 Gb/s SDI.

Blackmagic Design Mini Converters

Converters

Perfect for converting from analog HD/SD component to SDI out with balanced AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

Blackmagic Design Open Gear Converters

Converters

Includes everything you need to embed 4 channels of
analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Embed audio from audio mixers and analog decks into SDI video for use with SDI routers and decks, or to add extra audio channels to video converters!

Blackmagic Design Open Gear Converters

Converters

Ideal for converting from non copy protected HDMI devices to SDI out with embedded SDI audio from the HDMI input. Now you can convert HDMI video devices to SDI, or add SDI outputs to computers with HDMI compatibility.

Blackmagic Design Open Gear Converters

Converters

Convert SDI to Optical Fiber, and Optical Fiber to SDI simultaneously. Blackmagic OpenGear Optical Fiber auto switches between any SD, HD, 3 Gb/s HD-SDI video standards and each direction is completely independent.

Blackmagic Design Open Gear Converters

Converters

When needing to send the same signal to several devices at once, OpenGear Converter SDI Distribution handles the task perfectly. Supports SD-SDI, HD-SDI, 2K and 3Gb/s SDI video formats. OpenGear Converter SDI Distribution also handles ASI. What’s more, it’s compatible with ancillary data and embedded audio.

Blackmagic Design Open Gear Converters

Converters

Includes everything you need to convert from SDI to analog HD/SD component, NTSC and PAL video out, plus balanced AES/EBU and analog audio out. Easily connect to Betacam SP, VHS and video monitors. Features a built in hardware down converter to connect HD-SDI video to SD equipment!

Blackmagic Design Open Gear Converters

Converters

Includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

Blackmagic Design Open Gear Converters

Converters

Converts from SDI to HDMI video out with embedded HDMI audio. Imagine using big screen TVs and video projectors as broadcast video monitors! Now it’s incredibly easy to connect a huge range of HDMI displays to SDI based equipment!

Blackmagic Design Open Gear Converters

Converters

Includes 10 crystal stabilized video reference outputs for referencing all the video equipment in your studio with either high definition tri-sync or standard definition black burst. Perfect for small studios or outside broadcasts!

Blackmagic Design Open Gear Converters

Converters

Lets you convert between multiple SD and HD video standards with high quality up, down and cross conversion. OpenGear Converter UpDownCross even includes a full standards converter, plus adapts SDI audio delay to match video processing for accurate AV sync.

Blackmagic Design Open Gear Converters

Routing and Distribution

Now you can afford a control panel for all your monitors and decks so you can set the input with a single button press! Each button can be set to a different router input and you can set single or multiple router outputs. All buttons include full RGB illumination and Smart Control connects to Videohub via Ethernet and setup software is included!

Link to Blackmagic Videohub

Routing and Distribution

Smart Videohub includes all the great features of Micro Videohub plus a built in control panel. Now you can change all routing with the push of a button! Smart Videohub includes 16 x 16 SDI, 3 Gb/s SDI, auto SD/HD/3 Gb/s SDI, re-clocking, ethernet, USB and serial router control interfaces. Great first router that’s incredibly easy to use. Plus you can expand it’s power with all the exciting Videohub control!

Link to Blackmagic Videohub

Monitoring

Get the ultimate in low cost SDI monitoring with SmartView Duo! Perfect for post production, broadcast or live events, SmartView Duo features two large 8 inch LCD screens in a compact rack mount design that's less than an inch thick! SmartVideo Duo handles all SD, HD and 3 Gb/s SDI video standards, and all screens can be remotely adjusted via your ethernet network! Use SmartView Duo in racks for local monitoring, for multi monitor video walls in master control rooms or for camera monitoring for production switchers! With SmartView Duo you can afford to put SDI monitoring everywhere you need!

Monitoring

New SmartView HD features an amazing 17" LCD screen that lets you monitor SD, HD and 3Gb/s SDI video in full resolution HD. Just as impressive is its ultra slim, 6RU rack mountable design. Only an inch thick, it’s the perfect size for all your SDI monitoring needs. What's more, SmartView HD can be conveniently adjusted from your computer via Ethernet.

Routing and Distribution

Studio Videohub is perfect for smaller workgroups who need compact size at an affordable cost. Studio Videohub has the exact same high performance features of the larger models, including 3 Gb/s SDI, auto standard detection for SD, HD and 3 Gb/s HD-SDI formats, re-clocking and more. Features 16 inputs, 32 outputs and 16 deck control ports all packed into a tiny 2 rack unit size less than an inch thick.

Link to Blackmagic Videohub

Disk Recorders

Perfect for regular conversions as well as capture and playback. Get SD/HD and 3 Gb/s SDI, HDMI and analog in and out, 8 channel AES/EBU, 4 channel balanced analog input and output as well as consumer HiFi audio input connections. Thunderbolt port for computer capture and playback, RS-422 deck control, reference input, and ethernet are included for remote configuration.

Get amazing processing with high quality de-interlacing, up conversion, down conversion, SD and HD cross/standards conversion, automatic cadence detection, removal and correction even with edited content, noise reduction, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

BlackMagic Design - Terranex

Video Processing

Get all the connections, processing and quality of the Teranex 2D model but with added dual link SD/HD and 3 Gb/s SDI and HDMI 3D inputs and outputs for dual stream 3D conversions and Dual Link 4:4:4 quality conversions. Get the same amazing processing features plus 3D features such as 3D dual stream processing, conversion between 3D formats, patent pending 3D simulation and 3D camera rig alignment!

With the Teranex 3D processor, you can connect both left and right eye feeds and perform high quality de- interlacing, up conversion, down conversion, SD and HD cross/standards conversion, automatic cadence detection, removal and correction, even adjustable scaling and aspect ratio conversion on both eye channels at the same time! When capturing via a Thunderbolt port you get support for capture and playback of two independent video files for each eye, as well as full support for 3D capable NLE software!

BlackMagic Design - Terranex

Test Equipment

Blackmagic UltraScope is a combination PCI Express card and software package designed to work with a low cost PC and display. UltraScope automatically detects between SD, HD and 3Gb/s HD-SDI video standards and includes both traditional copper BNC SDI inputs as well as optical fiber SDI inputs. SDI input is available as a relocked SDI loop through on both optical and copper SDI outputs. Blackmagic UltraScope is technically accurate which is perfect for master monitoring and quality control tasks.

Blackmagic Design - Ultrascope

Test Equipment

Get all the incredible features of UltraScope on your laptop! Pocket UltraScope includes the same fantastic UltraScope software combined with a miniature pod that converts 3 Gb/s SDI to the computer’s USB 3.0 connection. Pocket UltraScope simply plugs in and is accurate and portable, so you can bring UltraScope to the most remote locations. Pocket UltraScope automatically detects between SD, HD and 3Gb/s HD-SDI video standards, and is powered from the laptop battery via the USB 3.0 port so you don’t need a power source when on location!

Blackmagic Design - Ultrascope

Editing and Design

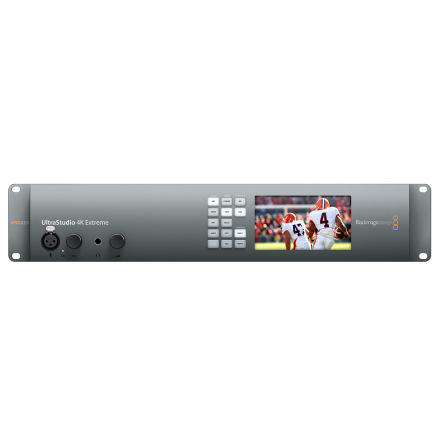

Rack mount Thunderbolt™based capture and playback "break out box"  with latest high performance technology including 4:4:4 and dual channel 3D stereoscopic capture and playback, plus full resolution 4K monitoring! UltraStudio 4K is the solution you need when doing high performance work that demands quality. Packed with the latest SDI, HDMI and analog video, and timecode connections, as well as AES/EBU, balanced and unbalanced analog audio. There is no better solution for video I/O!

Editing and Design

Introducing UltraStudio 3D and UltraStudio Express, the world’s most innovative video capture and playback solutions using Intel’s new, lightning fast Thunderbolt™ technology! UltraStudio 3D and UltraStudio Express are compact, portable and affordable, plus provide the high performance SD/HD capture and playback that Hollywood film, broadcast television, and post production markets demand. The UltraStudio 3D model even supports 2K or two streams of full resolution video up to 1080p HD for new stereoscopic 3D workflows!

Requires computer with a Thunderbolt™ port. Please check the Support pages to see the full system requirements.

Please check Tech specs for system requirements.


Blackmagic Design - UltraStudio Express

Editing and Design

When you need low cost monitoring for editing, then UltraStudio Mini Monitor is perfect. Plug in the Thunderbolt and monitor out of the SDI and HDMI outputs. Perfect for using low cost HDMI TV's and projectors for monitoring.

Please check Tech specs for system requirements.


Blackmagic Design - UltraStudio Express

Editing and Design

The mini recorder that fits in your pocket, UltraStudio Mini Recorder is super tiny and includes just SDI and HDMI connections, plus Thunderbolt. Simply plug in and record from any SDI and HDMI device for the most incredible portable solution.

Please check Tech specs for system requirements.


Blackmagic Design - UltraStudio Express

Editing and Design

UltraStudio Pro is the world’s first broadcast quality SD/HD capture and playback solution for USB 3.0 computers! UltraStudio Pro combines the latest broadcast technology into an attractive ultra-thin design that looks great on your desktop! With the incredible speed of USB 3.0 running at a massive 4.8 Gb/s, UltraStudio Pro easily has enough speed for the highest quality uncompressed 10 bit HD video with the maximum possible real time effects!

Blackmagic Design - UltraStudio Pro

Installation: USB 3.0. Requires an x58 based motherboard with onboard USB 3.0, or a USB 3.0 PCI Express card and an x58 or P55 series motherboard. Does not support USB 2.0 capture and playback.
Please check the Tech specs system requirements.

Editing and Design

The world's smallest and most affordable SDI capture and playback solution for USB 3.0 computers! UltraStudio SDI simply plugs in to add 10 bit SDI capture and playback, plus HDMI monitoring to your computer! Because it powers from the USB connection, it's a snap to install! With high quality SDI and HDMI monitoring, plus genlock and RS-422 deck control built in, you get the the highest quality solution for editing, effects, paint and design.

UltraStudio SDI is so compact it fits right into your hand! UltraStudio SDI can be hidden under desks or taken on location. With an attractive machined aluminum design, it looks great on your desk or on location shoots. UltraStudio SDI includes a built in HDMI 1.3 output so you can even use a low cost television as a broadcast monitor! We also include Photoshop plug-ins, NLE drivers and our award winning Media Express deck control software! Perfect with laptops for SDI acquisition on location, or in large creative groups so all computers can be connected to broadcast routing infrastructure, UltraStudio SDI is the perfect low cost solution!

UltraStudio SDI is an attractive and compact design that’s machined out of a solid block of aluminum for incredible strength. That means you get a beautifully finished uni-body design that looks great on your desk. UltraStudio SDI includes a mounting bracket that lets you mount it under desks or on walls for added security. UltraStudio SDI eliminates messy power supplies because it powers from the USB 3.0 connection, plus there are no switches or adjustments because it automatically switches between SD, HD and 3 Gb/s SDI video formats.

Requires a computer with onboard USB 3.0, or a USB 3.0 PCI Express 2.0 card. Does not support USB 2.0 capture and playback.

Please check Tech specs for system requirements.


Blackmagic Design - UltraStudio SDI

Encoding

Capture video direct to H.264 video files for your iPod, iPhone, Apple TV, YouTube and even full resolution video backups!

Now you can capture analog video from VHS, Video-8, video cameras and more, direct to the H.264 file format as used by iPod™, iPhone™, Apple TV™ and YouTube™. Blackmagic Video Recorder plugs directly into your computer’s USB and includes easy to use software. Get the highest quality video capture from any component video or regular video device. Blackmagic Video Recorder eliminates time consuming processing because it captures into the native file format of your mobile device. It can even copy to iTunes ready for syncing!

Blackmagic Design - Video Recorder
