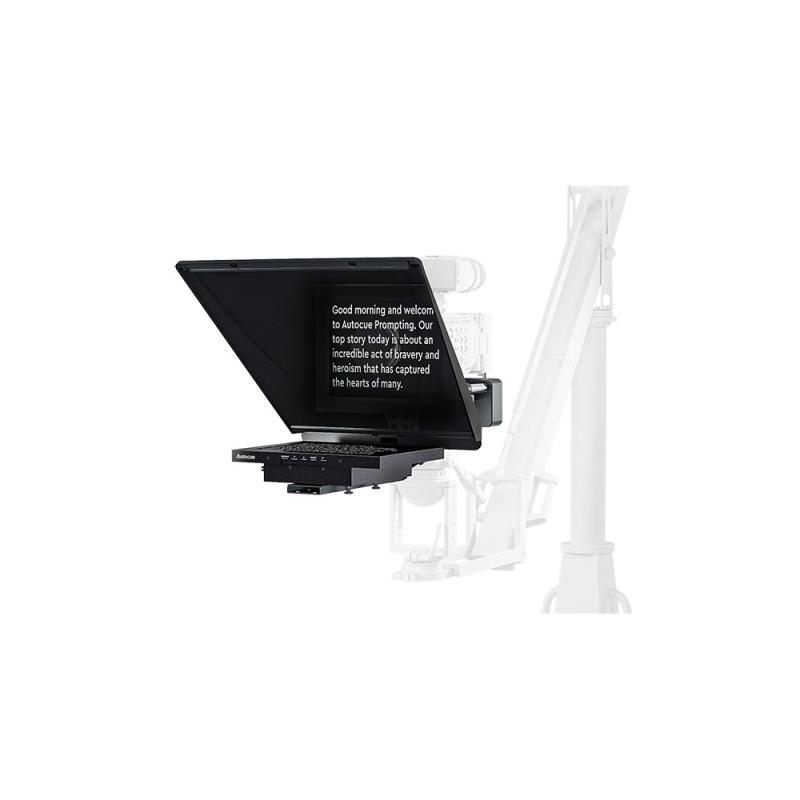

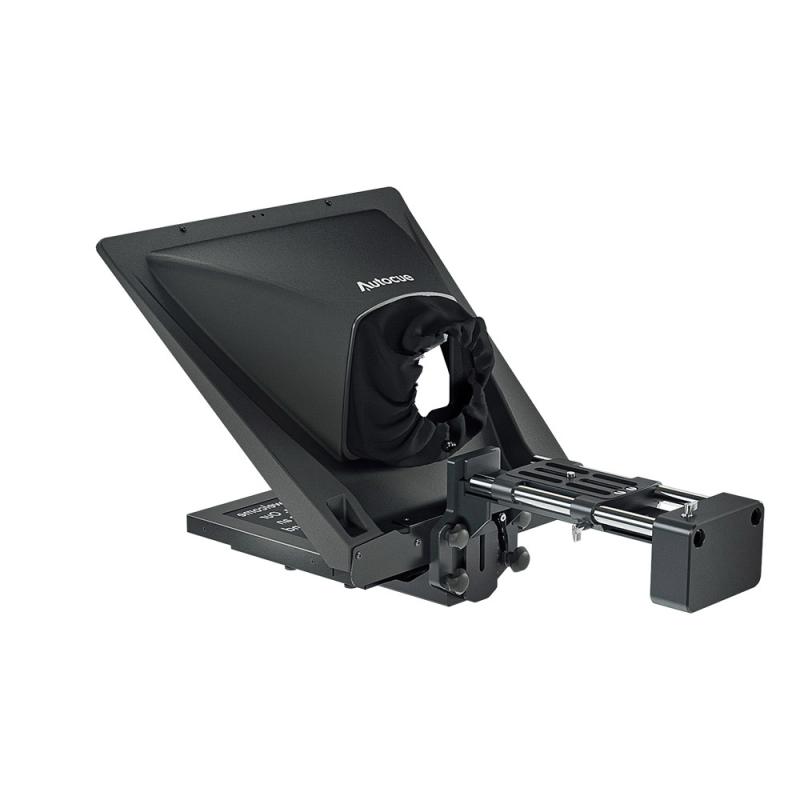

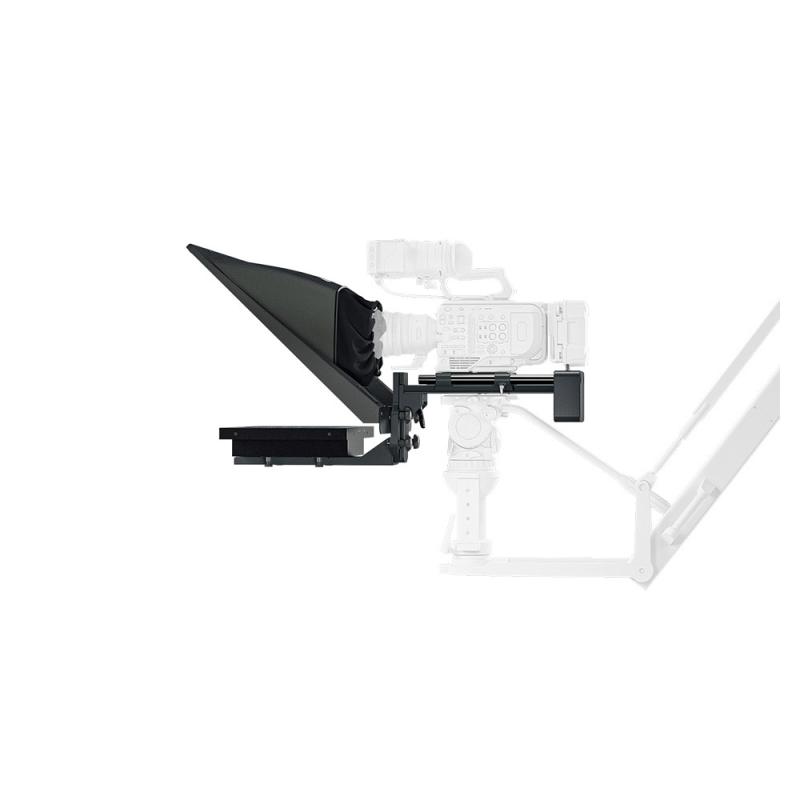

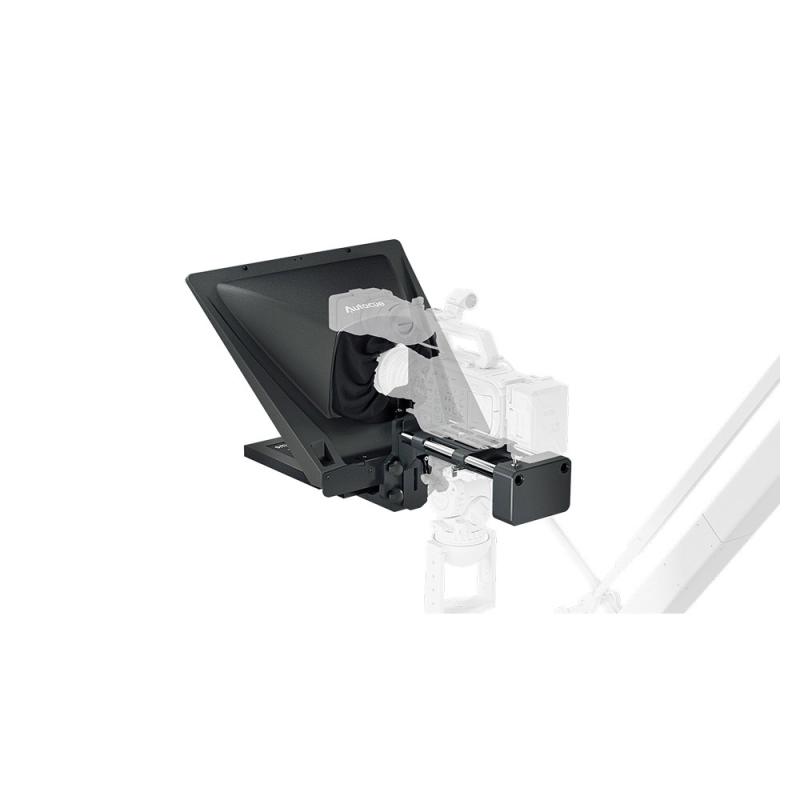

12" Pioneer Jib Teleprompter

When your camera support is demanding, Autocue has options. The 12" Pioneer Jib Teleprompter is the smallest Autocue teleprompter package with a composite hood. This keeps it lightweight for low-capacity support and stable during the higher speed moves you might want from a jib.

Pioneer Series packages include Autocue?s highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong but lightweight metal housing ready to take years of hard work. Autocue selected a 12" monitor with aluminium casing for this system to keep the weight down and you can expect around a 4.5m/15? max reading range. HD-SDI, CVBS, VGA, and HDMI inputs make sure the prompter will integrate whether you have a single PC or a full broadcast facility.

The Pioneer Series Jib Teleprompter has Autocue?s medium hood which allows for all but the widest angle lenses and weighs less than its larger sibling. The hood is made of a lightweight composite and holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera.

Technical specifications

Aspect Ratio:4:3

Aux. Output: 12V DC, 3A max

Brightness: 1500Nits

Camera Base To Lens Centre Height Supported: 50 mm to 14 cm / 1.97 in to 5.51 in

Connectivity: 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA

Contrast: 1000:1

Counterweight: 5 kg / 11.02 lb

Counterweight Mounting Rods: 2x 19mm dia.

Hood: Medium composite hood with collapsible fabric lens seal

Image Flip: Horizontal & vertical

Input Voltage: 12V DC

Inputs: 3G/HD/SD-SDI, CVBS, HDMI, VGA

Monitor Dimensions: 30.7 cm x 24.5 cm x 56 mm / 12.09 in x 9.65 in x 2.2 in

Monitor Mounting: VESA100 with additional 3-8"-16 camera support fixings

Monitor Size: 12"

Monitor Weight: 1.3 kg / 2.87 lb

Power Consumption: 25W max

Power Supply: 110-240V AC 50/60Hz input, 12V DC, 5A max. output

Rail Fixings: 3/8"-16, with optional 1/4"-20 inserts

Resolution: 1024x768

Series: Pioneer

System Dimensions: 50.3 cm x 42 cm x 72.9 cm / 19.8 in x 16.54 in x 28.7 in

System Weight: 8.1 kg (excluding counterweight) / 17.86 lb (excluding counterweight)

In The Box

Monitor

PSU

Mounting rail with bracket set

Camera carriage

Monitor spine

Medium hood

Beamsplitter glass

19mm rod set

5kg counterweight

HDMI cable, 10m

UK/EU or US IEC power cable
