19 EVO-IP PTZ Prompter Package

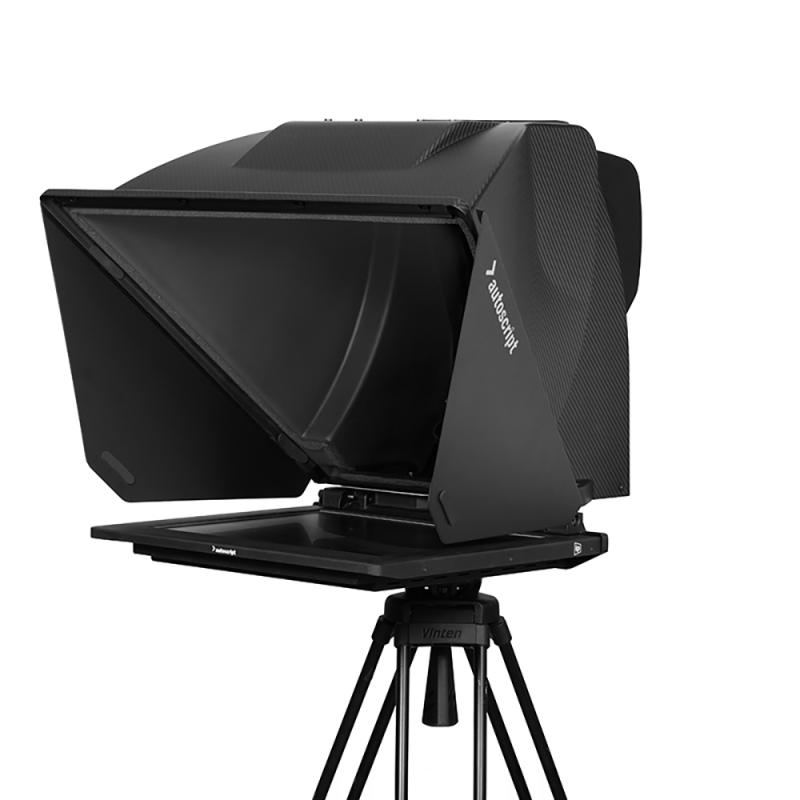

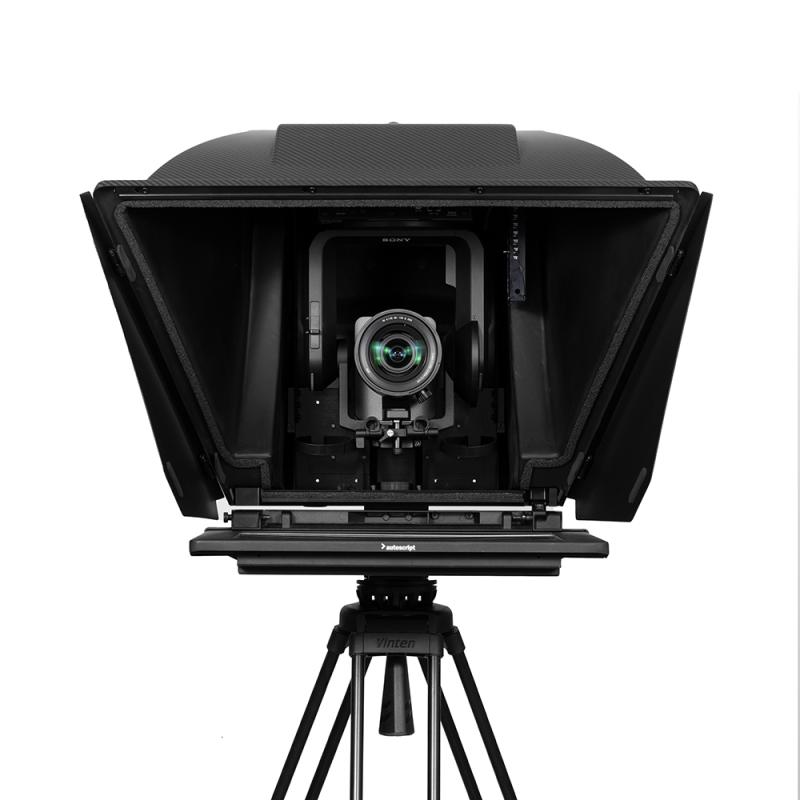

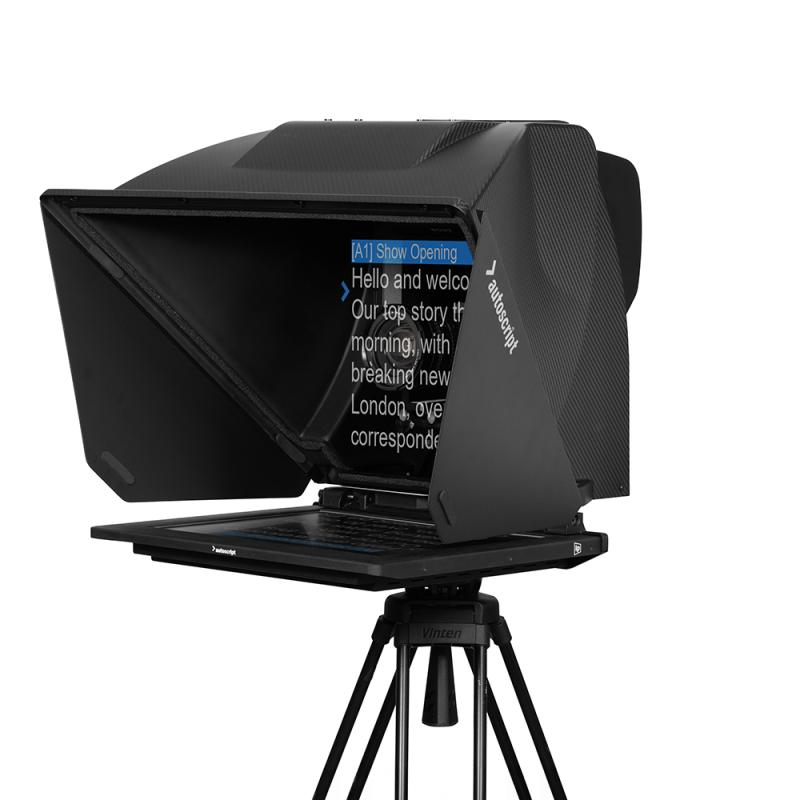

The EVO-IP19PTZ Prompter Package is engineered for broadcast studios demanding precision, reliability, and seamless integration with PTZ camera workflows. Built to meet the highest standards, the system features a purpose-built carbon fibre hood and integrated mounting architecture, delivering a clean, professional setup with thoughtful cable management and robust structural design.A bracket within the hood enables inverted mounting of the PTZ camera with continuous adjustment of its vertical and horizontal position. Designed to support a wide range of PTZ cameras - including the Sony FR7 and Canon N700 - the enclosure enables in-hood calibration, allowing cameras like the FR7 to auto-calibrate without removing the glass. This ensures consistent framing and reduces setup time in fast-paced, multi-camera environments.VESA mounting points on the top and rear of the hood allow installation of the prompter on wall or ceiling mounts, while camera support fixing points sit underneath the monitor to allow for easy balancing.The 19"" EVO-IP monitor provides 1500 Nits brightness, 1000:1 contrast, and wide viewing angles for optimal readability under studio lighting. With support for IP connectivity, as well as HD-SDI and Composite inputs, the EVO-IP 19 PTZ Prompter Package is built to meet the demands of all modern broadcast operations.

The EVO-IP19PTZ Prompter Package is engineered for broadcast studios demanding precision, reliability, and seamless integration with PTZ camera workflows. Built to meet the highest standards, the system features a purpose-built carbon fibre hood and integrated mounting architecture, delivering a clean, professional setup with thoughtful cable management and robust structural design.A bracket within the hood enables inverted mounting of the PTZ camera with continuous adjustment of its vertical and horizontal position. Designed to support a wide range of PTZ cameras - including the Sony FR7 and Canon N700 - the enclosure enables in-hood calibration, allowing cameras like the FR7 to auto-calibrate without removing the glass. This ensures consistent framing and reduces setup time in fast-paced, multi-camera environments.VESA mounting points on the top and rear of the hood allow installation of the prompter on wall or ceiling mounts, while camera support fixing points sit underneath the monitor to allow for easy balancing.The 19"" EVO-IP monitor provides 1500 Nits brightness, 1000:1 contrast, and wide viewing angles for optimal readability under studio lighting. With support for IP connectivity, as well as HD-SDI and Composite inputs, the EVO-IP 19 PTZ Prompter Package is built to meet the demands of all modern broadcast operations.

Key Features

- Integrated PTZ housing - Accommodates a broad range of PTZ cameras within the hood, offering a clean, protected setup ideal for live production environments.
- In-hood calibration enables camera calibration with the glass in place - Essential for auto-calibrating models like the Sony FR7.
- Broadcast-grade construction - Carbon fibre enclosure with side flags for enhanced light control.
- Wide field of view - Supports ±15deg pan and ±5deg tilt with wide-angle PTZ lenses
- Integrated cable management - Built-in routing channels and a removable rear access panel ensure clean, efficient cable handling.

Technical specification

Size: 19″

Monitor only weight: 3.9 kg / 8.6 lb

System weight: 15.35 kg / 33.8 lb

Aspect Ratio: 4.3

Brightness: 1500 nits

Resolution: 1280 x 1024 SXGA

Contrast 1000:1

Script Inputs: LAN, 2x HD-SDI, 2x CVBS

Tally Input: Opto Sensor

Timecode Inputs: LTC, NTP (VITC, D-VITC optional)

Power consumption: 29W

Power Input: 4-pin XLR, 12-16.8VDC

Outputs: Repeat Tally Output inc. 12V DC Out

Viewing Angle: H/V 170 Degrees/160 Degrees

Dimensions: 467 x 399 x 41mm / 18.4 x 15.7 x 1.6″

Hood: carbon fibre composite, compatible with PTZ cameras

Monitor mounting: VESA100 with additional 3-8″-16 camera support fixings

Hood dimensions: 708 x 549 x 611mm /27.9 x 21.6 x 24.1 in (including rear cover and monitor bracket)

Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood with integrated mounting bracket, and glass

Warranty: 2 years

Included items

A9012-0002 Hood

A9010-2001 Large beamsplitter glass

EVO-IP19M Monitor

A9010-1019 Backplate
