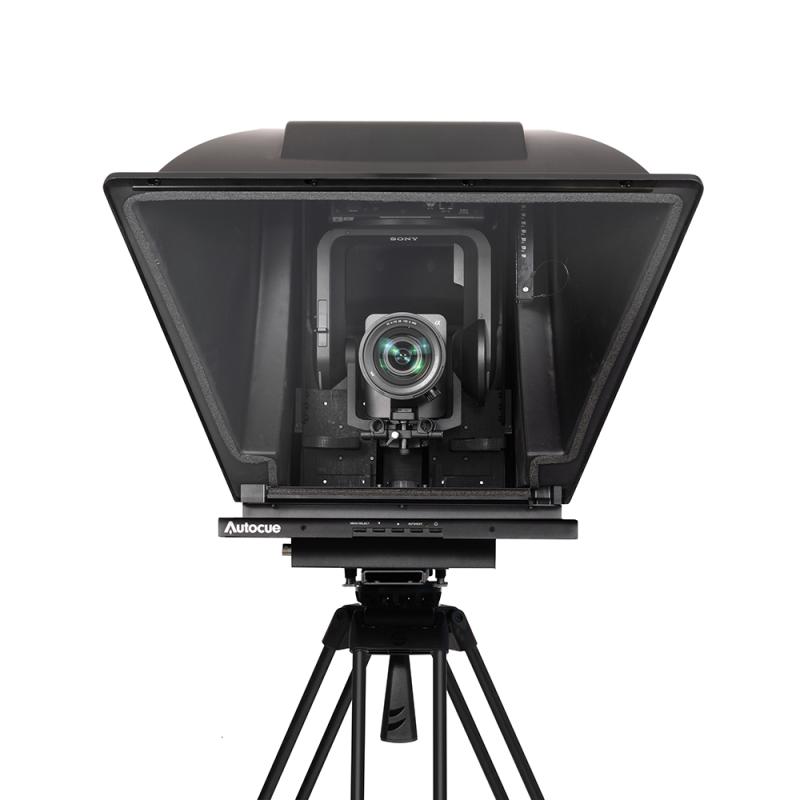

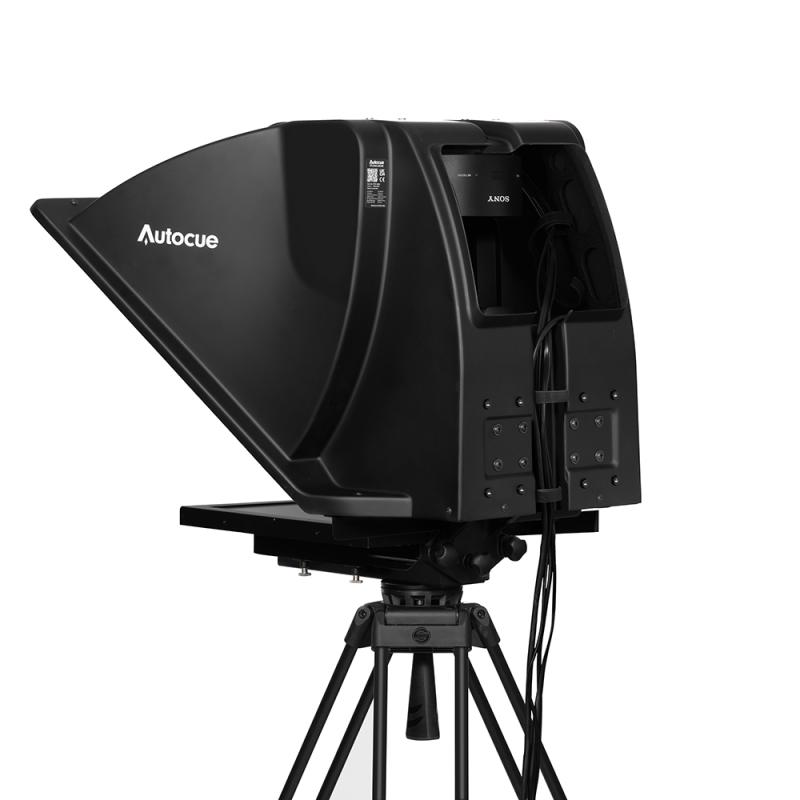

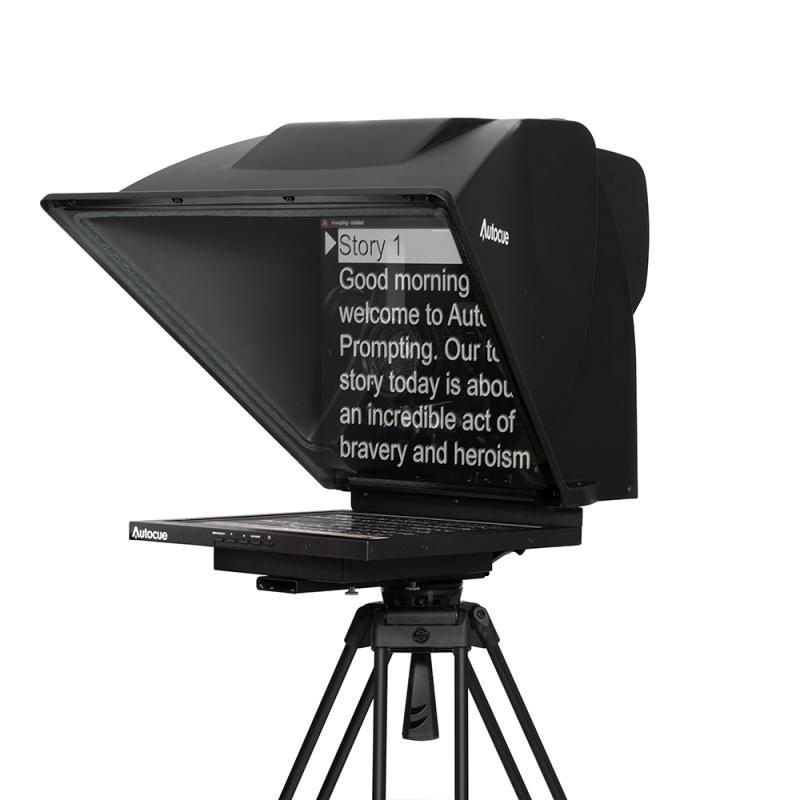

19 Pioneer PTZ Teleprompter

Built around your workflow, the Autocue 19 inch Pioneer PTZ Teleprompter offers a clean, all-in-one solution for PTZ prompting in studios, corporate spaces, and educational facilities. The integrated hood securely houses a wide range of PTZ cameras including the Sony FR7 and Canon N700 making installation simple and keeping your equipment protected.With in-hood calibration, cameras like the FR7 can auto-calibrate without removing the glass just power on and go. The high-brightness 19 inch Pioneer monitor will out-perform any lighting situation to keep your presenter on-script, while internal cable management and PSU housing keep everything looking tidy. VESA mounting points on the top and rear of the hood give you the option to install your prompter on wall or ceiling mounts, while traditional camera support fixing points sit underneath the monitor to make the prompter easy to balance. Whether you're building a new studio or going for an upgrade, this prompter is designed to fit right in.

Key Features

- Integrated PTZ prompter including 19 Pioneer monitor
- In-hood calibration no need to remove camera or glass
- Easy to read high brightness monitor can be used in any light
- Flexible VESA mounting with additional camera support fixings
- Internal cable management and PSU housing for streamlined setup

Technical Specification

Aspect Ratio: 4:3

Aux. Output: 12V DC, 3A max

Brightness: 1500Nits

Camera Mounting: 1/4"- 20 inserts

Connectivity: 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA

Contrast: 1000:1

Hood: Composite, compatible with PTZ cameras

Image Flip: Horizontal & vertical

Input Voltage: 12V DC

Inputs: 3G/HD/SD-SDI, CVBS, HDMI, VGA

Monitor Dimensions: 42 cm x 35.6 cm x 57 mm / 16.54 in x 14.02 in x 2.24 in

Monitor Mounting: VESA100 with additional 3-8"-16 camera support fixings

Monitor Size: 19"

Monitor Weight: 4.4 kg / 9.7 lb

Power Consumption: 35W max

Power Supply: 110-240V AC 50/60Hz input, 12V DC, 5A max. output

Resolution: 1280x1024

Series: Pioneer

System Dimensions: 67.8 cm x 55.6 cm x 61 cm / 26.69 in x 21.89 in x 24.02 in

System Weight: 16.45 kg / 36.27 lb

Warranty: 2 Years

In The Box

19” Pioneer Monitor

PSU

PTZ enclosure hood

Mounting hardware

Beamsplitter glass

HDMI cable, 10M

UK/EU or US IEC power cable
