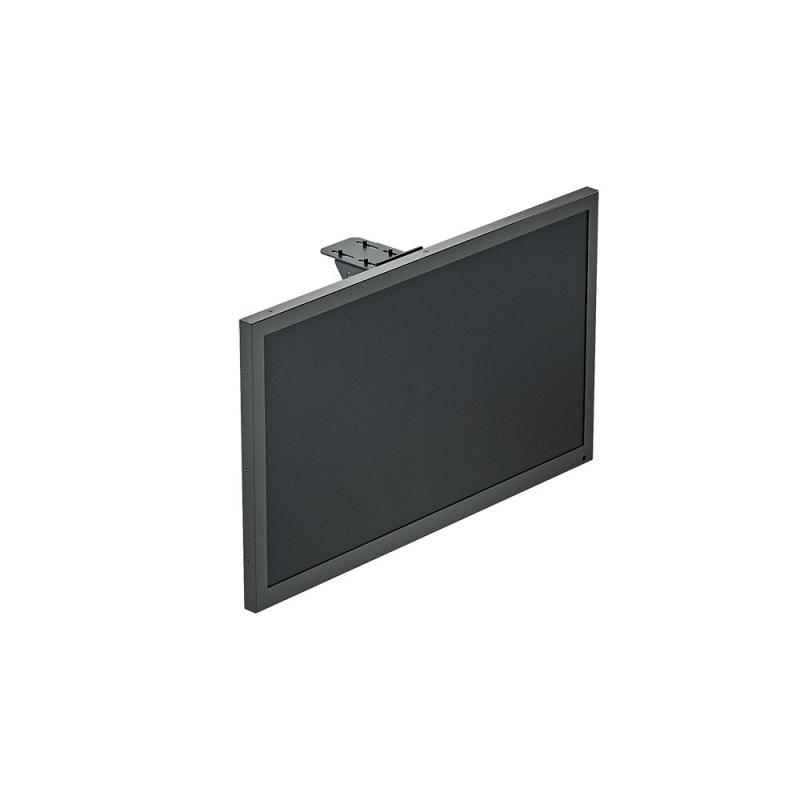

22" Talent monitor and mounting package

With this package you can add a broadcast quality talent monitor underneath the front of your Autocue teleprompter, so that talent can reference the programme output easily as they present to camera.

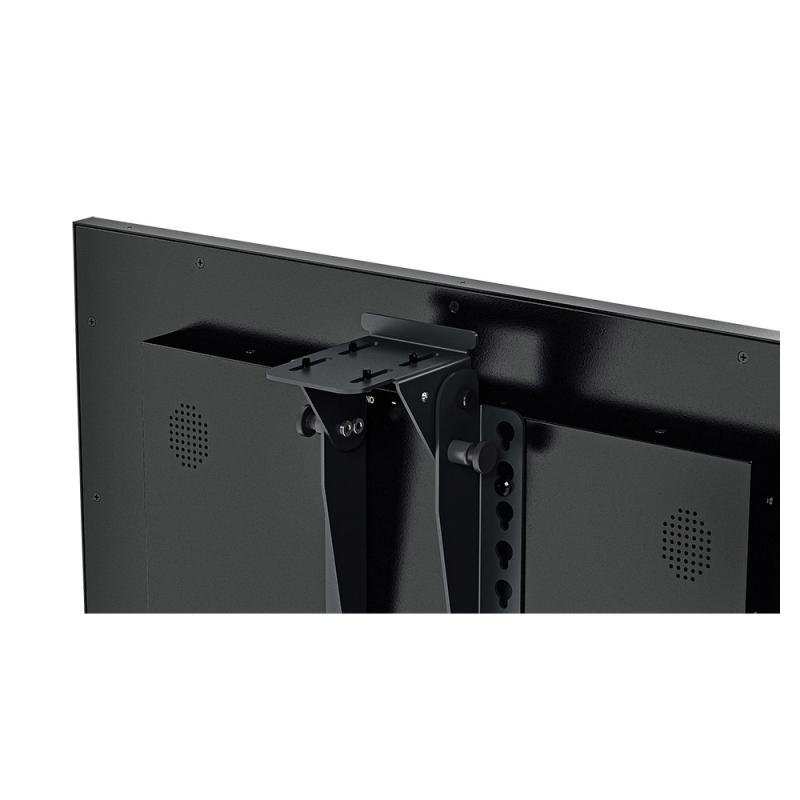

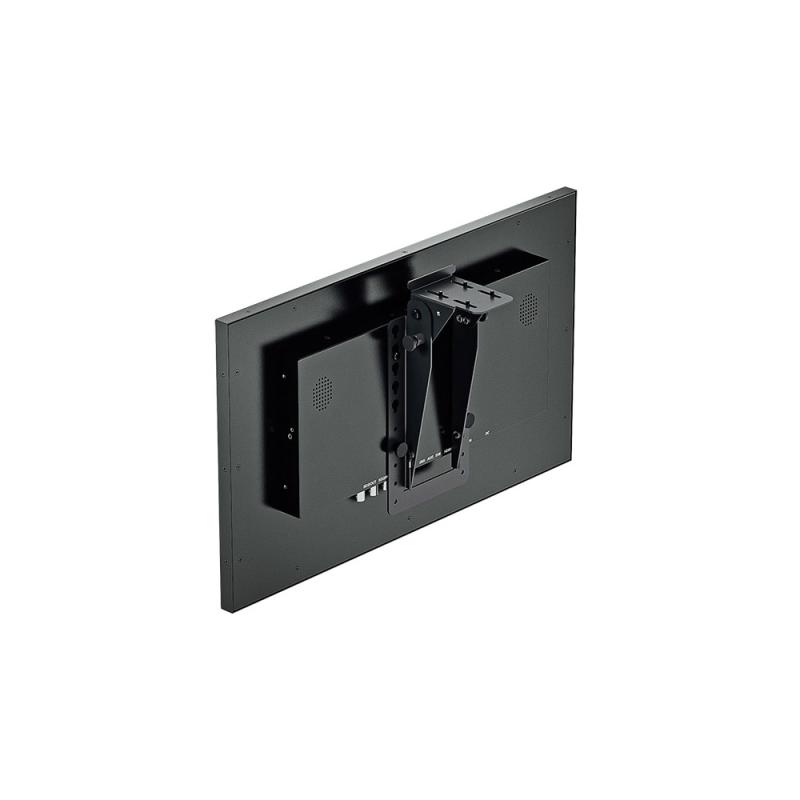

Included with the 22" monitor is a VESA mount that can be fitted underneath the monitor of any Autocue Explorer or Pioneer teleprompter, and a 5kg counterweight to fit behind the camera mounting to offset the extra load at the front of the teleprompter. Note: if youre planning to add this package to an Explorer Teleprompter youll need to purchase 19mm rods (P7011-1017) to mount the counterweight at the back of the camera carriage.

Technical specifications

Aspect Ratio: 16:9

Brightness: 250Nits

Connectivity: 3G/HD/SDI (2x input and 2x output), HDMI (input and output), VGA, CVBS

Contrast: 3000:1

Image Flip: Horizontal & vertical

Inputs: 3G/HD/SD-SDI, CVBS, HDMI, VGA

Monitor Dimensions: 51.1 cm x 30.9 cm x 43 mm / 20.12 in x 12.17 in x 1.69 in

Monitor Size: 22"

Monitor Weight: 4.295 kg / 9.47 lb

Power Consumption: 26.4W max

Power Input: 9-28V DC

Power Supply: 110-240V AC 50/60Hz input, 12V DC, 5A max. output

Resolution: 1920 x 1080

Warranty: 2 Years

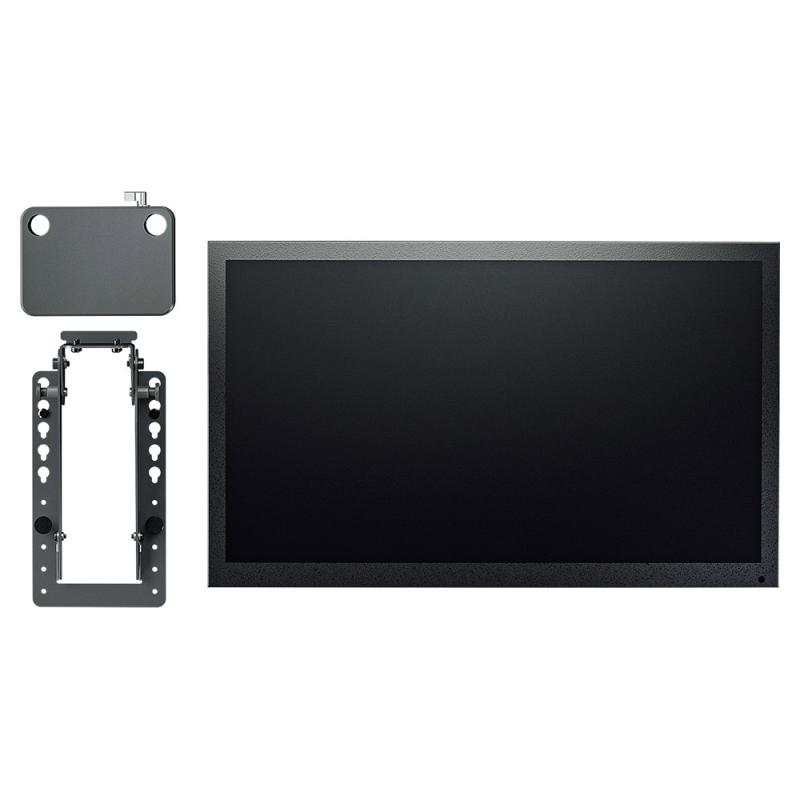

In The Box

Monitor

PSU

HDMI cable, 10m

UK/EU or US IEC power cable

Monitor mounting

5kg counterweight
