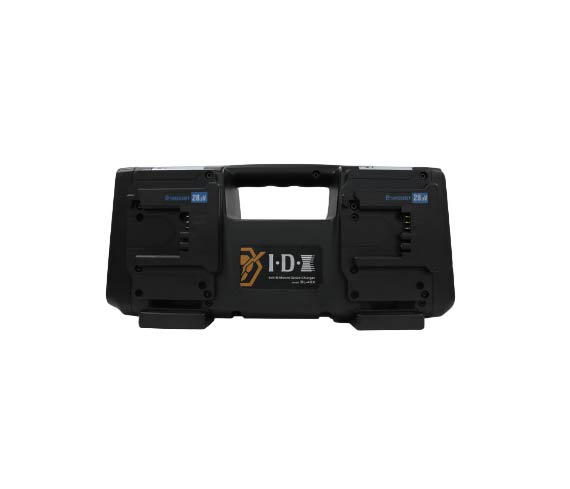

4 Ch. Simultaneous B-Mount Charger for HV-160B & HV-320B

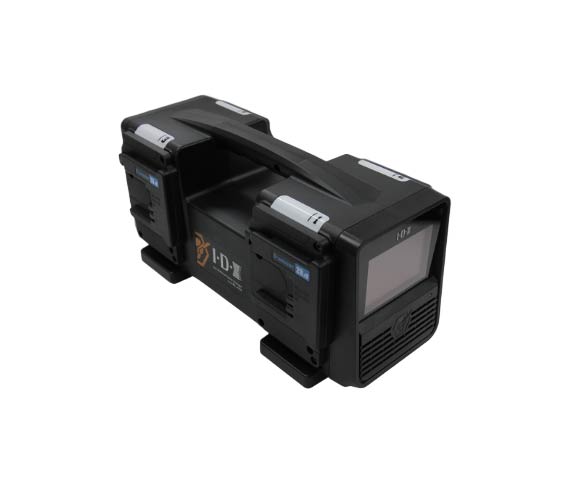

The BL-4X is a dedicated charger for the HV-160B and HV-320B B-Mount batteries.  It can charge a 28V battery at high speed and four channels simultaneously at up to 3A and 100W.  The large on-board LCD monitor shows battery charging status for each channel and the large LEDs on the top panel, allow the charging status to be seen briefly from a distance.

Technical specifications

Applicable Battery: HV-160B, HV-320B

AC Adapter Input Voltage: AC 100-240V 50/60Hz

Output Voltage: 33.6V/3A (max) x 4ch

Charging Time: HV-160B: 140 min, HV-320B: 260 min

LED Indicator: Red On: 0-80%, Green Flashing: 81-99%, Green On: 100% fully charged, Red Flashing: Error

Description: 4ch: Simultaneous

Weight 2.43 kg
