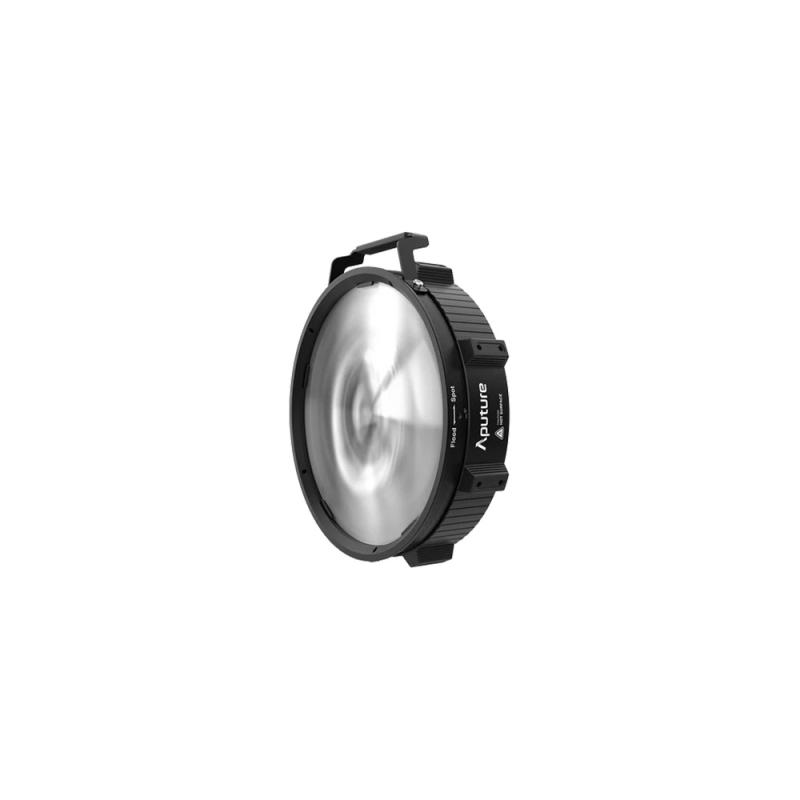

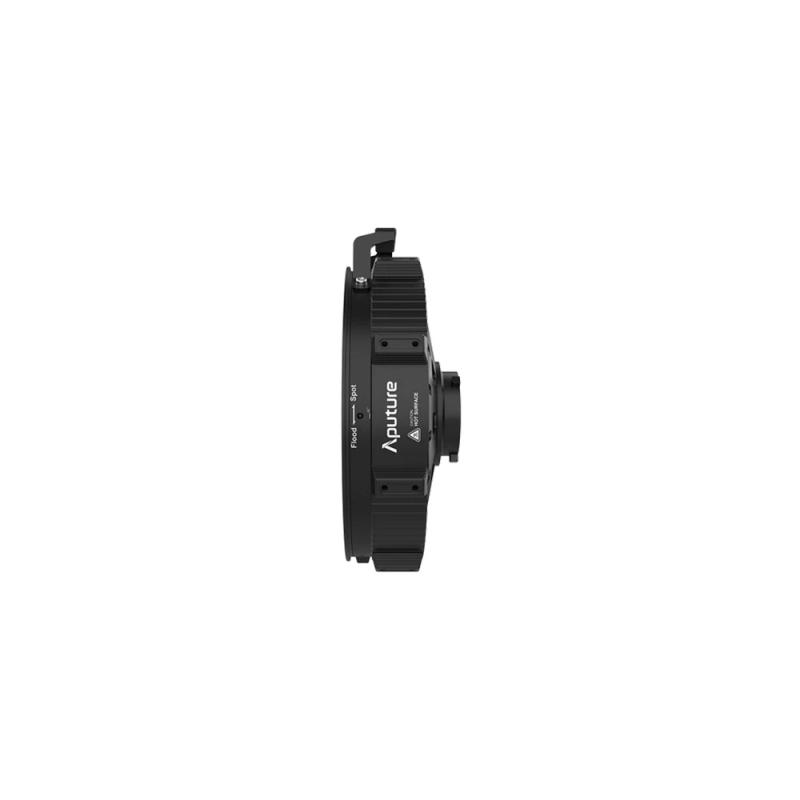

Aputure CF12 Compact Fresnel

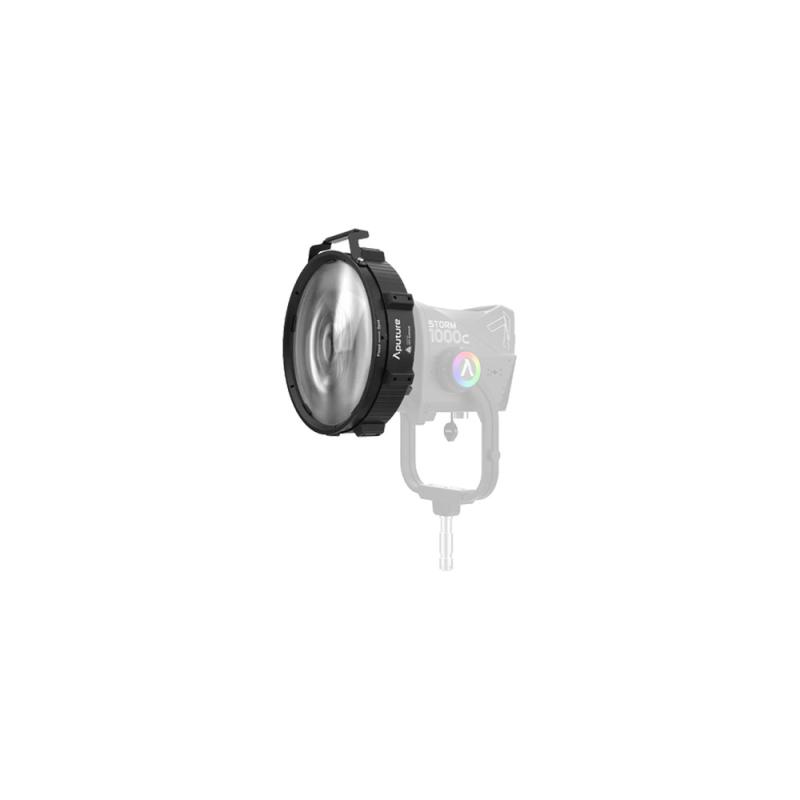

The CF12 Fresnel is a compact fresnel with a 12 inch diameter lens and Bowens Mount, optimized for use with the STORM 1000c and 1200x.

Brighter by Design The CF12 Fresnel intensifies the STORM 1000c output by up to 9 times (5600K, full intensity at 1 meter equals 58,500 lux) and the STORM 1200x output by up to 9.9 times (5600K, full intensity at 1 meter equals 84,400 lux). The optics provide an even output at all beam angles, with a smooth center-to-edge falloff.

Wide Beam Range, Compact Design The new CF12 Fresnel offers a beam range of 15º to 45º while maintaining a compact profile. It uses a dual-expanding focusing system with multiple lens elements to drastically reduce its size and weight without compromising optical performance. Its compact design is perfect for small, well-balanced setups on the STORM 1000c and STORM 1200x. The CF12 Fresnel is also compatible with the LS 1200d Pro, LS 600c Pro, and LS 600c Pro II.

Technical specifications

Beam Angle:

Full Spot 15°

Full Flood 45°

Dimensions:

CF12 Fresnel 38.3 x 37.0 x 12.8cm / 15.1 x 14.6 x 5.0in

Carrying Case 49.0 x 22.0 x 45.0cm / 19.3 x 8.7 x 17.7in

Weight:

CF12 Fresnel: 4.72kg / 10.41lbs

Carrying Case (Empty): 2.65kg / 5.84lbs

Carrying Case (Fully Loaded): 8.50 kg / 18.74 lbs

In the box

1x CF12 Fresnel

1x Carrying Case
