Aputure Nova II 1x1 (No Case) (EU)

Incredibly Accurate and Natural White Light

The NOVA II 1x1 has a wide range of tunable white light with the best SSI performance to emulate tungsten, daylight, and everything in between. The BLAIR-CG light engine offers a tunable white range from 1,800-20,000K with full 100% MITC +/- Green adjustment. The Indigo emitters activate natural fluorescence for lifelike colors, and a new Extended Red emitter improves skin tone reproduction.

Colors Never Before Achieved in a Panel

The BLAIR-CG light engine in the NOVA II 1x1 covers the greatest range of saturated colors of any panel light. The expanded BLAIR-CG light engine covers more than 90% of the Rec.2020 color space. There are four blues and two reds, including Extended Red, for increased gamut and saturation. Using x,y and HSIC+ modes, dial in precise colors to match products, create backdrops, and even dial in perfect greenscreen or bluescreen keys to match your camera’s sensor.

The Brightest Light, Direct or Diffused

The NOVA II 1x1 delivers a direct 35° beam which remains bright when diffused, providing increased versatility.

The secret to this performance is a unique three-part “focus-then-blend” optical formula. First, focusing TIR lenses are placed over LED emitter clusters. Then, these clusters are kept small and packed at a high density on the panel for increased output. Lastly, these lensed emitter clusters are arranged in a complex neutralizing pattern to produce bright, even light with no visible color fringing on subjects.

Technical specifications

Color Specifications

CCT Range

1,800K – 20,000K

CRI

≥95

TLCI

≥95

SSI (Tungsten)

90

SSI (D56)

86

TM-30 RF (Average)

95

TM-30 RG (Average)

100

Optical Specifications

LED Chipset

BLAIR-CG

Native Beam Angle

35°

Included Flat Diffuser Beam Angle

95°

Power Specifications

Max Power Consumption

650W

Max Power Output

500W

AC Operating Voltage

100V ~ 240V / 50-60 Hz

Environmental Specifications

Weather Resistance Rating

IP65

Operating Temperature

-20ºC ~ 50ºC / -4ºF ~ 122ºF

Storage Temperature

-40ºC ~ 80ºC / -40ºF ~ 176ºF

Cooling Method

Active (onboard fans)

Lamp Head Fan Noise Levels (at 1m) Smart Mode

Variable

Lamp Head Fan Noise Levels (at 1m) High Speed Mode

40 dBa

Lamp Head Fan Noise Levels (at 1m) Medium Speed Mode

35 dBa

Lamp Head Fan Noise Levels (at 1m) Silent Mode

0 dBa

Control and Firmware

Control Methods

On-board, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM

Control Ports

1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking RJ45

Firmware Upgradeable

Sidus Link, Sidus Link Pro, USB-A

Wireless Range (Bluetooth & CRMX)

≤100m / ≤328.1ft

Dimensions

Lamp Head (Without Yoke)

39.1 x 40.8 x 14.3 cm

15.4 x 16.0 x 5.6 in

Lamp Head (With Yoke)

49.2 x 57.9 x 15.6 cm

19.4 x 22.8 x 6.1 in

Flat Diffuser

38.5 x 39.5 x 3.9 cm

15.2 x 15.5 x 1.6 in

Weight

Lamp Head (Without Yoke): 9.55 kg / 21.05 Ibs

Removable Yoke with TV-MP Pin: 1.80 kg / 3.97 Ibs

Flat Diffuser: 1.35 kg / 2.98 Ibs

AC Power Cable (6m): 0.80 Kg / 1.76 lbs

Rolling Hard Case (Optional) - Empty: 11.05 kg / 24.36 lbs

Rolling Hard Case (Optional) - Fully Loaded: 23.50 kg / 51.80 lbs

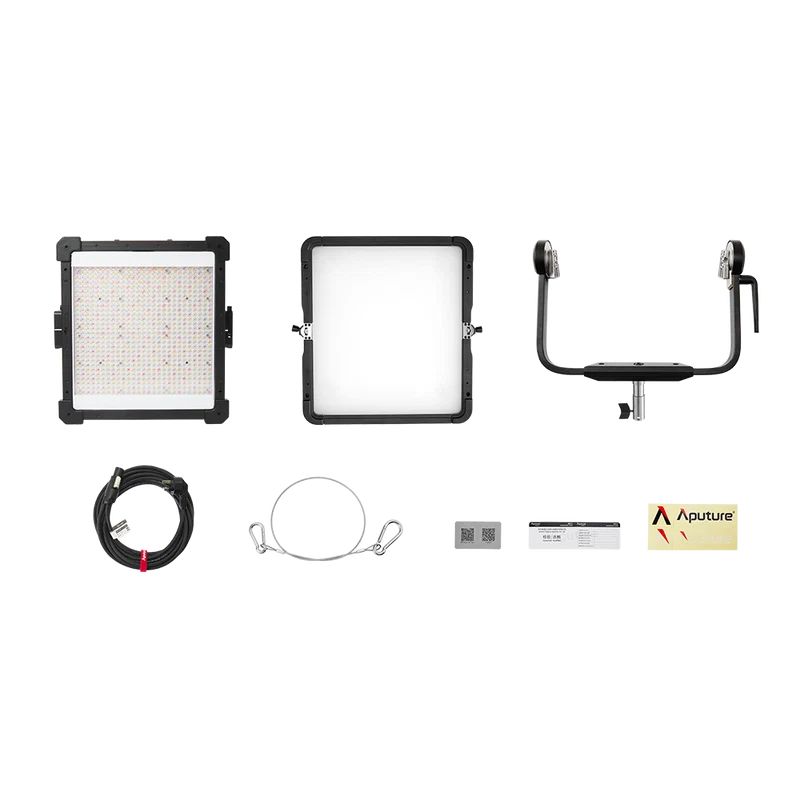

Included items

NOVA II 1x1 Lamp Head

NOVA 1x1 Removable Yoke with TV-MP Pin

NOVA 1x1 Flat Diffuser

AC Power Cable (6m)

Safety Chain (50cm)
