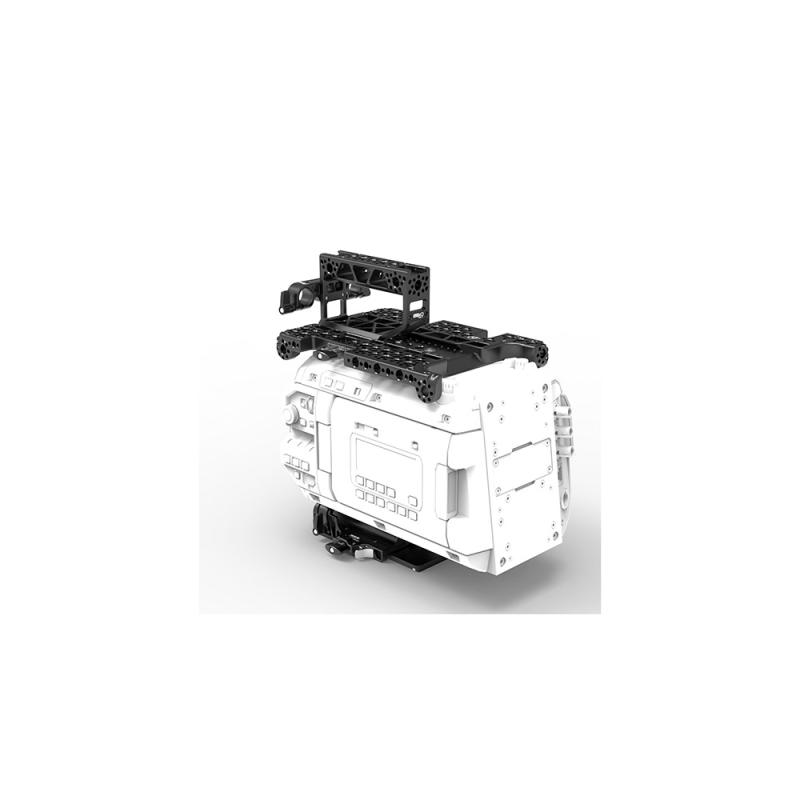

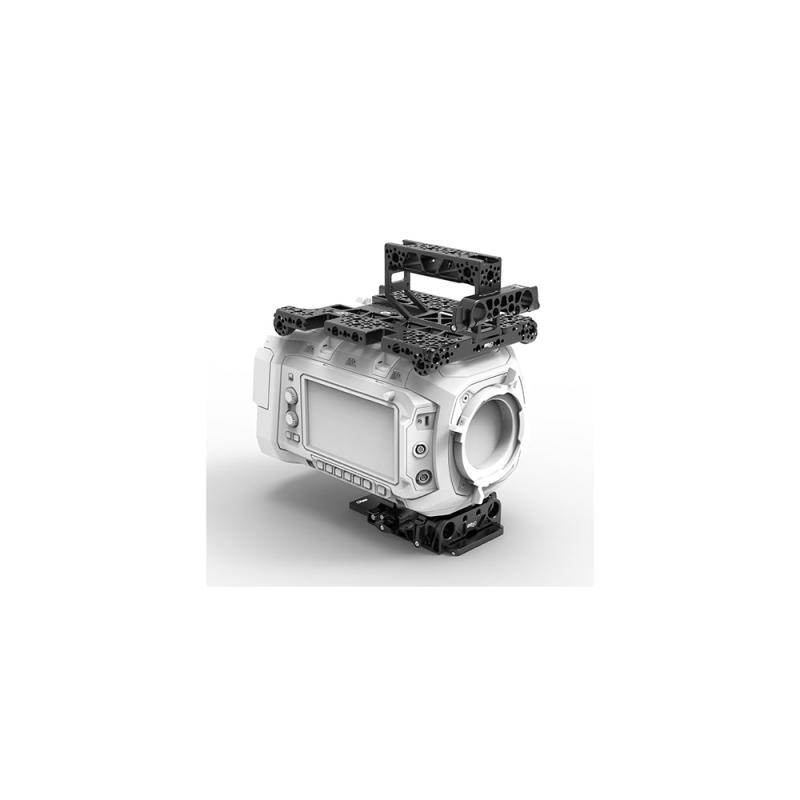

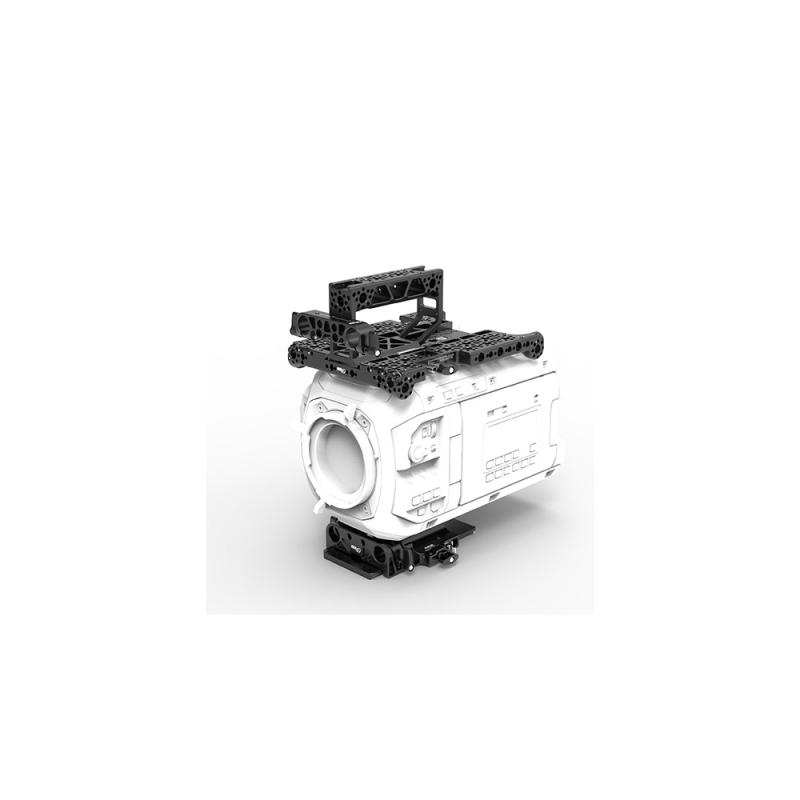

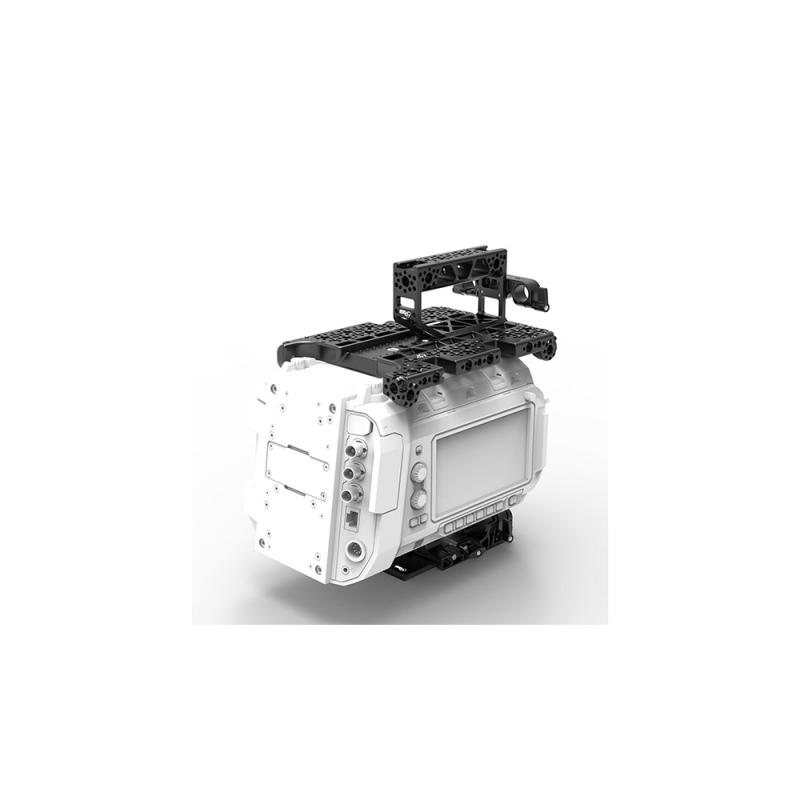

Base Kit for Blackmagic URSA Cine LF

Base Kit for Blackmagic URSA Cine LF is an accessory kit that includes:

Top Plate (Blackmagic URSA Cine LF)
Provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and ventilation holes for the URSA fan.

ARCA Top Handle
Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.

Rod Bracket (15mm LW)
Attaches to the front of the Top Handle to provide 15mm LW rod support.

Baseline 15mm LW (Blackmagic URSA Cine LF)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.

Technical specifications

Compatibility: Blackmagic Design URSA Cine LF

Mounting: Top: Multiple 3/8"-16 with Anti-Twist Divots

Top: Multiple 1/4"-20 with Anti-Twist Divots

Side: Multiple 3/8"-16 with Anti-Twist Divots

Front: Multiple M4

Color: Black

Dimensions: 19.1 x 14.4 x 2.39 cm / 19.1 x 14.4 x 2.39 cm

Package Weight: 0.374 kg

Box Dimensions (LxWxH): 20.19 x 16.51 x 2.79 cm

Included items

MID49 Top Plate for Blackmagic URSA Cine LF

MID49 Arca Top Handle

MID49 15mm LWS Rod Bracket

MID49 Baseline 15mm LW Baseplate for Select Sony & Blackmagic Cameras

MID49 Baseline Core 15mm LWS Baseplate (0" Platform Height)

MID49 Baseline Arca Dovetail (0.47" Height)

MID49 Baseline ARRI-Compatible Dovetail Mounting Plate
