Blackmagic Pocket Cinema 4K/6K Cage with 15mm rod system
Watch this product and we will notify you once it is back in stock.
Blackmagic Pocket Cinema 4K/6K Cage with 15mm rod system
Blackmagic Pocket Cinema 4K/6K Cage with 15mm rod system

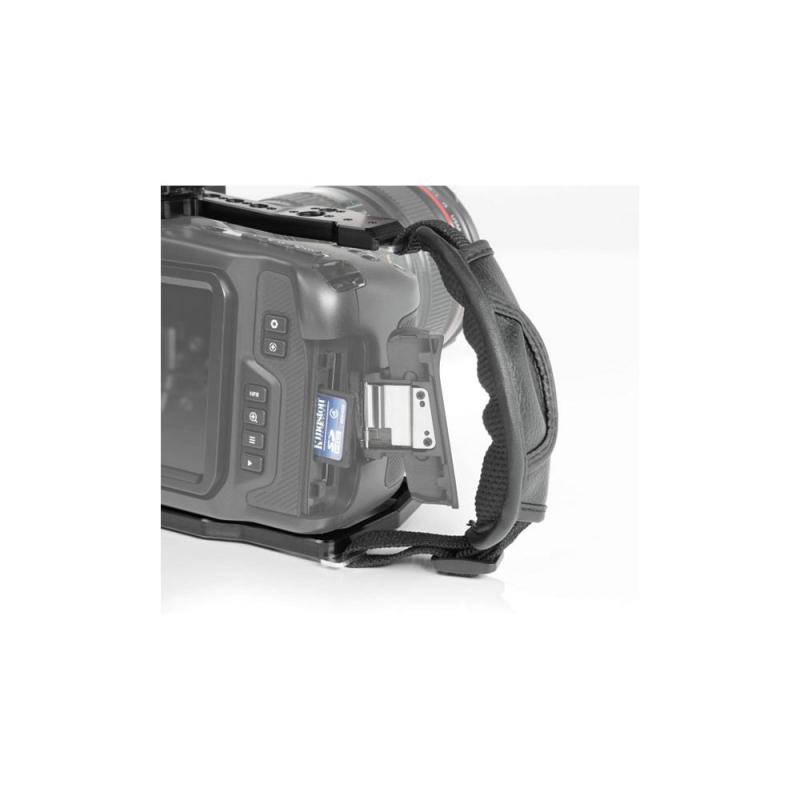

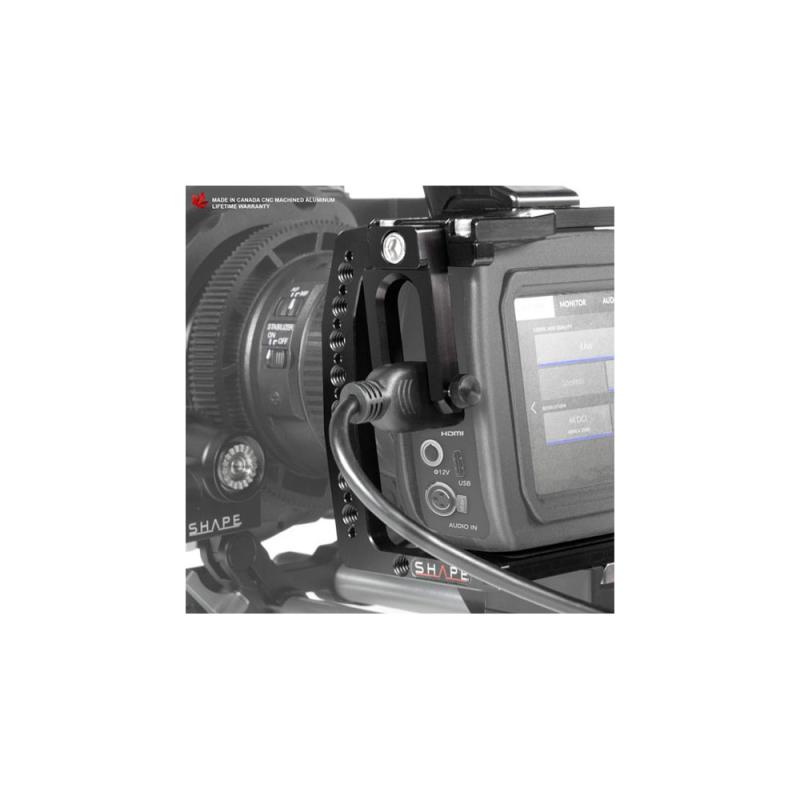

The Camera Cage for Blackmagic Cinema Camera 4K from SHAPE provides a formfitting base for attaching accessories, handles, or grips to your BMCC 4K. All controls, ports, and slots remain accessible when the cage is mounted to your Blackmagic Cinema Camera 4K. It gives you easy access to the memory card, the battery door, the lens release button and all other controls and outputs. The cage is designed with one cold shoe at the top to mount accessories like a microphone, magic arm (RPB2AHS), LED or Top Handle (DTH1). There is also multiple 1/4?-20, 3/8?-16 threaded holes with ARRI anti-twist threads to strongly secure the camera and accessories in place. Constructed from lightweight yet sturdy CNC-machined aluminum, the cage includes a left-side clamp to prevent your HDMI cable from accidentally disconnecting. A padded hand strap adds comfort when grasping the right side of the camera.
Technical specifications
Support Type: Cage, Handheld Support, Rod Support System
Grip Type: Topside Handgrip
Camera Compatibility: Blackmagic Pocket Cinema Camera 4K
Rod Standard: 15 mm LWS / 60 mm Spacing
Included Rods: 2x 10" / 25.4 cm 15 mm Aluminum Rod
Battery Plate Type: No
Camera Mounting: 1/4"-20 Male Screw
Tripod Mounting: 1/4"-20 Female Thread, 3/8"-16 Female Thread

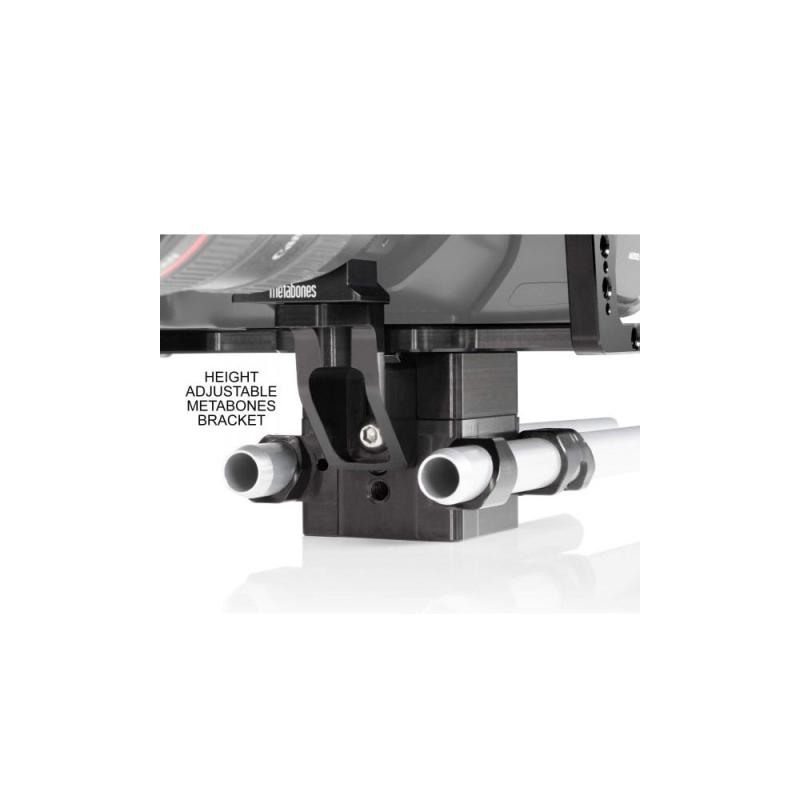

Rod Ports: Baseplate: 2x 15 mm Rod Port
Shoe Mounting: Top Handle, Top: 2x Cold Shoe
Cage, Top: 1x Cold Shoe
Rosettes: No
Cable Clamp: 1x HDMI Clamp
Materials: Aluminum, Wood
Dimensions: 11 x 10.4 x 6.3" / 27.8 x 26.3 x 16 cm
Weight: 2.8 lb / 1.3 kg
Package Weight: 3.165 lb
Box Dimensions (LxWxH): 19.1 x 14.5 x 10.4"
-
Accessory Mounting
Top Handle, Top
- 3x Anti-Twist 1/4"-20 Female Thread
-
8x Anti-Twist 1/4"-20 Female Thread
Multiple 1/4"-20 Female Thread
2x 3/8"-16 Female Thread - 13x 1/4"-20 Female Thread
3x 3/8"-16 Female Thread - 8x Anti-Twist 1/4"-20 Female Thread
1x 1/4"-20 Female Thread - 2x 1/4"-20 Female Thread
- 3x 1/4"-20 Female Thread
2x 3/8"-16 Female Thread
Included items

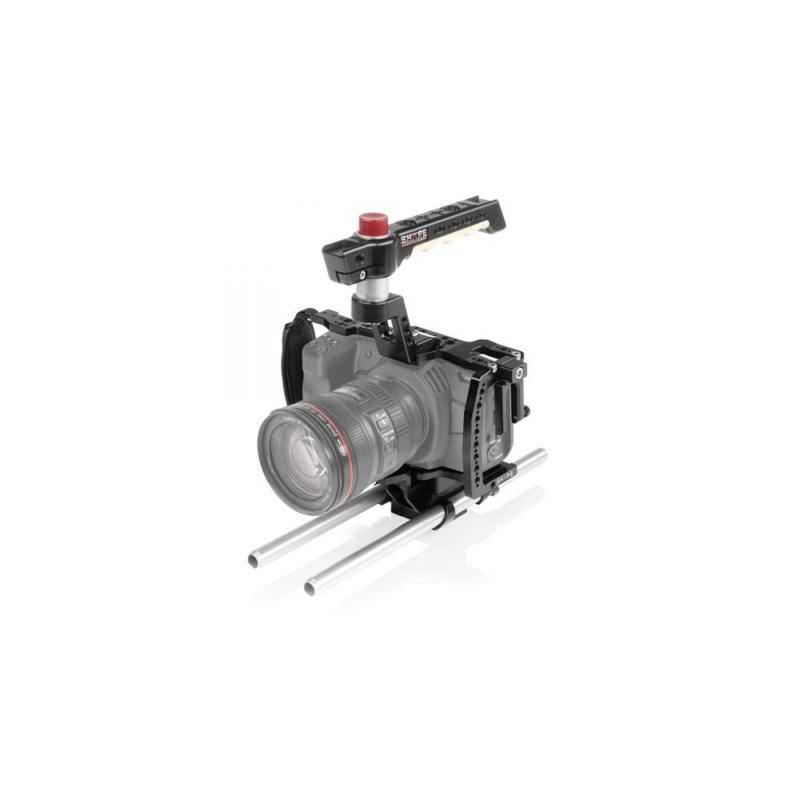

SHAPE Camera Cage with 15mm Rod System for Blackmagic Pocket Cinema 6K & 4K
SHAPE Cage for Blackmagic Pocket Cinema Camera 6K and 4K
Wooden Top Handle with Push-Button
Quick Release Baseplate
2 x SHAPE 15mm Aluminum Rods (Pair, 10")
Limited Lifetime Manufacturer Warranty
