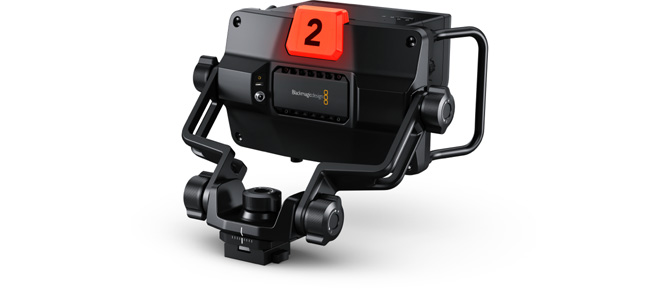

Blackmagic URSA Cine Studio Viewfinder

Blackmagic URSA Cine Studio Viewfinder is a large 7″ HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.

Technical specifications

Panel Type: TFT LCD

Display Size: 7.0" / 17.8 cm

Screen Resolution: 1920 x 1200

Image Controls:False Color, Focus Assist, Focus Peaking, Screen Markers

Inputs/Outputs: 1x USB-C Video Input, 1x Barrel Power Input

Panel Type: TFT LCD

Display Size: 7.0" / 17.8 cm

Screen Resolution: 1920 x 1200

Aspect Ratio: 16:10

Touchscreen: Yes

Maximum Brightness: 2000 nits / cd/m2

Pixels Per Inch (ppi): 323 ppi

Image Controls: False Color, Focus Assist, Focus Peaking, Screen Markers

Inputs/Outputs: 1x USB-C Video Input, 1x Barrel Power Input

Video Format:

                 USB (10-Bit 4:2:2 YUV)

                 1080p: 60/59.94/50/30/29.97/25/24/23.98

                 1080i: 60/59.94/50

                 720p: 60/59.94/50

Input Power: 12 VDC

Operating Conditions: 32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions: -4 to 140°F / -20 to 60°C up to 90% Humidity

Tripod/Accessory Mounting: Bottom/Bracket: 1x V-Lock

Dimensions: 11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket)

Weight: 5.27 lb / 2.39 kg

Included items

Blackmagic Design URSA Cine Studio Viewfinder

Sun Hood

Mounting Plate

Limited 1-Year Manufacturer Warranty
