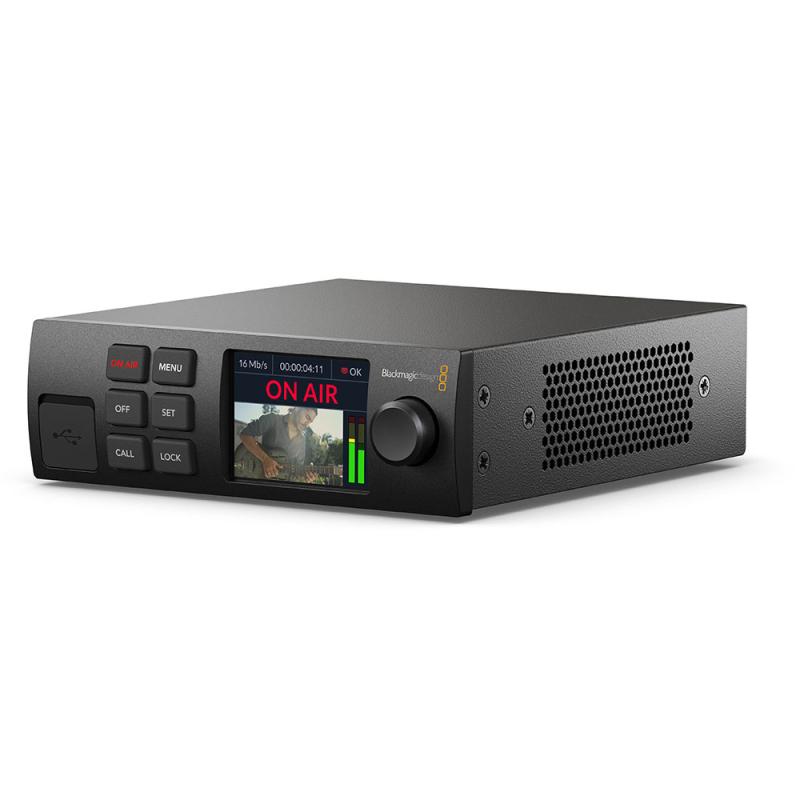

Blackmagic Web Presenter HD

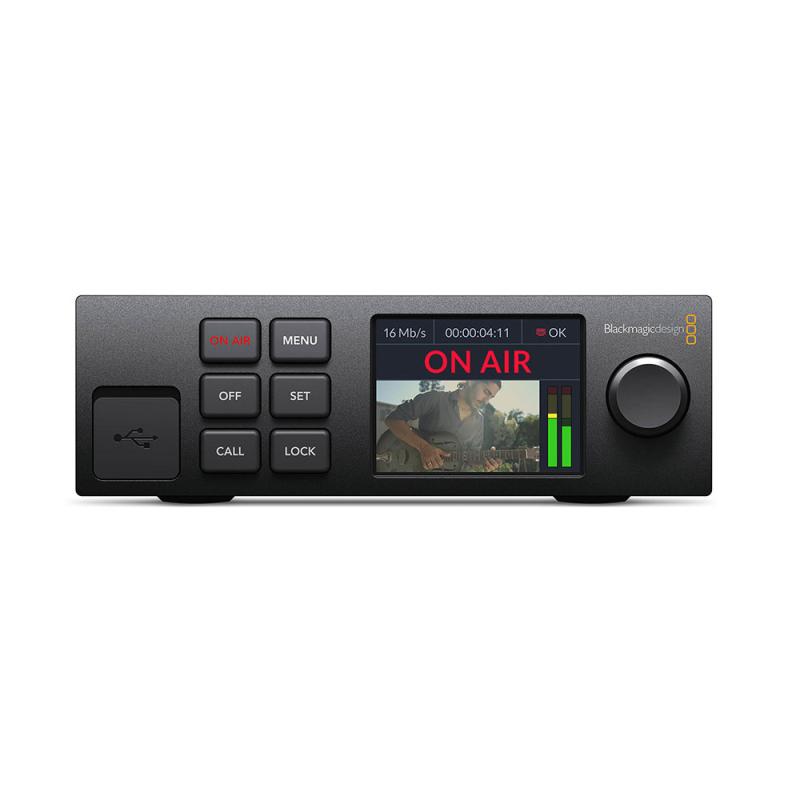

Self contained streaming solution with broadcast H.264 encoder, direct streaming to services such as YouTube, USB webcam, 12G‑SDI input with standards conversion, front panel with LCD, and more.

Before ordering, always check Blackmagic support center for system requirements.

Technical specifications

Embedded Audio: SDI

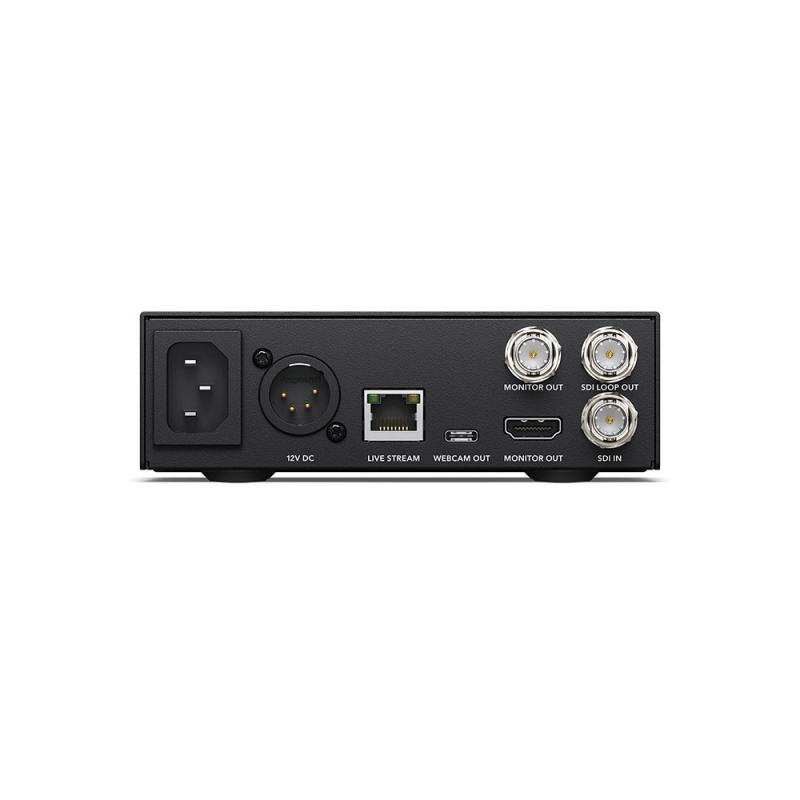

Transmission I/O: 1x BNC (12G-SDI) Input, 1x BNC (12G-SDI) Loop Output, 1x BNC (12G-SDI) Output, 1x HDMI Output

Embedded Audio: SDI

Other I/O: 1x RJ45 (Gigabit Ethernet) Input/Output, 1x USB-C Input

Standards

Transport Protocols: RTMP

Video Encoding/Decoding: via H.264: 1280 x 720 to 1920 x 1080 at 60.00/59.94/50/30.00/29.97/25/24.00/23.98 fps

Simultaneous Streams: 1 Streams

Compatible Services: Facebook Live, Livestream, Skype, Twitch, YouTube Live

Power I/O: 1x XLR 4-Pin (12 VDC) Input, 1x NEMA 5-15R Input

Power Consumption: Device: 100 to 240 VAC (21 W)

Display: Yes: LCD

Operating Conditions: 32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions: -4 to 113°F / -20 to 45°C

Dimensions: 6.9 x 5.5 x 1.8" / 17.5 x 14.0 x 4.5 cm

Weight: 1.66 lb / 0.75 kg

Package Weight: 2.15 lb

Box Dimensions (LxWxH): 10.5 x 7 x 2.6"

Included items

Blackmagic Design Web Presenter HD

Limited 1-Year Manufacturer Warranty
