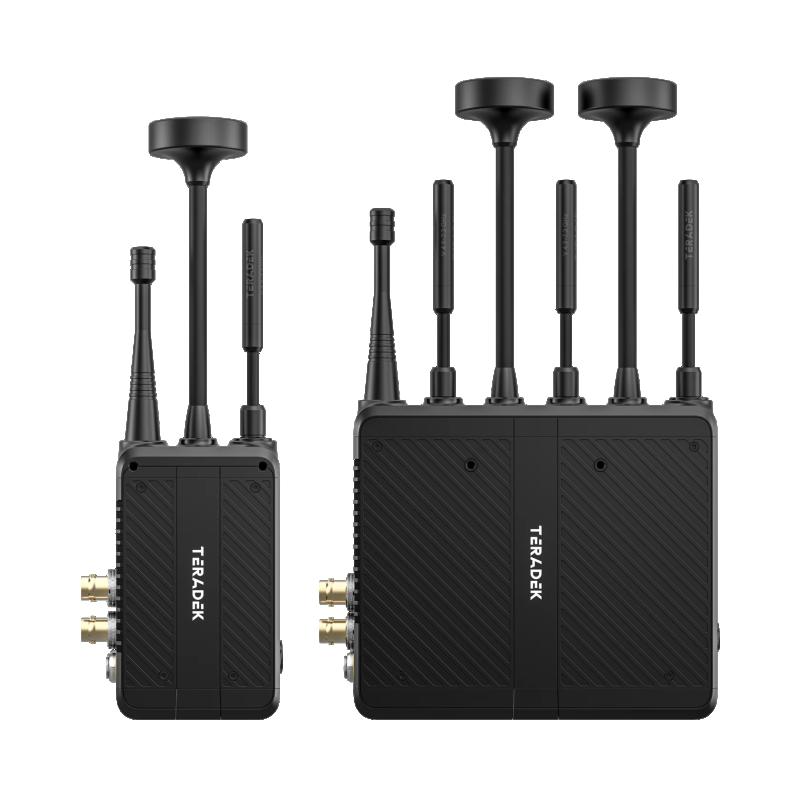

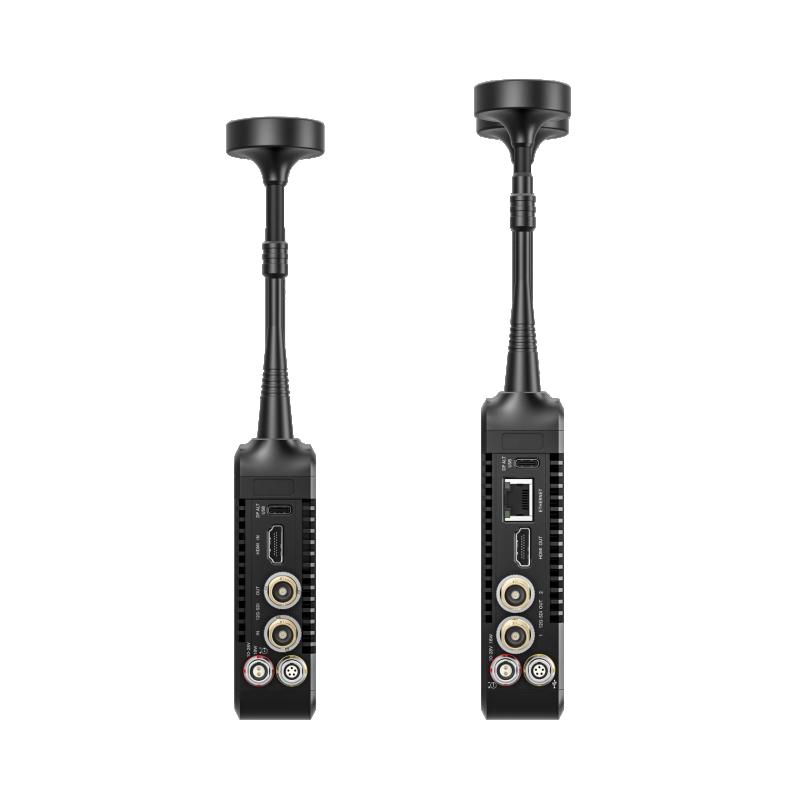

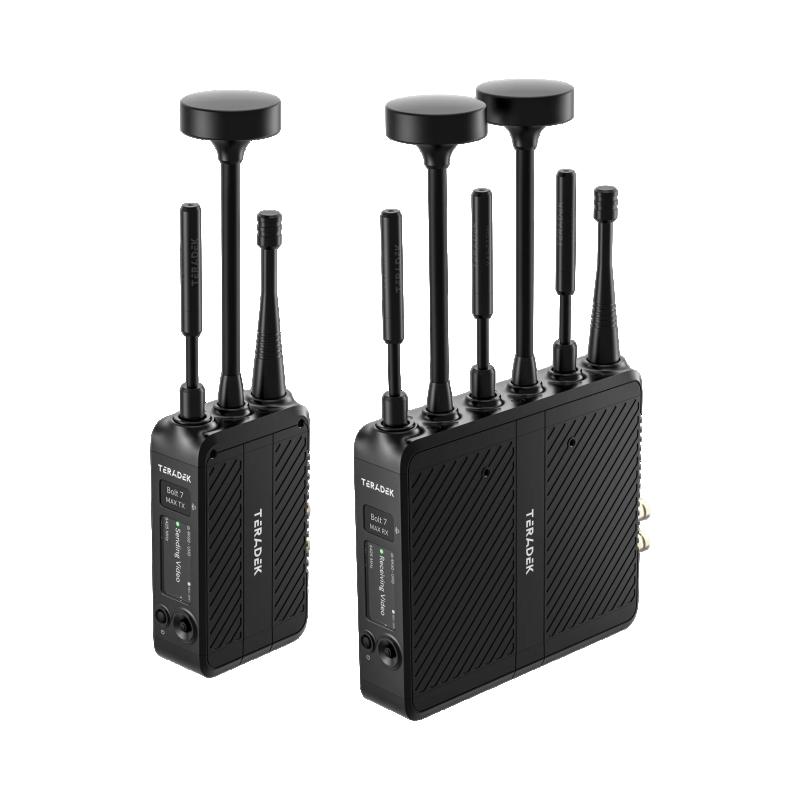

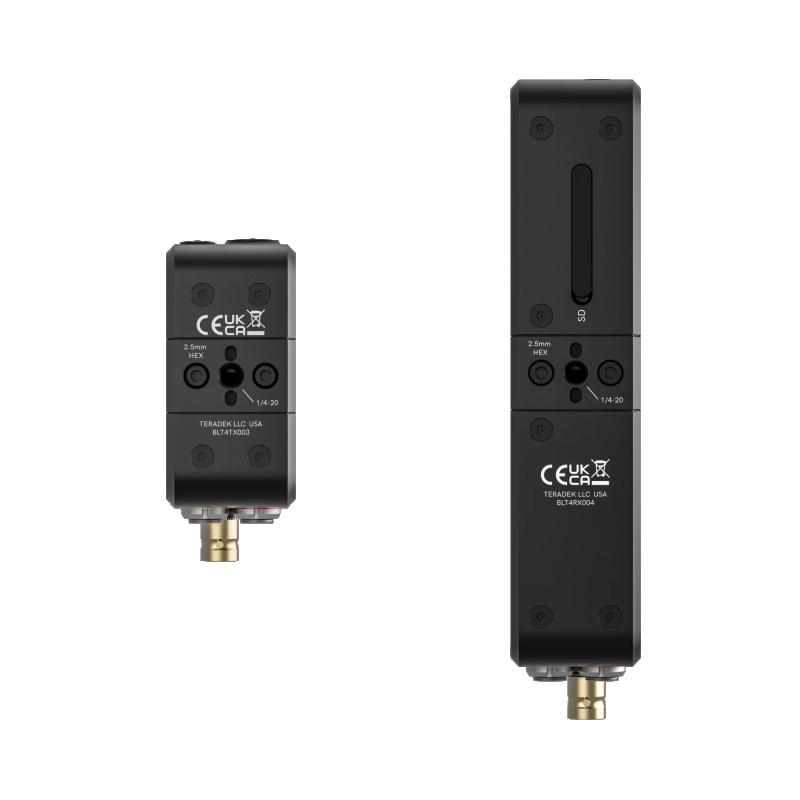

Bolt 7 Set MAX TX/RX

Bolt 7 is the next evolution in our zero-delay wireless ecosystem. Designed for cinema and live production professionals, Bolt 7 delivers 4K HDR wireless video while introducing an entirely new way to move production-critical data across set.

Available in 750ft (228m), 1,500ft (450m), and MAX (up to 5000ft/1.5km) models, Bolt 7 combines zero-delay 12G-SDI and HDMI wireless video with a dedicated 900 MHz data channel that enables wireless camera control, monitor control, color workflows, Ethernet transport, and more—all through a single integrated system. By replacing multiple cables and standalone devices, Bolt 7 simplifies production workflows while reducing setup time and on-set complexity.

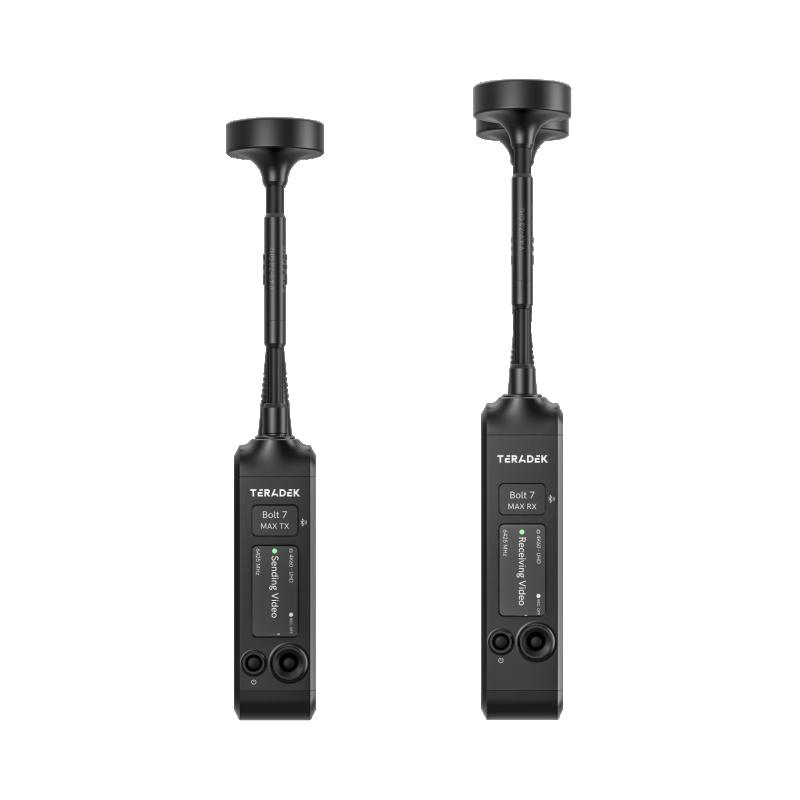

A redesigned compact chassis makes Bolt 7 easier to mount on modern camera builds, while a new full-color OLED display, streamlined pairing options, and improved control through the Bolt App make deployment faster than ever. Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.

Support for DisplayPort Alt Mode over USB-C also enables emerging workflows with compatible cameras using a single cable for video and communications.

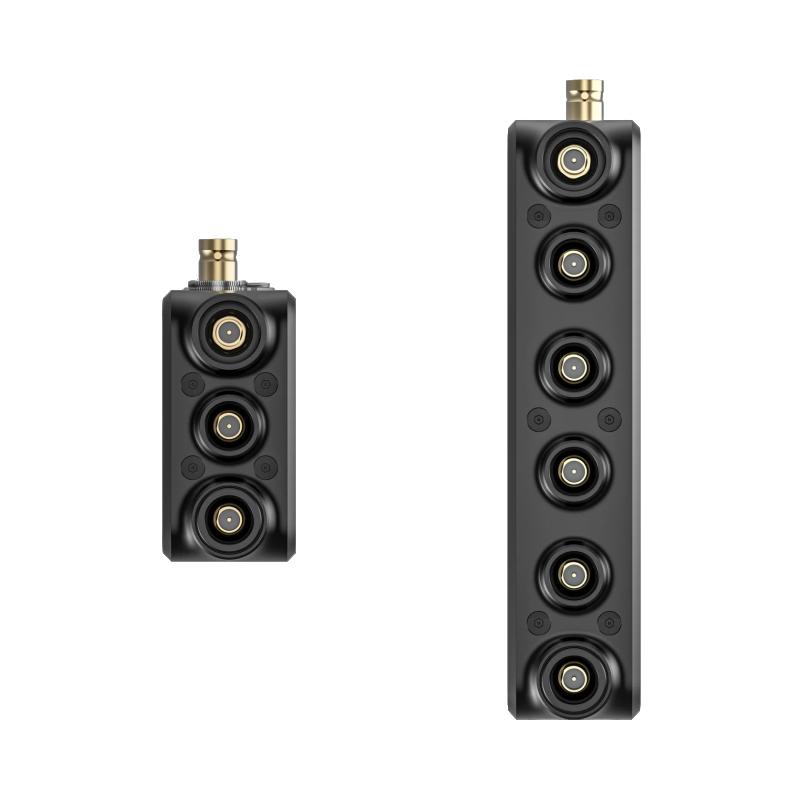

MAX Deluxe options include two Gold Mount, Gold Mount Plus or V-Mount Battery Cradles.

Whether you're shooting feature films, broadcast sports, live events, or commercial productions, Bolt 7 provides the reliability, image quality, and workflow flexibility professionals have come to expect from Teradek.

For technical specifications: https://teradek.com/products/b...

Included items

4 x Antenna 2dBi Flex V 4.9-7.3Ghz RP-SMA

3 x Antenna 2dBi Flexible H Mushroom V4.9-7.3Ghz RP-SMA

2 x Antenna 865-926 MHz SMA

2 x 2pin Conn. to PowerTap - 18in Cable

1 x PSU 2pin Conn. to 36W AC Adapter (Int) - 6ft Cable

2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm

1 x DP ALT Mode USB-C Straight to USB-C Straight Cable, 36in

1 x 5 pin Lemo to USB-C - 36in Cable

1 x Wooden Camera - Universal Ultra Arm Mini (Combo 1/4-20 & 3/8-16)

1 x Teradek Case Large - Bolt 7 TX/ 2MAX RX
