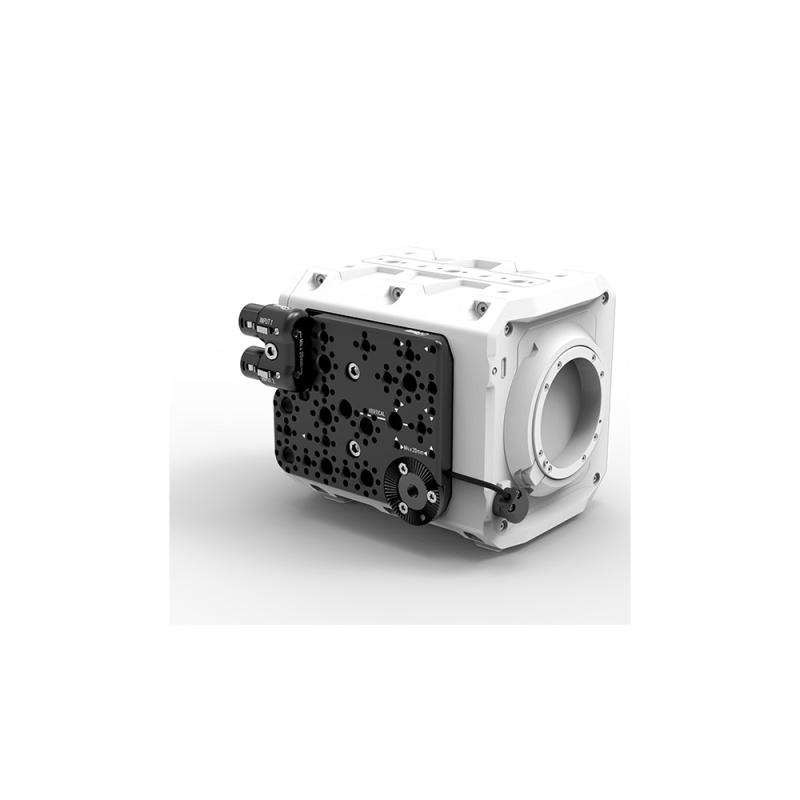

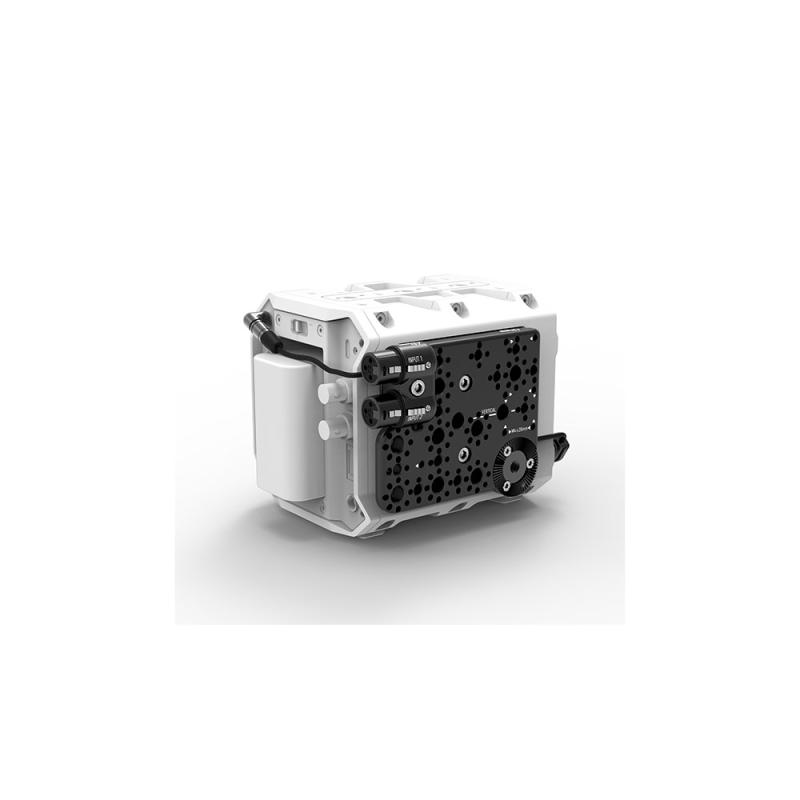

Breakout Box and Side Plate Bundle for Blackmagic PYXIS

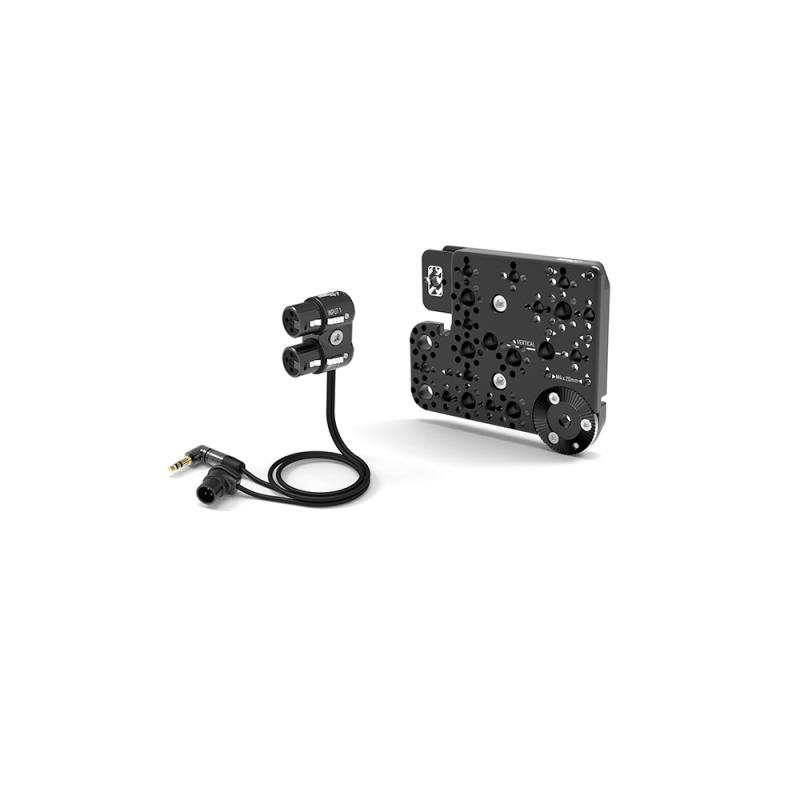

Breakout Box and Side Plate Bundle for Blackmagic PYXIS includes:

Side Plate (Blackmagic PYXIS)
A mounting plate that attaches to the side of the camera and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes.
A marked set of 3/8-16 and 1/4-20 holes are on the sensor axis and the plate is the correct thickness to mount the camera vertically on Baseline 15mm LW (Blackmagic PYXIS) and use 15mm rods at the correct lens height.

Audio Breakout AB-9 (Blackmagic PYXIS)
A passive adapter that converts the camera's front mini XLR and rear 3.5mm TRS plug into two standard, full-size XLRs.
Input 1 - balanced audio with phantom power via camera menu
Input 2 - unbalanced audio, no phantom power available
9.5 inch (24 cm) cable length with custom low profile mini XLR connector and Neutrik 3.5mm TRS.

Technical specifications

Compatibility: Blackmagic Design PYXIS

Connector 1:

1x Mini XLR Male

1x 3.5mm Male

Connector 2:

1x 3-Pin XLR Female

1x 3-Pin XLR Female

Color: Black

Cable Length: 9.5" / 241.3 mm

Dimensions: 9.84 x 1.36 x 1.09" / 24.99 x 3.45 x 2.77 cm

Weight: 2 oz / 56 g

Package Weight: 0.07 kg

Box Dimensions (LxWxH): 9.8 x 9.4 x 3.3 cm

Included items

MID49 Audio Breakout AB-9 for Blackmagic PYXIS

MID49 Side Plate for Blackmagic PYXIS
