Breakout Boxes and Side Plate Bundle for RED V-Raptor

Breakout Boxes and Side Plate Bundle for RED V-Raptor includes:

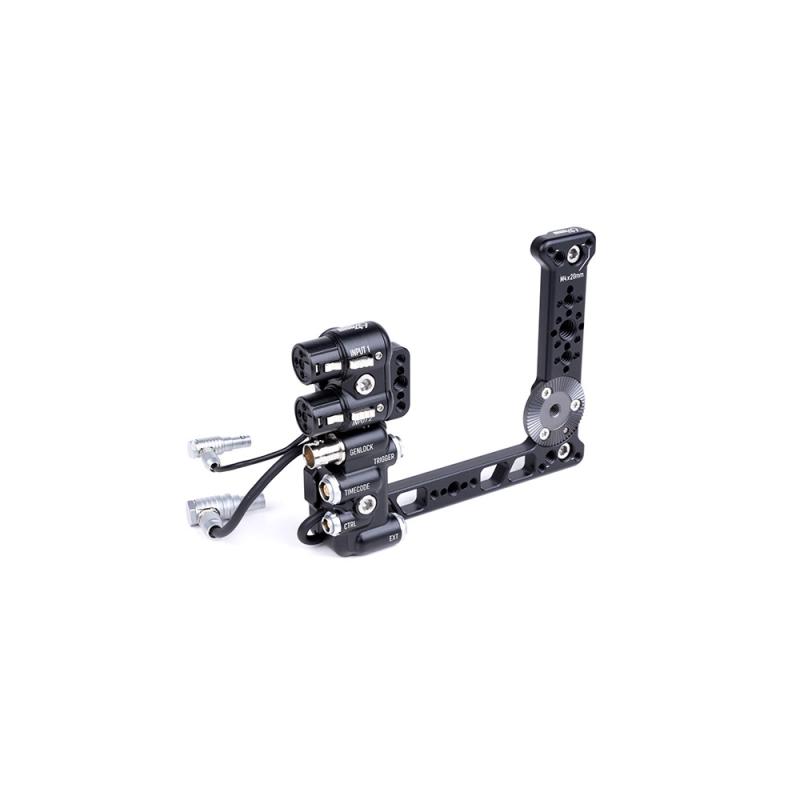

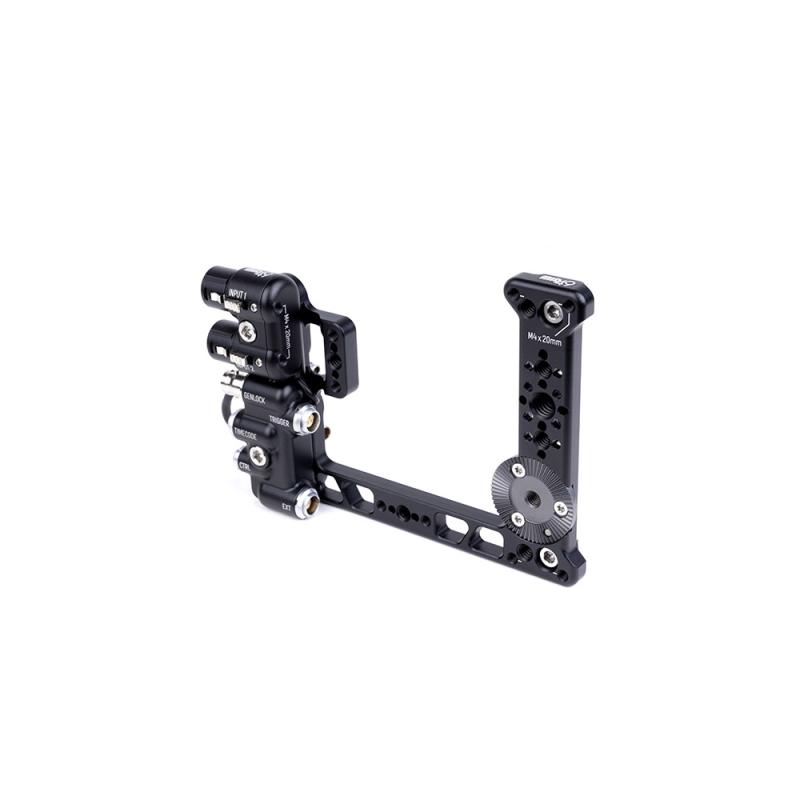

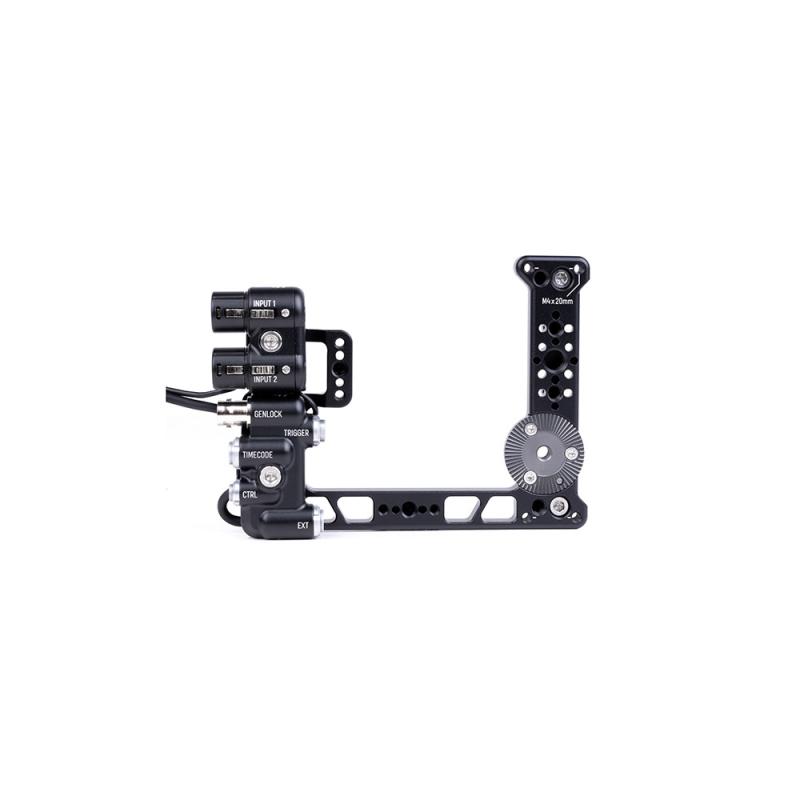

Breakout Side Plate for RED V-Raptor
Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right).

The side plate compatibility with other manufacturer's accessories is below:

Manufacturer Compatibility Notes
8Sinn Replaces side plate
Bright Tangerine Replaces side plate
Came-TV Replaces side plate
Ignite Digi Incompatible with Keystone
Kondor Blue
Replaces side plate
Modern Film Tools Replaces side plate
Octamas Replaces side attachments
RED/CS Replaces side plate and EXT side bar
Smallrig Replaces side plate
Tilta Replaces side plate and EXT function of power module
Vocas Incompatible with top plate

AB-1 (RED V-Raptor)
A passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs and attaches by a captive 1/4-20 screw and rubber pad.

EB-1 (RED Komodo, Komodo-X, V-Raptor)
An EXT port converter that provides industry-standard connectors:

Genlock 75-ohm BNC
Timecode 5-pin 0B
CTRL 4-pin 00
Trigger 3-pin Fischer
EXT Pass-Through 9-pin 0B

Technical specifications

Connector 1: 1x LEMO 5-Pin Right Angle

Connector 2: 2x XLR 3-Pin Right Angle

Cable Length: 8" / 20.3 cm

Package Weight: 0.06 kg

Box Dimensions (LxWxH): 8.5 x 8.4 x 2.4 cm

Included items

MID49 Breakout Side Plate for RED V-RAPTOR

MID49 Audio Breakout AB-1 for Select RED, ARRI & Z Cam

MID49 EXT Breakout Cable EB-1 for RED KOMODO, KOMODO-X & V-RAPTOR (8")
