Breakout Side Plate for RED V-Raptor

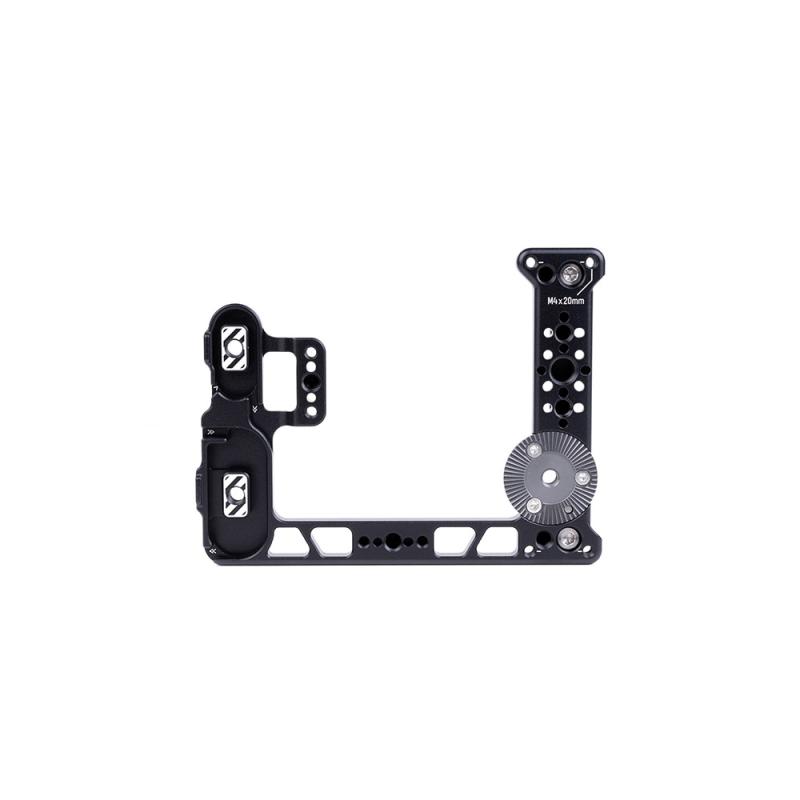

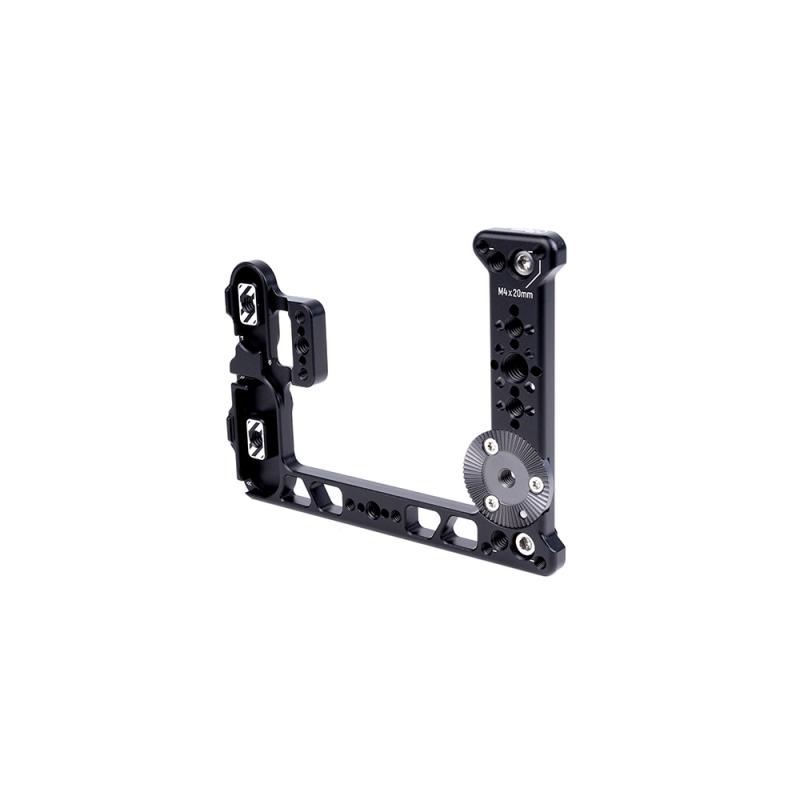

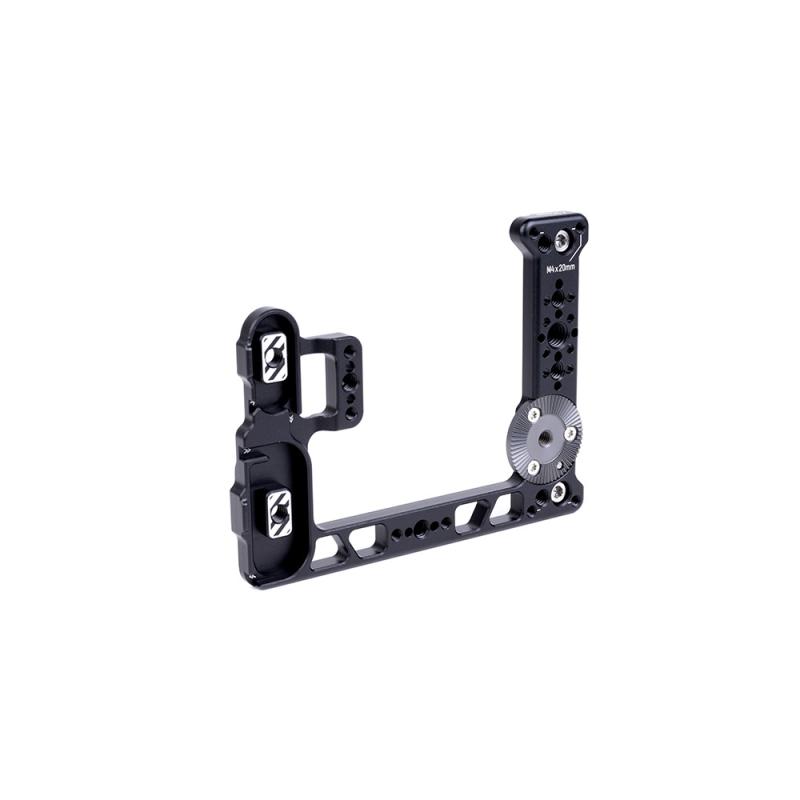

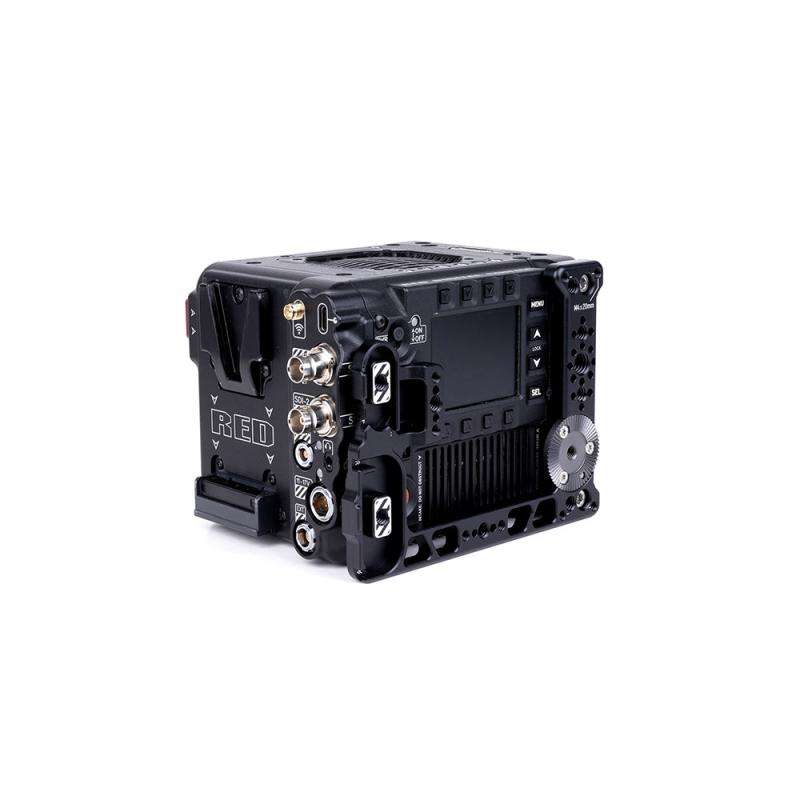

Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right). Rear 1/4-20's provide ideal mounting locations for Audio Breakout AB-1 (V-Raptor) and EXT Breakout EB-1 .

Recessed cable loops in the side plate allow for clean cable management.

The side plate compatibility with other manufacturer's accessories is below:

Manufacturer Compatibility Notes
8Sinn Replaces side plate
Bright Tangerine Replaces side plate
Came-TV Replaces side plate
Ignite Digi Incompatible with Keystone
Kondor Blue
Replaces side plate
Modern Film Tools Replaces side plate
Octamas Replaces side attachments
RED/CS Replaces side plate and EXT side bar
Smallrig Replaces side plate
Tilta Replaces side plate and EXT function of power module
Vocas Incompatible with top plate

Included items

MID49 Breakout Side Plate for RED V-RAPTOR
