Canon C200 Bundle Rig

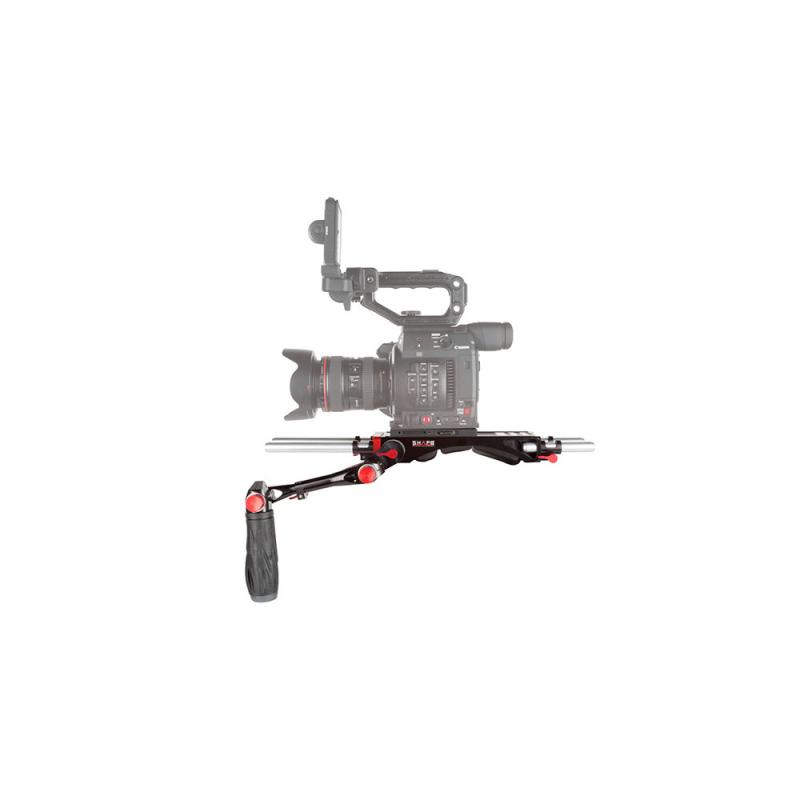

The SHAPE Canon C200 Camera Bundle Rig is a support system suitable for both handheld or shoulder-mounted shooting. It includes the BP0008 V-Lock Quick Release Baseplate with a pair each of 8" and 4" 15 mm aluminum rods, the V-Lock Replacement Pad and one HAND3 Telescopic Handle for ARRI Rosette (left side).

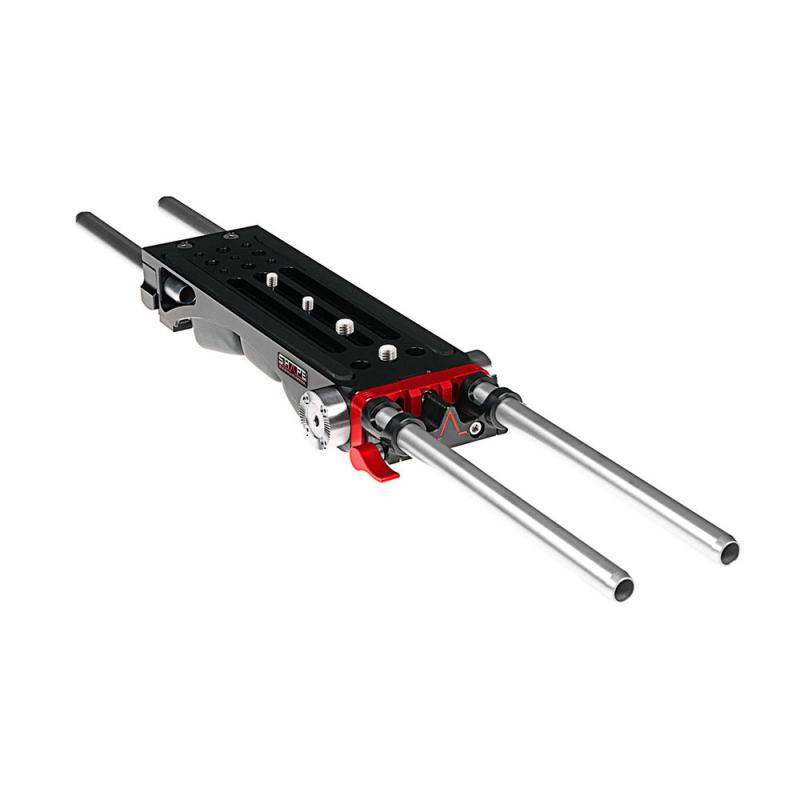

8000 v-lock quick release baseplate (BP0008)
The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock Tripod & Fluid Head Adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate. The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8" and 4" 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included.

Canon C200 adapter plate (C200AP)
The Adapter Plate for Canon EOS C200 from SHAPE attaches to the base of the C200 camera and allows you to mount your camera onto a rig, tripod, gimbal, or drone. The position of the captive screws matches the threaded holes at the base of the C200.

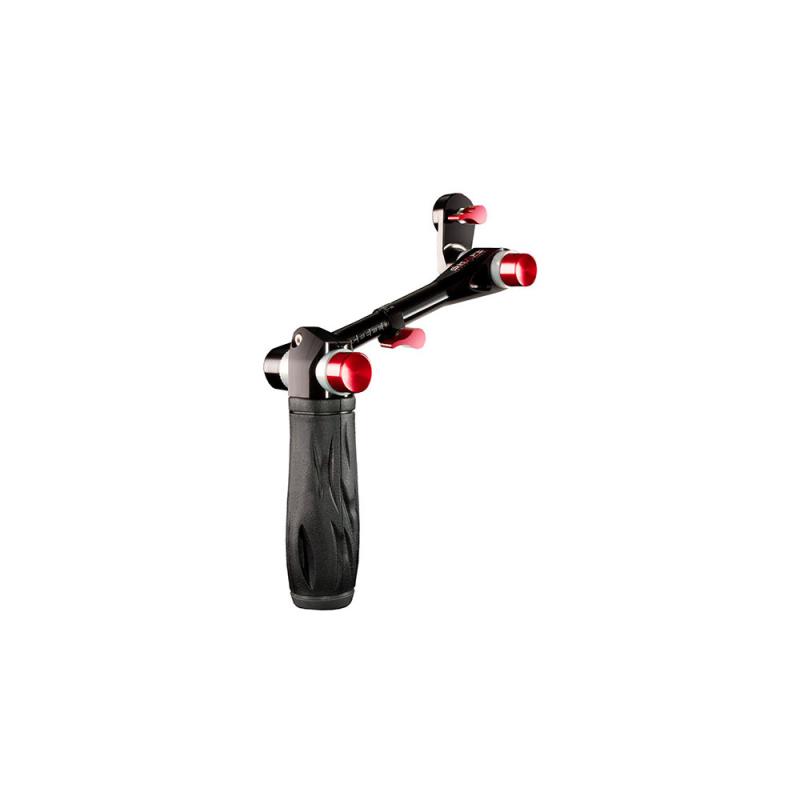

Single telescopic handle Arri rosette left side (HAND3)

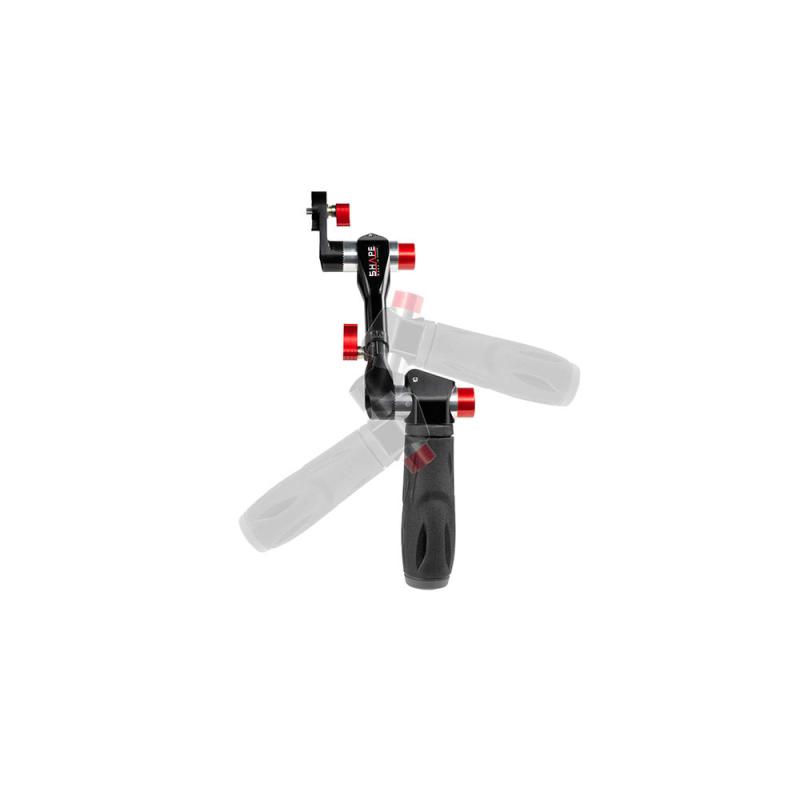

Left telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

15 mm 4" rods (15TUBE4)
This pair of SHAPE 15 mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 8" rods (15TUBE8)
Pair of 15 mm rods 8" long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isnt perfectly aligned or is at a slight angle to the rod clamp.

Technical specifications

Support Type: Rod Support System
Grip Type: No
Camera Compatibility: ARRI ALEXA, Canon EOS C300 / C500, Panasonic AG-AF100, RED One, Sony PMW-F5 / F55
Rod Standard: 15 mm Studio / 100 mm Spacing
Rod Standard: 19 mm Studio / 104 mm Spacing
Included Rods: 2x 8" / 20 cm 15 mm Aluminum Rod
Included Rods: 2x 4" / 10 cm 15 mm Aluminum Rod
Battery Plate Type: No
Camera Mounting: 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting: 1/4"-20 Female Thread, 3/8"-16 Female Thread, V-Lock
Rod Ports: 2x 15 mm Rod Port
Shoe Mounting: No
Rosettes: Sides: 2x ARRI Rosette w/ M6 Female Thread
Materials: Aluminum
Dimensions: Not Specified by Manufacturer
Weight: Not Specified by Manufacturer
Package Weight: 2.58 lb
Box Dimensions (LxWxH): 14.2 x 5.95 x 4.45"

Accessory Mounting

5x 1/4"-20 Female Thread

Included items

SHAPE BP0008 V-Lock Quick Release Baseplate
15mm LWS Rod Adapter
SHAPE 15mm Aluminum Rods (Pair, 8")
SHAPE 15mm Aluminum Rods (Pair, 4")
2 x 1/4"-20 Camera Mount Screws
2 x 3/8"-16 Camera Mount Screws
Allen Key
Limited Lifetime Manufacturer Warranty
SHAPE Adapter Plate for Canon EOS C200
Limited Lifetime Manufacturer Warranty
SHAPE Telescopic Handle for ARRI Rosette
Limited Lifetime Manufacturer Warranty
