CF10 Fresnel and Barn Doors Kit

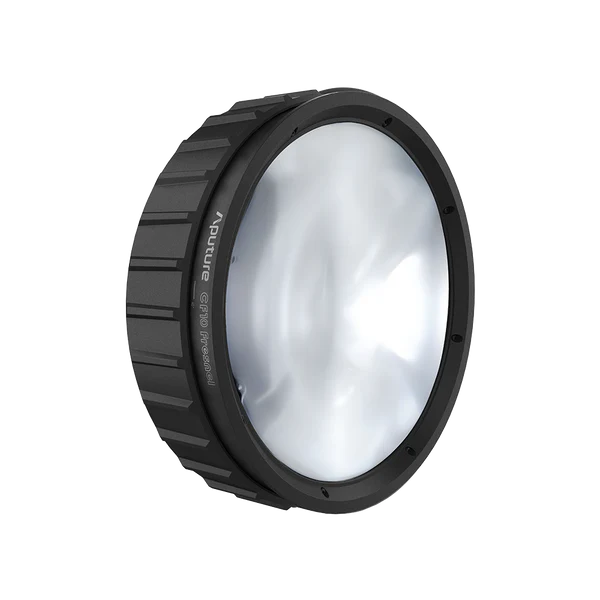

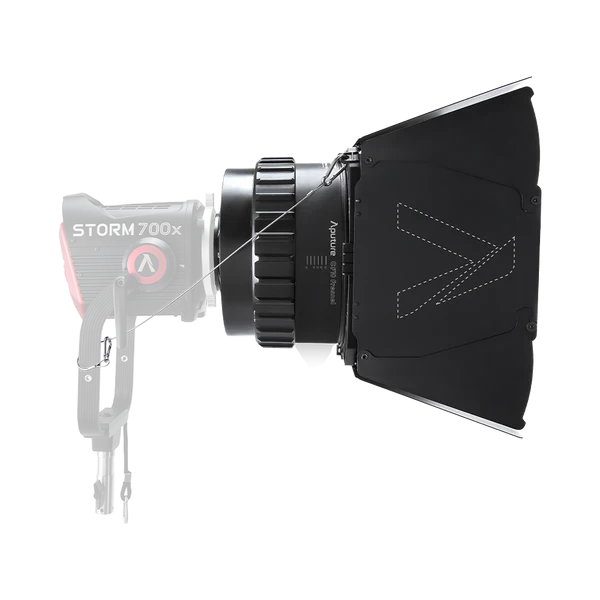

The CF10 Fresnel with Barn Doors Kit is a 10-inch Bowens mount fresnel with included 8-leaf barn doors. It offers a beam range of 15° to 40° and is designed to be up to three times brighter than previous LED and Fresnel pairings while maintaining a compact profile. The dual-expanding focusing system with multiple lens elements drastically reduces size and weight without compromising optical performance. The barn doors can hold an 11" scrim. The compact design is optimized for use with the STORM 700x, and is compatible with the STORM 400x, and the Light Storm 600c Pro and Pro II.

Technical specifications

Beam Angle Full Spot: 15º

Beam Angle Full Flood: 40º

CF10 Fresnel: ⌀29.8 x 12.1 cm

⌀11.7 x 4.8 in

CF10 Barn Doors: 32.5 x 35.9 x 45.5 cm

12.8 x 14.1 x 17.9 in

Carrying Case: 46.0 x 25.0 x 40.0 cm

18.1 x 9.8 x 15.8 in

CF10 Fresnel: 2.45 kg / 5.40 lbs

CF10 Barn Doors: 1.40 kg / 3.09 lbs

Carrying Case (Empty): 3.00kg / 6.61 lbs

Carrying Case (Fully Loaded): 6.40 kg / 14.11 lbs

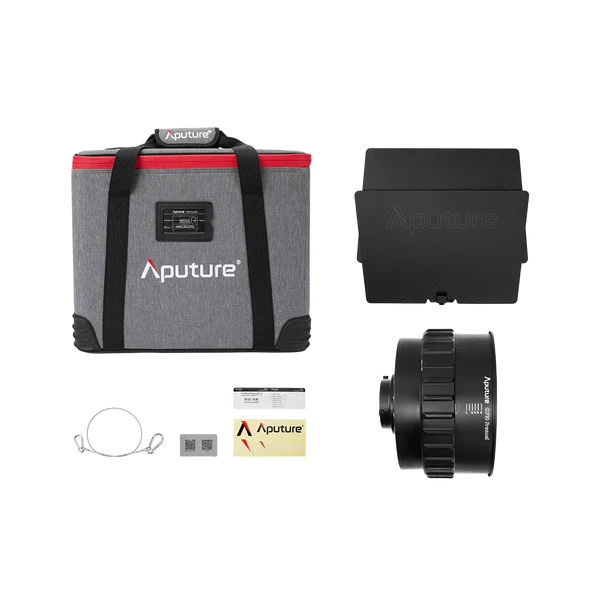

In the box

1x CF10 Fresnel

1x CF10 Barn Doors

1x Safety Chain

1x Soft Carrying Case
