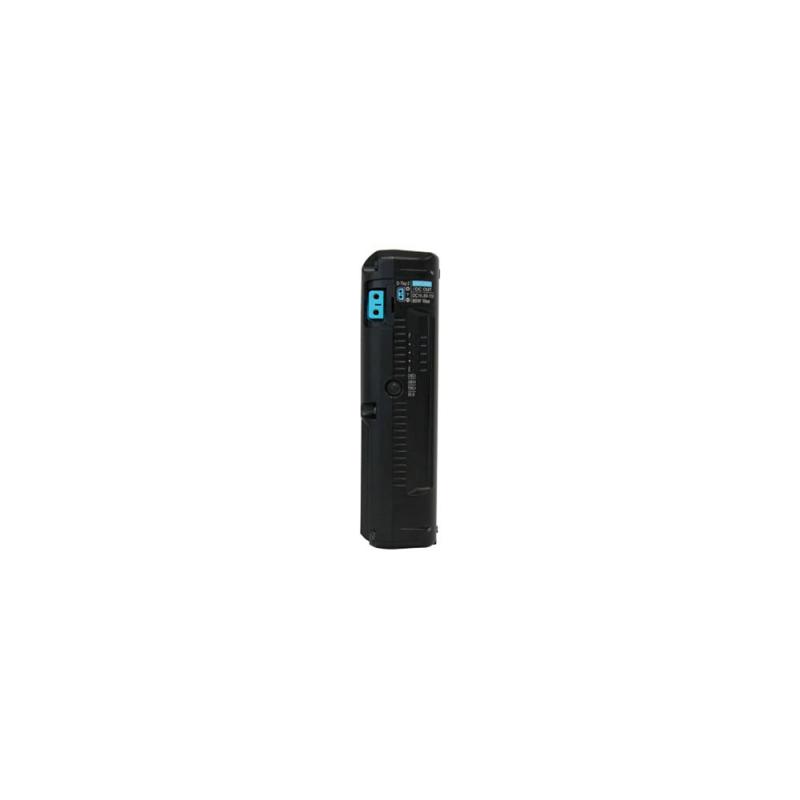

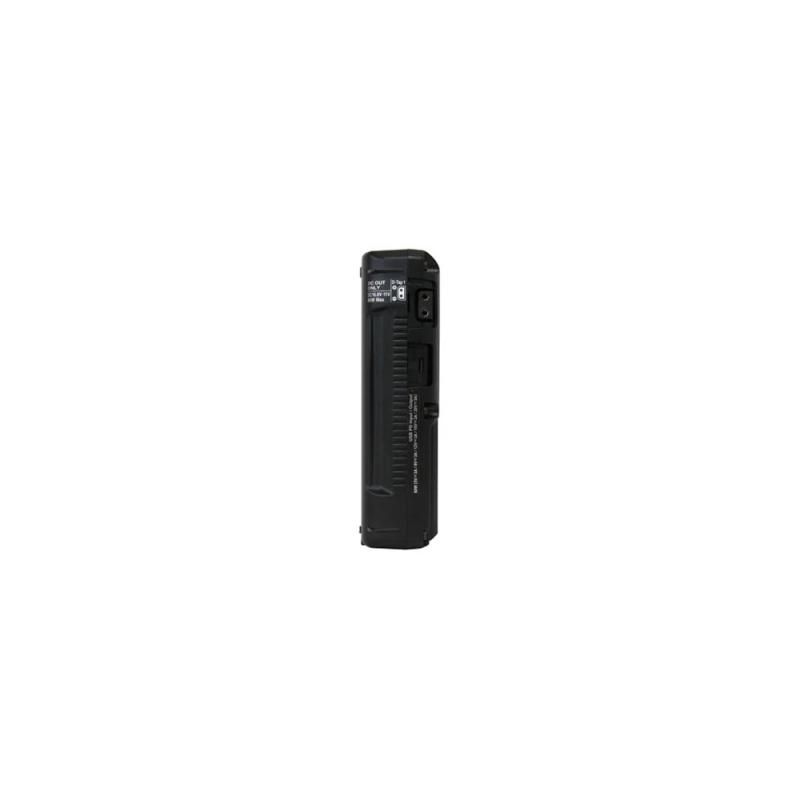

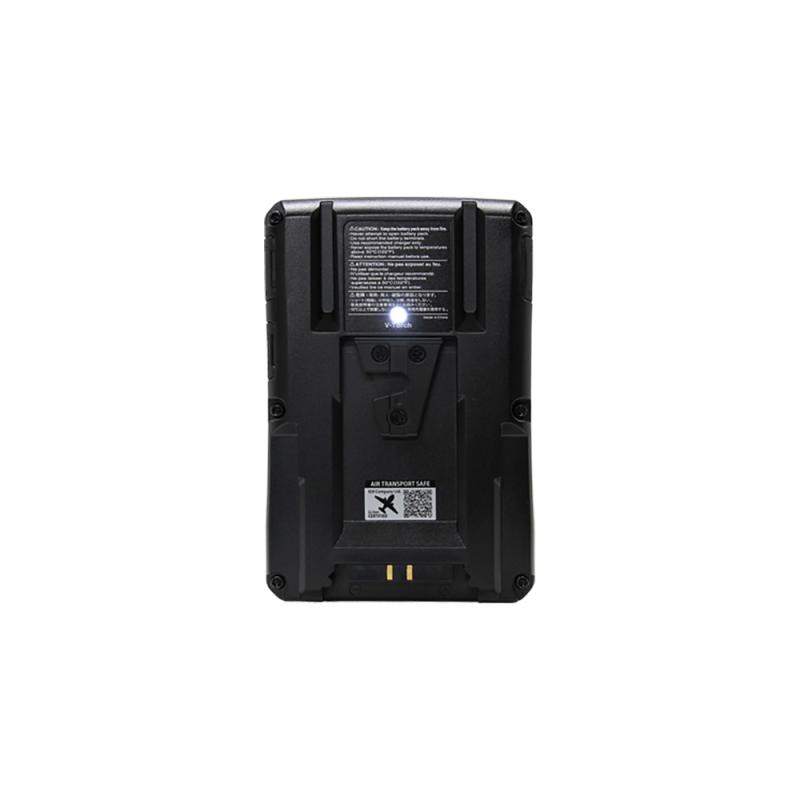

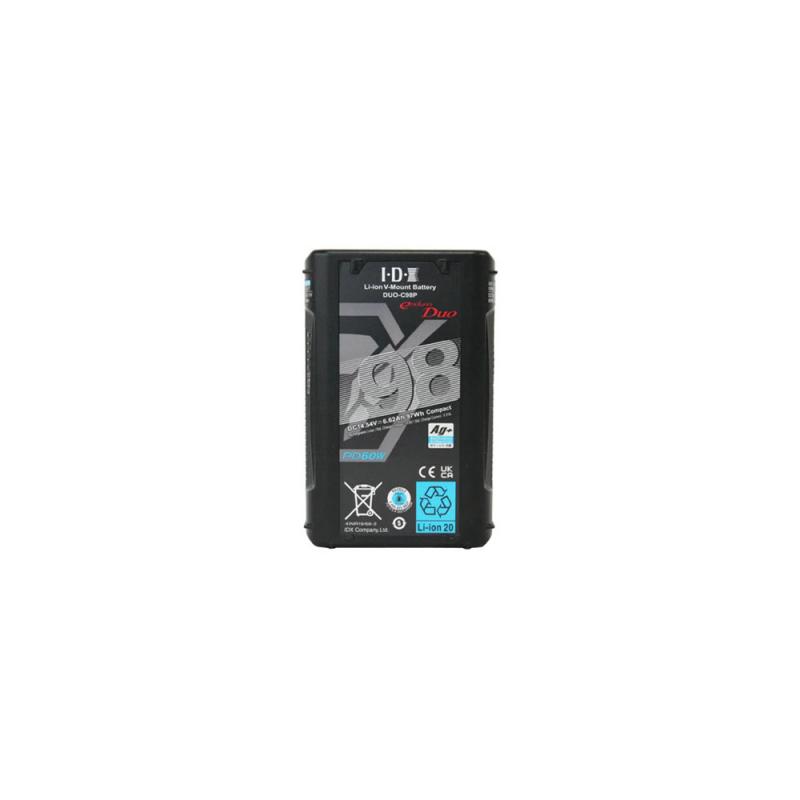

Duo C98P Battery 14.5V 97 Wh 2x D-Tap 1x USB PD

The DUO-C98P is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98P comes equipped with two built-in D-Taps and a single built-in USB-C input/output to power ancillary accessories and also to charge battery.

Key Features:

97Wh capacity

1.5 inches in depth

Compact high capacity IATA friendly(<100Wh) Lithium Ion battery (1.37lbs)

Capable of handling up to 10A loads ‡

(1) 80W D-Tap Advanced output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)

(1) 80W D-Tap output (unregulated)

(1) USB-C PD max. input/output 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A) USB-C output (auto shut off after 30 minutes of inactivity)

5 Power Indicator LEDs (displaying 10% increments)

Battery circuit protection ensures the DUO-C98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures

The highest grade Lithium Ion cells are used to ensure the DUO-C98 is one of the most reliable batteries on the market

11V auto cut-off prevents over-discharging (while a load is applied)

Unrestricted amount of spare DUO-C98 batteries allowed for carry-on airline baggage under IATA regulations

Fully compatible with all ENDURA V-Mount chargers and accessories

Environmentally friendly and recyclable

Antiviral and antimicrobial body for peach of mind

Technical specfications

Battery Type: 1x V-Mount

Battery Capacity: 6600 mAh / 97 Wh

Output Voltage: 14.5 VDC

Battery Chemistry: Lithium-Ion

Power I/O

1x D-Tap/P-Tap Female Input/Output

     Input: 80 W Maximum

     Output: 80 W Maximum

1x D-Tap/P-Tap Female Output

     Output: 80 W Maximum

1x USB-C Female Input/Output

     Input: 60 W Maximum

     Output: 60 W Maximum

Accessory Mounting Thread: No

Indicator: Status Light

Dimensions: 5.75 x 3.74 x 1.54" / 14.61 x 9.5 x 3.91 cm

Weight: 1.41 lb / 0.64 kg

Operating Conditions: 32 to 104°F / 0 to 40°C

Storage Conditions: -4 to 122°F / -20 to 50°C

Package Weight: 1.625 lb

Box Dimensions (LxWxH): 6.8 x 4.7 x 2.2"

Included items

IDX System Technology DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery

Limited 2-Year Manufacturer Warranty
