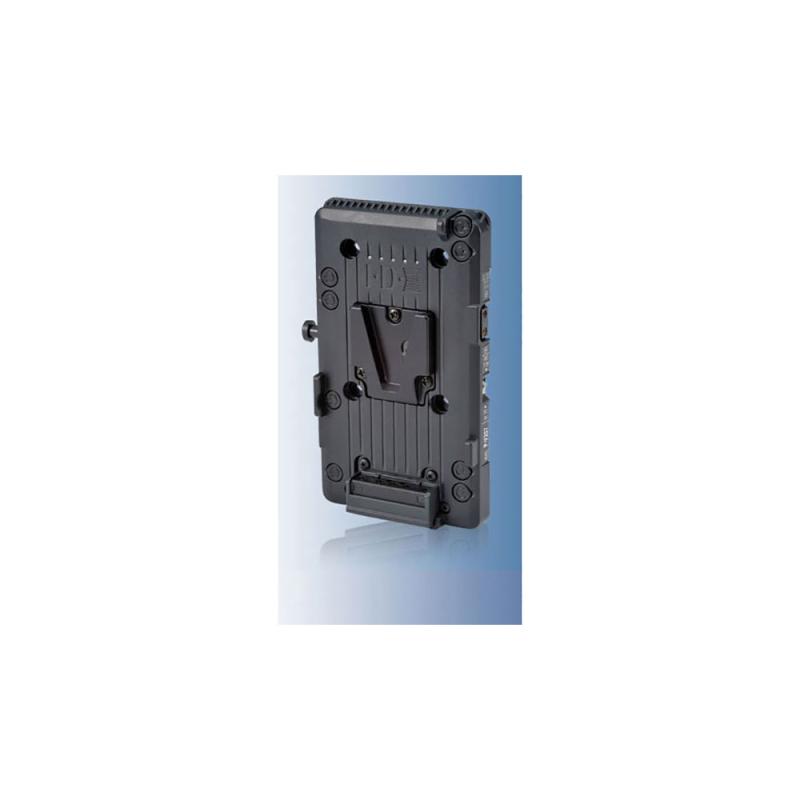

ENDURA V-Mount P-V257 Plate with 2 Pin D-Tap DC out - IDX
ENDURA V-Mount Plate with 2 Pin D-Tap DC out
The P-V257 regulates the 14.4V input from an ENDURA V-Mount Li-ion battery to output 5V or 7.3V. The choice of output depends on the input voltage required for the camera, and can be chosen via a power select switch on the side of the unit. A second D-Tap connector is located on the opposite side which can be used to power optional camera accessories.
For a list of camera configuration options click here. However, please check the input voltage of the camera or other equipment prior to selecting the correct P-V plate for your application.
Technical specifications
Plate Front / Battery Mount: V-Mount
Plate Rear Mount: Mounting Holes
Number of Battery Bays: 1
Hot-Swap Support: No
Inputs/Outputs: 2x D-Tap/P-Tap Output
Dimensions: 5.6 x 3.3 x 0.5" / 14.2 x 8.3 x 1.2 cm
Weight: 0.4 lb / 181 g
Package Weight: 0.45 lb
Box Dimensions (LxWxH): 5.7 x 4 x 1.1"
Included items
IDX System Technology P-V257 Endura V-Mount Plate
Limited 1-Year Manufacturer Warranty
