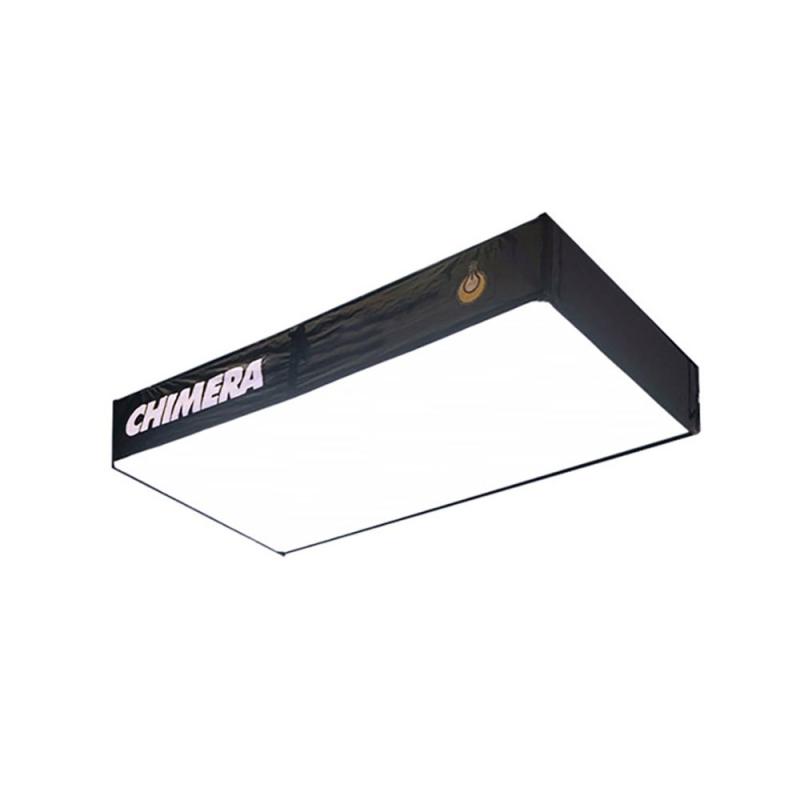

F3 5 x 10 ft Complete Kit

The Chimera F3 powered by LiteGear is the next evolution of overhead light banks. Using LiteGear’s proven technology, the F3 provides reliable, flicker free dimming, CCT from 2600 to 6000K combined with light weight and quick, easy setups. The F3 is easily adjustable to match or contrast with all lighting environments including, HMI, tungsten, LED, and strobes. The F3 can be easily hung in a variety of ways, or can be stand-mounted due to its light weight.

5 × 10 Version
1,52 × 3,04m
0,4 m deep with 1000W of field proven LiteGear LED engines.

Features
• Easy to build, strong aluminum frame
• Can be quickly assembled - saving time and money
• No tools required for assembly
• Stand alone or DMX control of intensity and CCT
• 1000W of field proven LiteGear LED engines
• CRI and TLCI > 95
• 3,7 m Head to Powersupply Cables.

Technical specifications

Dimensions 5’ x 10’ x 16”
1.52 m x 3.04 m x 0.4 m
Weight 94 lbs / 42.6 kg
Power Input 100 – 240 VAC
Max. Power 1,000W
CCT 2600 to 6000 K
CRI > 95
TLCI > 95

In the box

1 - 5x10 ft (1.52x3.04x0.4m) Disassembled Frame
2 - 5x5 ft (1.52x1.52m) LED Head Unit
1 – 5x10 ft (1.52x3.04x0.4m) Lightbank Body
2 - LiteGear LiteDimmer Plus AC600
2 - 24 ft. (7.2m) head cable
Packed in 2 - Custom Padded Duffel 60”x18”Ø (2.36x0.46m Ø)
