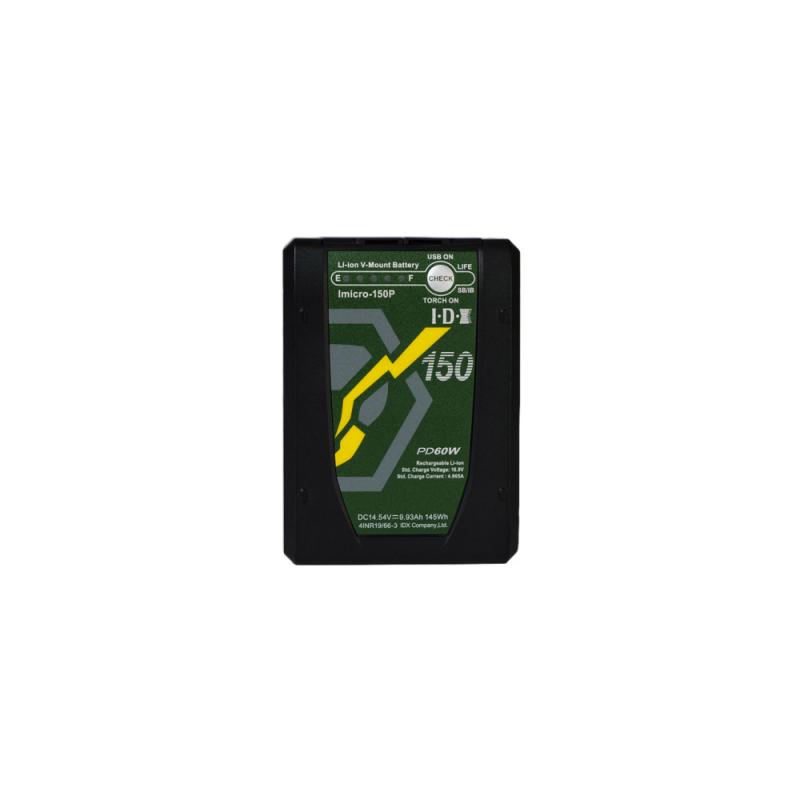

Imicro-150P Battery 14.54V 145Wh High Load, 1 x USB-PD + 1 x D-Tap

The Imicro-150P is the smallest battery pack in the world at this capacity. Rated at 145Wh, the Imicro-150P meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro™s size is beneficial for users with small equipment and gimbal set ups, and fits the new RED V-RAPTOR. The Imicro-150P also includes one USB-C PD and one D-Tap outputs, V-Torch LED for use in dark environments and digital communications to display battery info via viewfinder on cameras such as ARRI and RED. Future accessories will make the Imicro Series your new go-to setup.
*Compatible with UC-PD1 and UC-PD2 for USB-C PD charging

Technical specifications

Battery Type: 1x V-Mount

Battery Capacity: 145 mAh

Output Voltage: 14.54 VDC

Battery Chemistry: Lithium-Ion

Power I/O: 1x D-Tap/P-Tap Female Output

Output: 100 W Maximum (Up to 16.8 VDC at 5.9 A)

Accessory Mounting Thread: No

Indicator: Status Light

Dimensions: 3.9 x 2.9 x 1.6" / 100 x 73 x 39.5 mm

Weight: 13.4 oz / 380 g

Operating Conditions:

32 to 104°F / 0 to 40°C

50 to 86°F / 10 to 30°C

Storage Conditions: -4 to 122°F / -20 to 50°C

Package Weight: 1.98 lb

Box Dimensions (LxWxH): 4.9 x 3.4 x 3.2"

Included items

IDX System Technology Imicro-150P 145Wh High-Load Lithium-Ion Mini V-Mount Battery

Limited 2-Year Manufacturer Warranty
