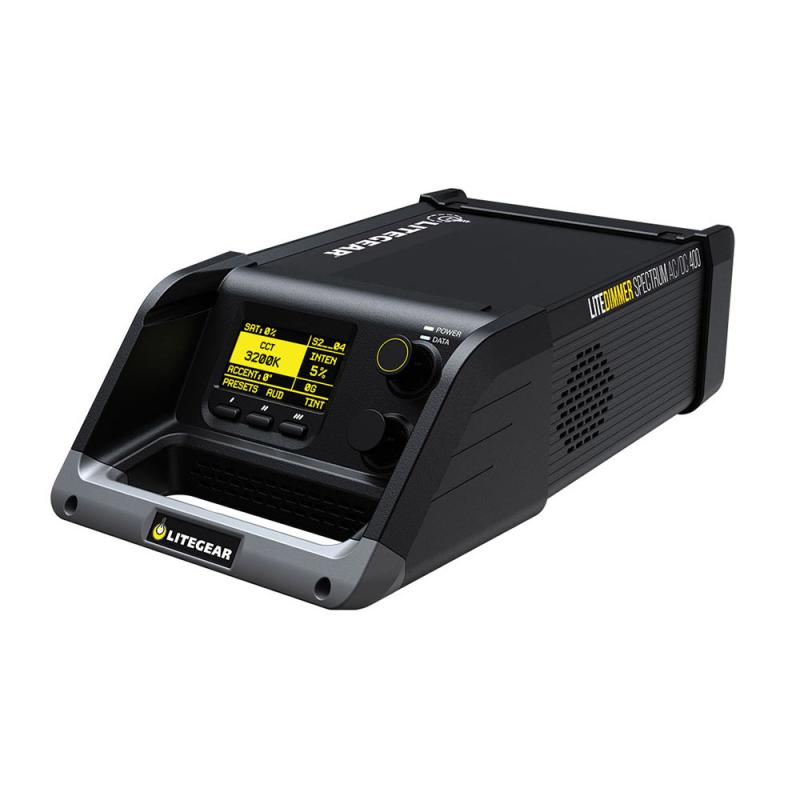

LiteDimmer Spectrum AC/DC 400

The LiteDimmer Spectrum AC/DC 400 is part of a new class of dimmer packed with great new features, an ergonomic design, and ultra-compact form factor. Complete with local control and industry leading communication protocols, the AC/DC 400 can control multiple large format pixels, making pixel mapping of the LiteMat Spectrum easier than ever. Specially designed with AC and DC power options, integrated power supply, advanced processing power, Ethernet switch, expanded memory, and a faster processor, this new hardware allows for easy operation and cutting-edge software features. An integrated USB-A port enables easy updates that will bring new, innovative software for years to come.

Technical specifications

Product Name: LiteDimmer Spectrum AC/DC 400

Item Number: LD-SPECTRUM-ACDC400

Model: 300-1

Input Voltage: 100 – 240V AC, 50/60 Hz

Input Current: 4.5A

Output Voltage: 48V DC

Output Current: 9.25A

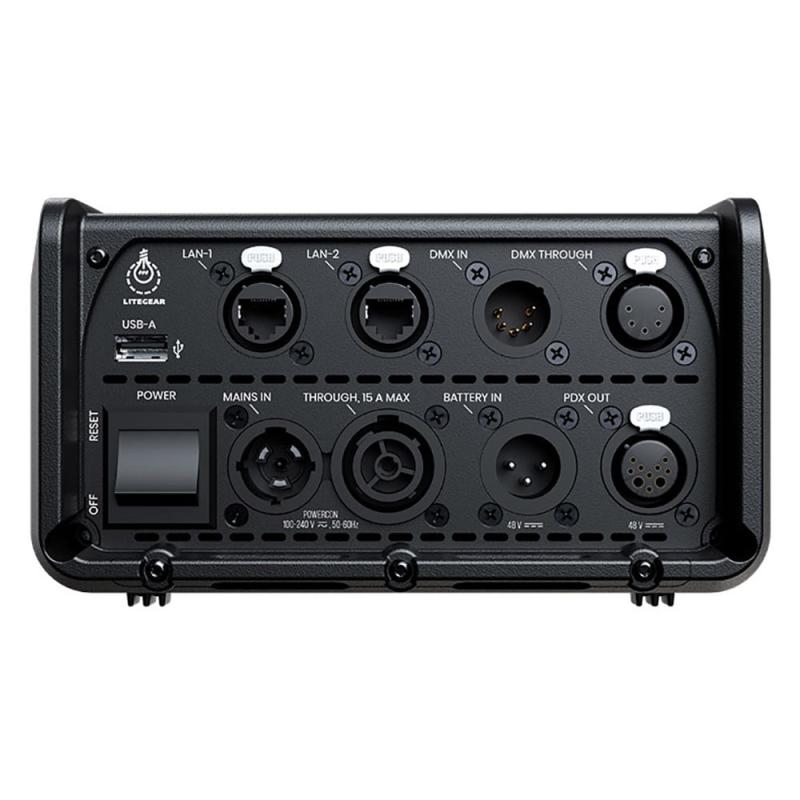

Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna

Data Connectors: PDX

Mains Power Connectors: powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)

Control: DMX, RDM, CRMX, Art-Net, sACN

Switches: On-board On/Off Switch

Power: 450W Maximum

IP Rating: IP20

Weight: 7 lbs (3.2 kg)

Dimensions: Height: 4.1 in (104.4 mm)

Width: 7.3 in (185 mm)

Length: 13.3 in (338.6 mm)

Max Operating Temperature: 122ºF (50ºC)

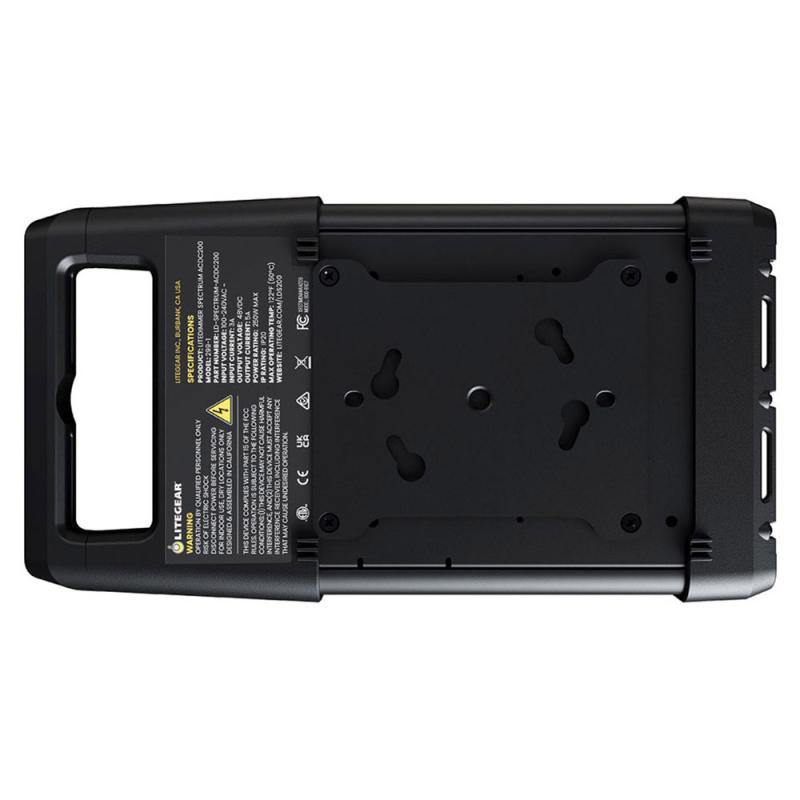

Mounting: kMount (truss & stand mounts available)

Certifications: ETL, CE, UKCA, FCC (certification pending)

Included items

Litegear LiteDimmer Spectrum AC/DC 400

Limited 1-Year Manufacturer Warranty
