Navigator Plus Conference Package

The Navigator Plus Conference Package is ready for any event. Larger venues and tucked away operating positions are no issue because the monitors connect with SDI and a brightness of 1500 nits means that they?ll still be readable outside in the sunshine. In this system you also have Pioneer Software with our unique PowerPoint integration that triggers each slide as you prompt the script.

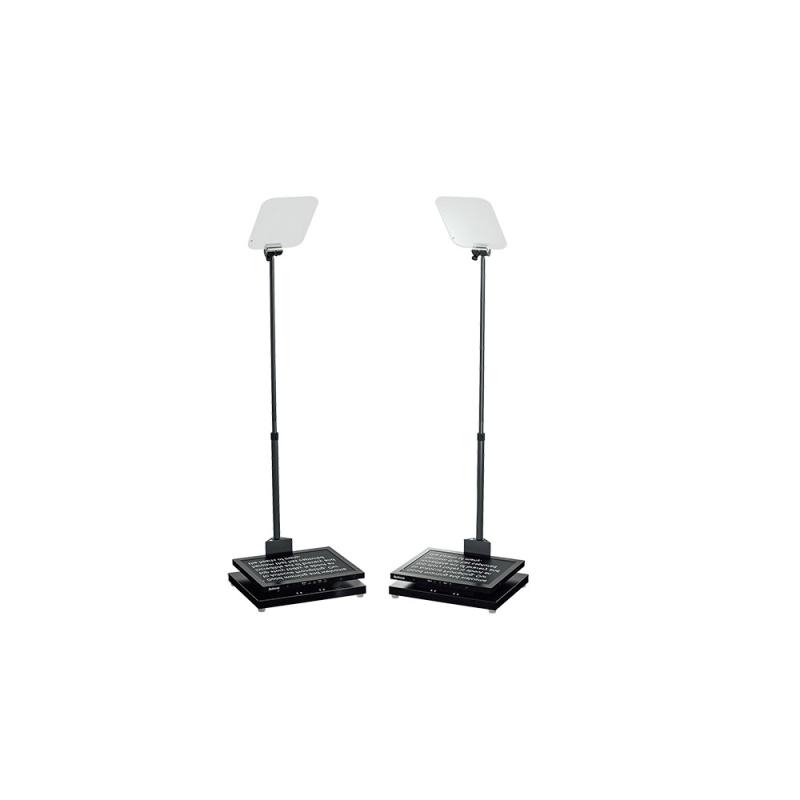

Autocue Navigator systems pack together everything you need to bring prompting to a venue. In the box you?ll find two monitors, two conference stands, a one-year Pioneer Software license and a ShuttleXpress hand control. It even includes all the cables you need to get started and a case to transport the system from one event to the next.

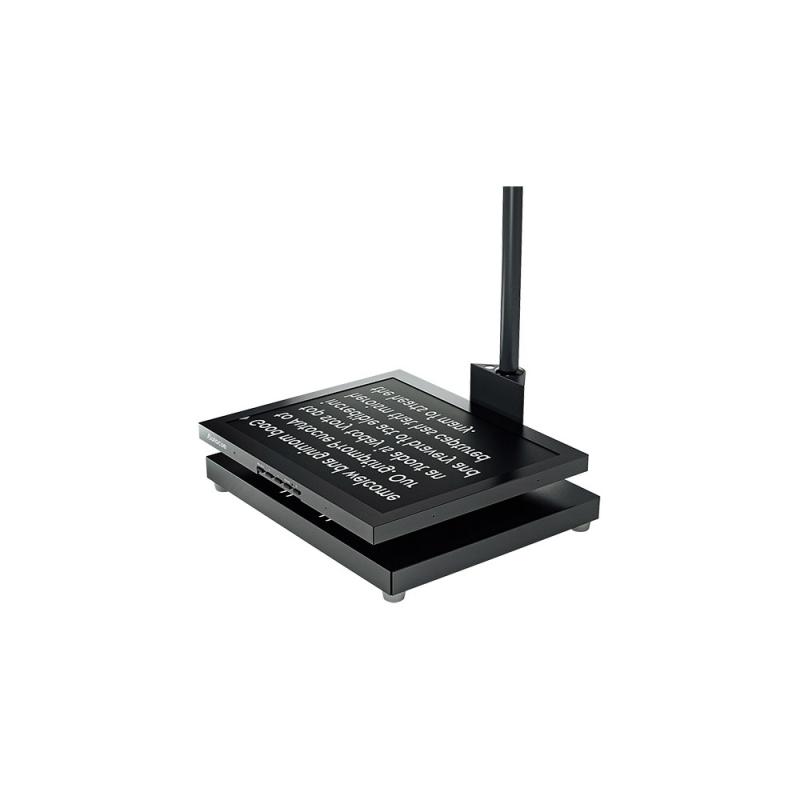

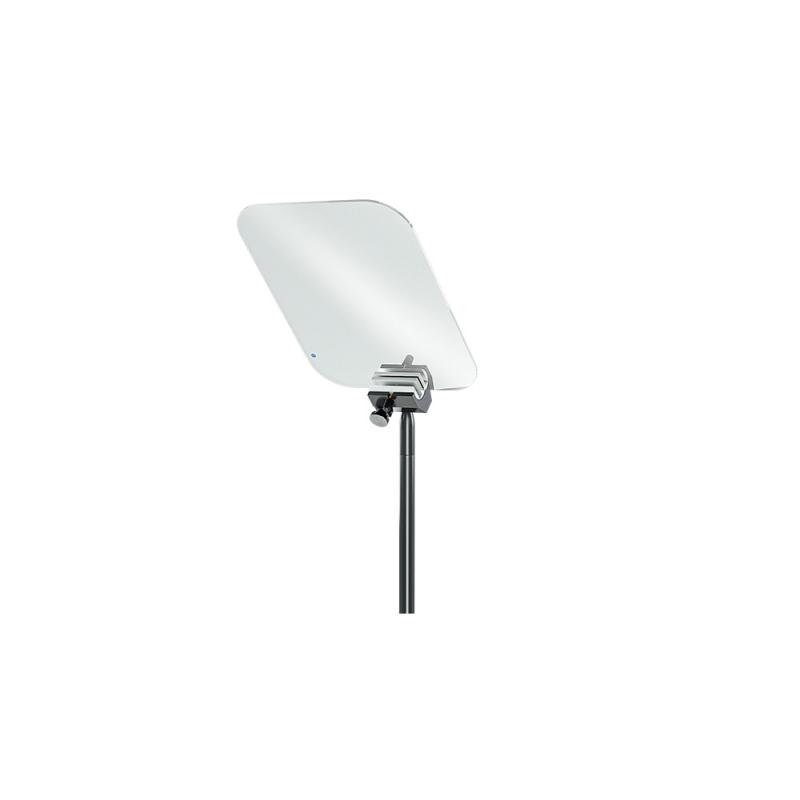

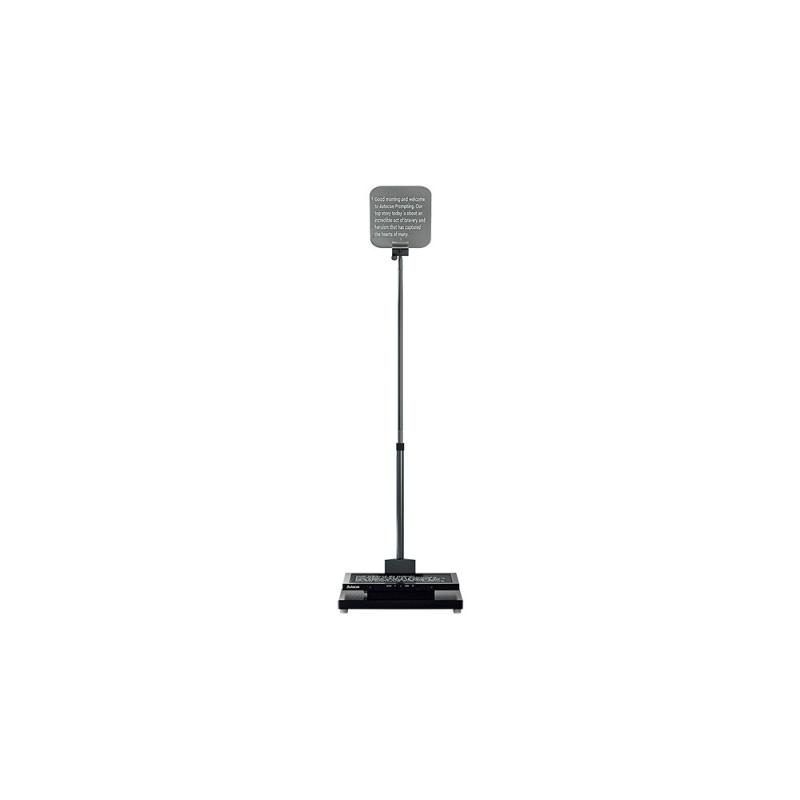

The monitors have a metal housing that?s lightweight and tough enough to survive for the long-haul. Simply rest them on the base of the conference stands and use the included adaptor to run an SDI cable to each one. The conference stand poles can be adjusted to place the glass at the perfect height to make the script visible to the speaker and you can be confident it will remain unseen by the audience thanks to Autocue 70:30 beamsplitter glass.

The Navigator Conference Package comes with a free one-year license for Pioneer Software, Autocue?s highest spec prompting application. Download a free trial from autocue.com now to see the benefits of fully featured prompting software.

Technical specifications

Adaptors: HDMI to 3G-SDI converter

Aspect Ratio: 4:3

Base: 40 cm x 34 cm x 42 mm / 15.75 in x 13.39 in x 1.65 in

Brightness: 1500Nits

Cables: 20m SDI, 2m SDI

Connectivity: 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA

Contrast: 1000:1

Controller: ShuttleXpress

Height: 98.5 cm to 218.7 cm / 38.78 in to 86.1 in

Input Voltage: 12V DC

Inputs: CVBS, HDMI, VGA

Monitor Fixing: VESA100, VESA75

Monitor Size: 17"

Power Consumption: 30W max

Power Supply: 90-264V AC 50/60Hz input, 12V DC, 3A max. output

Resolution: 1280x1024

Series: Navigator

Software: Pioneer, 1 year license

Warranty: 2 Years

Weight: 7.6 kg (Each prompter) / 16.75 lb (Each prompter)

In The Box

Monitor (2x)

PSU (2x)

UK/EU or US IEC power cable (2x)

BNC Cables, 2m, 20m

HDMI to SDI adaptor with HDMI cable

Telescopic beamsplitter pole (2x)

Adjustable beamsplitter mount(2x)

Beamsplitter glass (3x)

Pioneer software license pack, 1 year entitlement

ShuttleXpress controller

Transit case
