Shape 4K-12G SDI Cable 24inch 90 degree connectors

Shape 4K-12G SDI Cable 24inch 90 degree connectors

With only 4mm in diameter this 90-degree male to male BNC Cable from SHAPE can be use with nearly any component you have in your rig and will increase the accuracy of the signals sent from the video adapter. The 12G SDI BNC to BNC Connector Cable from SHAPE is designed for 12G-SDI/4K applications requiring extended bandwidth and is rated for 12G-SDI. It is perfect for HD cameras, gimbals, monitors, EVF, antennas, SDI Wireless TX/RX set or other equipment’s with Serial Digital Interface (SDI).

Key Features

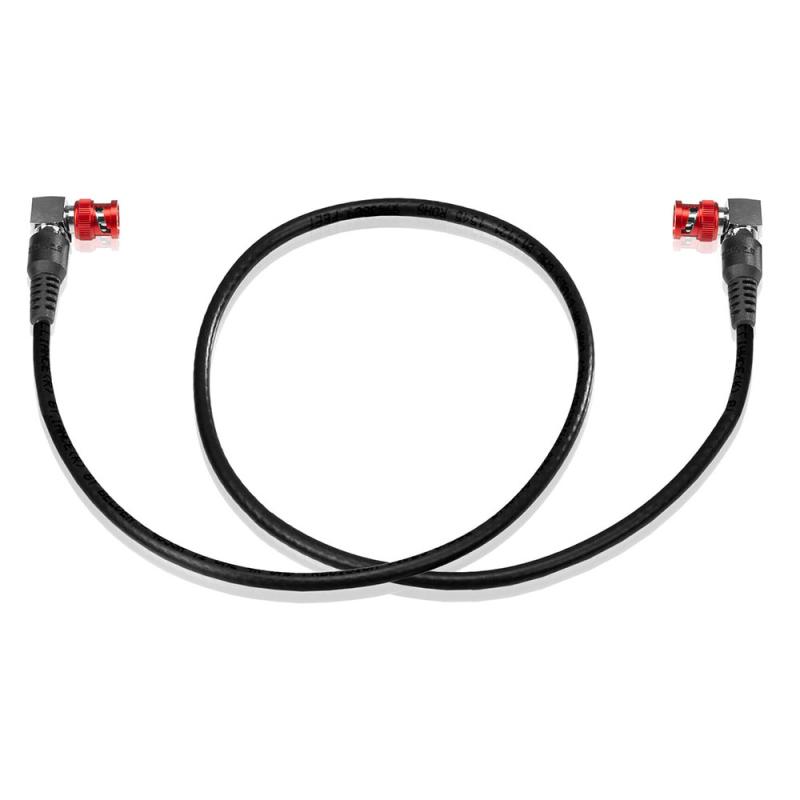

High-quality 90-degree Male BNC to 90-degree Male BNC black cable

Designed to record/transfer video signals of both serial data and 12G 4K ProRes raw

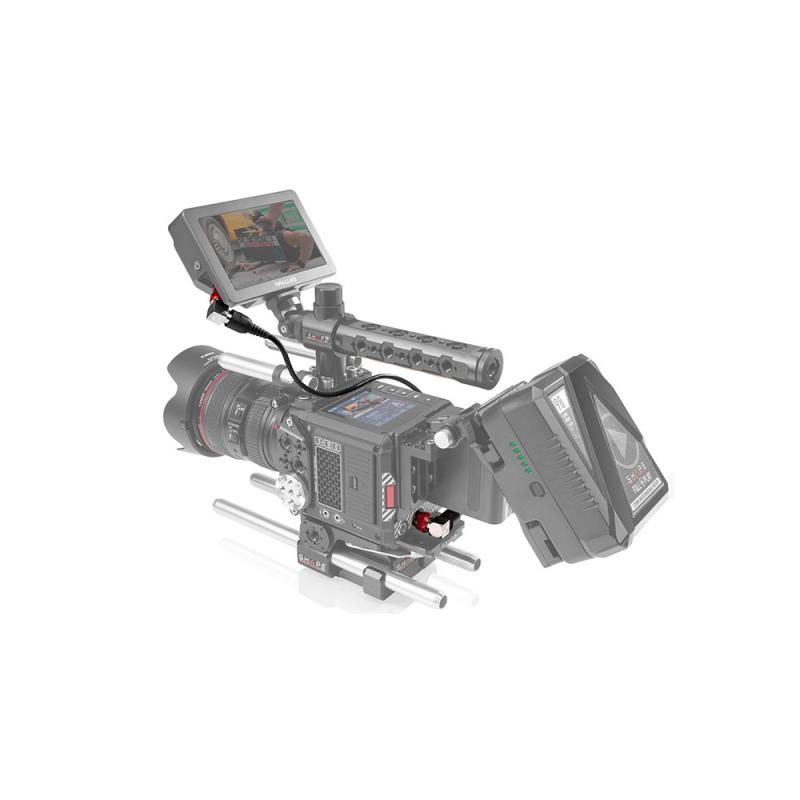

Compatible with HD cameras, gimbals, monitors, EVF, antennas, SDI Wireless TX/RX set or other equipment’s with Serial Digital Interface (SDI)

Length 24’’ (60.96 cm)

Thin Gauge Outer Diameter 0.159 in

Impedance 75 ohms

Frequency DC to 12 GHz

VSWR (Voltage Standing Wave Ratio) 1.5 MAX

12G- 4k SDI rated cable
