Shape Canon EOS R5C, R5, R6 Camera Cage

Canon R5C Cage (R5CCAGE)

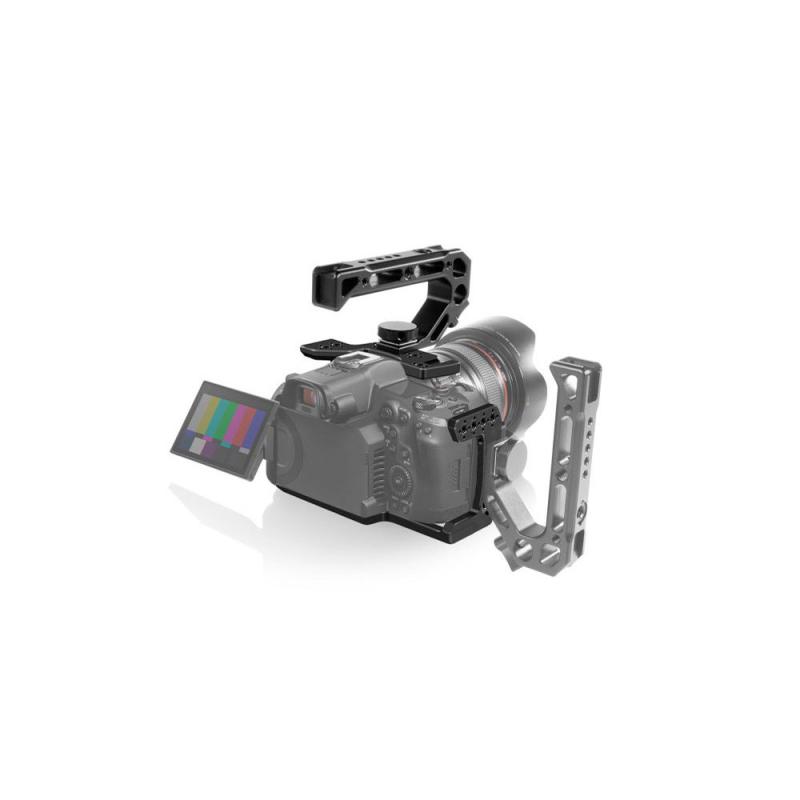

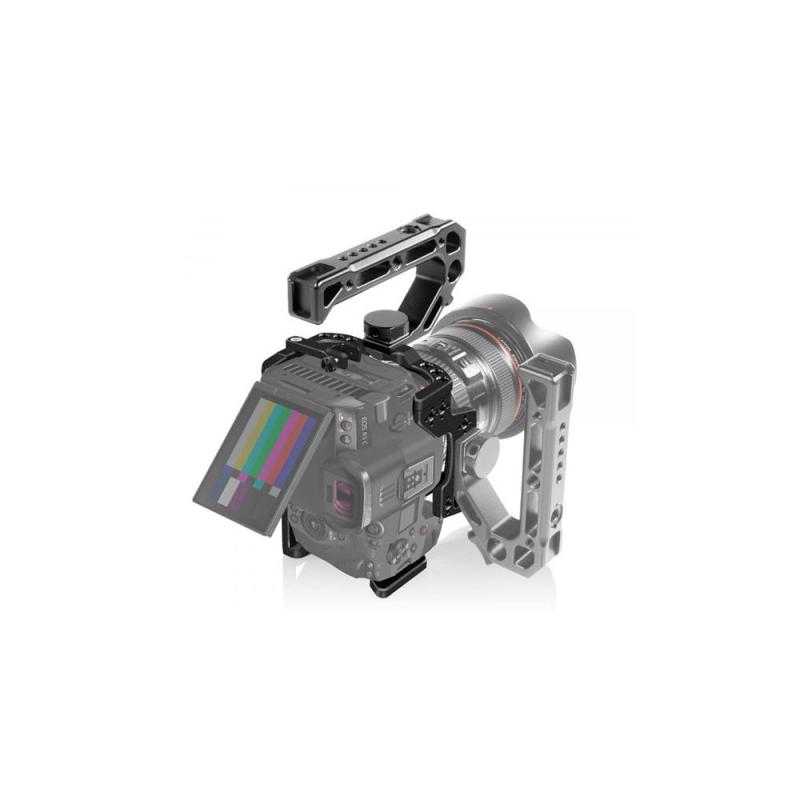

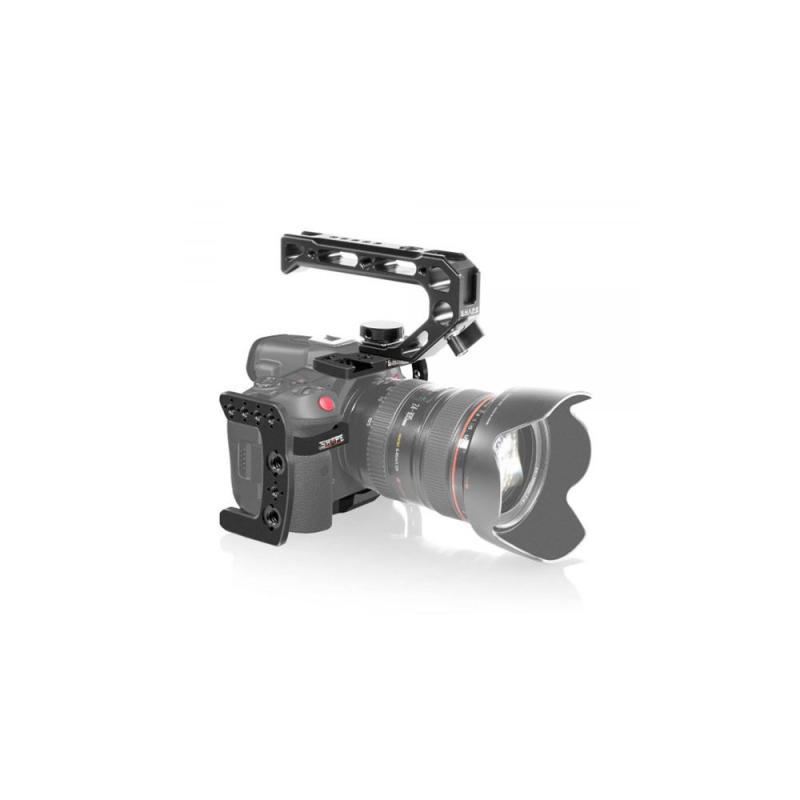

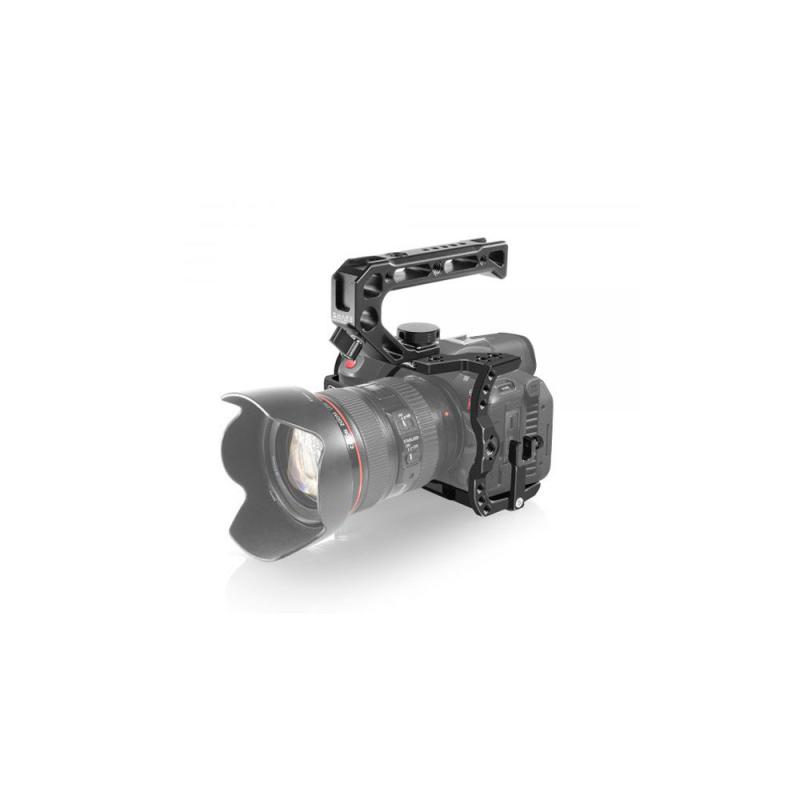

Made of CNC-machined aluminum, the cage is specifically designed for the Canon R5C,R5 and R6 cameras. The camera is mounted to the cage using a 1/4-20 screw. The cage is designed with several 1/4-20 threaded holes and seven 3/8?-16 threaded holes with anti-rotating Arri hole patterns. The design of the cage also allows easy access to all control buttons, side outputs, the memory card, the battery compartment, the lens release button and the camera hot shoe for the audio unit system. All doors and locks are fully usable when the camera is in the cage and its intelligent design allows you to operate the camera without having to remove the cable doors. In addition, the strap hooks can remain attached to the camera while being inserted into the cage. A detachable lock system to secure and hold in place your 4K Micro HDMI to HDMI cable is included with the cage. The bottom of the cage has three 1/4-20 threaded holes to mount a quick release tripod plate to switch from a tripod to a shoulder configuration. The aluminum top handle included with the cage offers cold shoe mounting options for additional accessories. A second top handle can be added and attached on the sides of the cage for vertical shoots.
A 15mm LW rod baseplate system is included and attached underneath the cage with four M4 screws. A height adjustable Metabones bracket is included at the front of the baseplate for additional support. The bottom of the baseplate has three threaded holes to attach quick-release tripod plates.

Technical specifications

Support Type: Cage
Grip Type: Topside Handgrip
Camera Compatibility: Canon EOS R5, Canon EOS R5 C, Canon EOS R6
Rod Standard: 15 mm Single Rod
Battery Plate Type: No

Accessory Mounting

Cage:

7x 3/8"-16 Female Thread

Cage:

Multiple 1/4"-20 Female Thread

Top Handle:

3x 3/8"-16 Female Thread

Top Handle:

Multiple 1/4"-20 Female Thread

Camera Mounting: Quick Release Plate with 1/4"-20 Male Screw
Tripod Mounting: 1/4"-20 Female Thread
Rod Ports: 1x 15 mm Rod Port
Shoe Mounting: Top Handle, Top
4x Cold Shoe
Rosettes: No
Cable Clamp: 1x HDMI Clamp
Materials: Aluminum
Dimensions: 7 x 6 x 5.75" / 17.8 x 15.2 x 14.61 cm
Weight: 1.05 lb / 476 g
Package Weight: 1.495 lb
Box Dimensions (LxWxH): 9.6 x 7.6 x 4.2"

Included items

SHAPE Camera Cage and Top Handle for Canon EOS R5 C, R5, and R6
Top Handle
1/4"-20 Tie-Down Screw
Limited Lifetime Warranty
