SmartView Duo

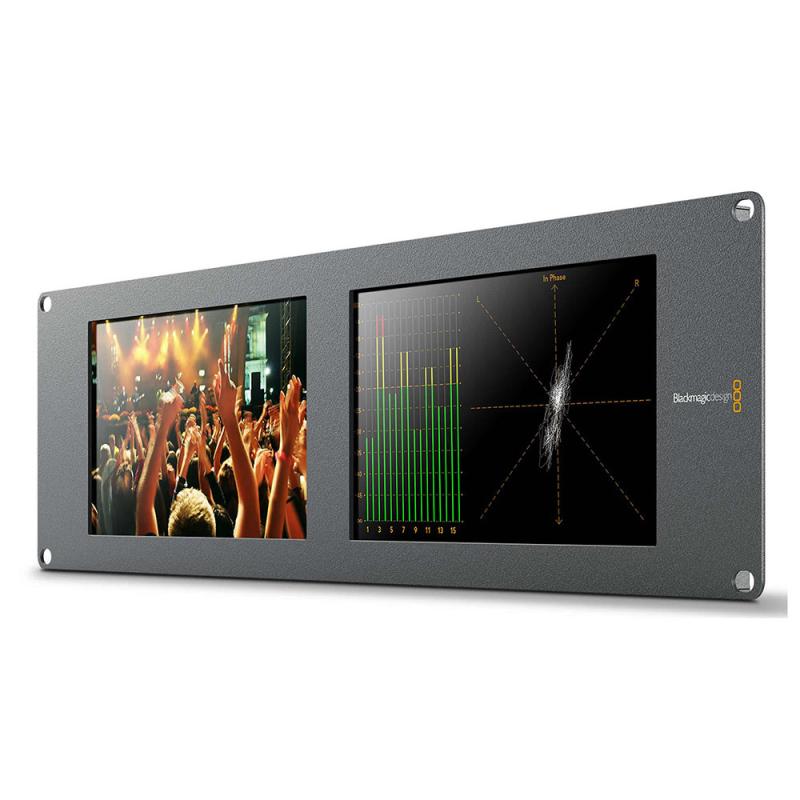

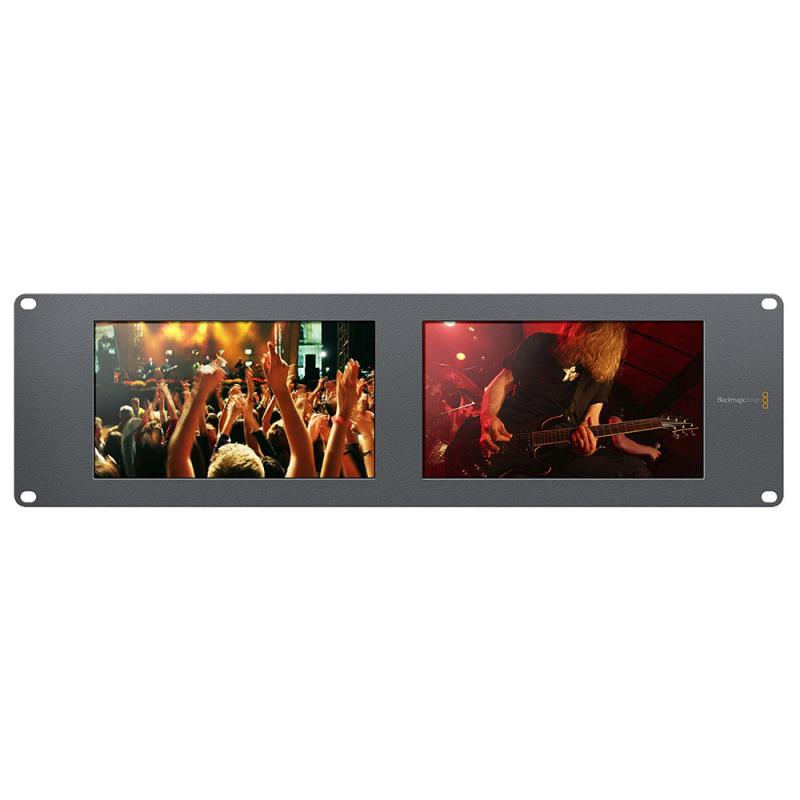

Blackmagic Design's SmartView Duo comprises a pair of side-by-side 8" LCD monitors – both with an auto-selecting 3G/HD/SD-SDI input – that are housed in a 3 RU-high, rackmountable form factor. Ideal for live broadcast and mobile video production, the slim SmartView Duo features integrated tally (input via a standard 9-pin D connector) that clearly shows video status by displaying a red, green, or blue ring that borders the screen in question.

The 800 x 480-resolution displays' auto-switching SDI inputs accept an extremely wide range of digital signals, from standard-def 525i and 625i to full progressive high-definition 1080p60 and several flavors of 2K-resolution video. There's a loop-out BNC for both inputs, with re-clocking of the signal. For screen configuration and settings, plus firmware updates, the SmartView Duo has both USB 2.0 and Ethernet inputs.

Before ordering, always check Blackmagic support center for system requirements.

Technical specifications

Display Size: 8.0" / 20.3 cm

Native Resolution: 800 x 480

Touchscreen: No

HDR Support: No

Media/Memory Card Slot: No

Wireless: No

Video Format: SDI (4:4:4)

                           576i

                           480i

                           720p: 60/59.94/50

                           1080i: 60/59.94/50

                           1080PsF: 30/29.97/25/24/23.98

                           1080p: 60/59.94/50/30/29.97/25/24/23.98

                           DCI 2K: 25/24/23.98

Battery: No

Power Consumption: 20 W (Maximum)

Panel Type: TFT LCD

Display Size: 8.0" / 20.3 cm

Native Resolution: 800 x 480

Aspect Ratio: 5:3

Touchscreen: No

Contrast Ratio: 500:1

Color Support: 16.7 Million Colors (8-Bit)

HDR Support: No

LUT Support: No

Image Controls: Histogram, RGB Parade

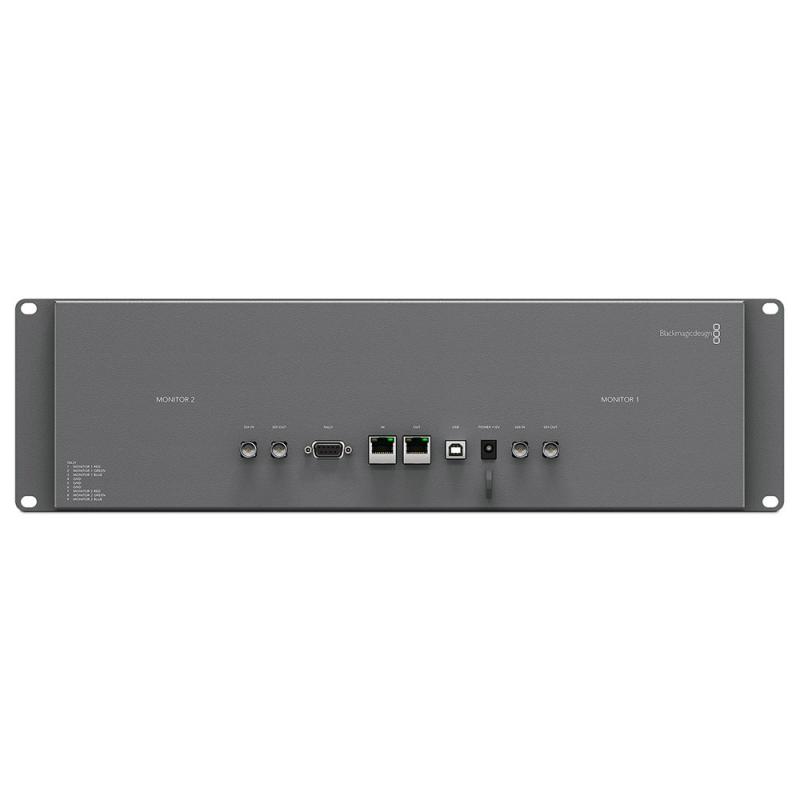

Video I/O:

             2x BNC (6G-SDI) Output

             2x BNC (6G-SDI) Input

Embedded Audio: SDI: 16-Channel

Audio I/O: No

Built-In Speaker: No

Power I/O: 1x Barrel (12 VDC) Input

Other I/O:
               1x USB-B 2.0

               1x DE-9/DB-9 (Tally)

                2x RJ45 (LAN)

Media/Memory Card Slot: No

Wireless: No

Wi-Fi: No

Bluetooth: No

Mobile App Compatible: No

Video Format: SDI (4:4:4)

                           576i

                           480i

                           720p: 60/59.94/50

                           1080i: 60/59.94/50

                           1080PsF: 30/29.97/25/24/23.98

                           1080p: 60/59.94/50/30/29.97/25/24/23.98

DCI 2K: 25/24/23.98

Input Power: 12 to 15 VDC

Battery: No

Power Consumption: 20 W (Maximum)

Rack Form Factor: 3 RU

Environmental Resistance: No

Operating Conditions: 32 to 104°F / 0 to 40°C

Storage Conditions: -4 to 113°F / -20 to 45°C

Dimensions: 19 x 5.24 x 1.38" / 48.3 x 13.3 x 2.5 cm

Weight: 3.37 lb / 1.53 kg

Package Weight: 4.65 lb

Box Dimensions (LxWxH): 19.25 x 6.6 x 2.75"

Included items

Blackmagic Design SmartView Duo Rackmountable Dual 8" LCD Monitors

12V Universal Power Supply with International Socket Adapters for All Countries

Limited 1-Year Manufacturer Warranty
