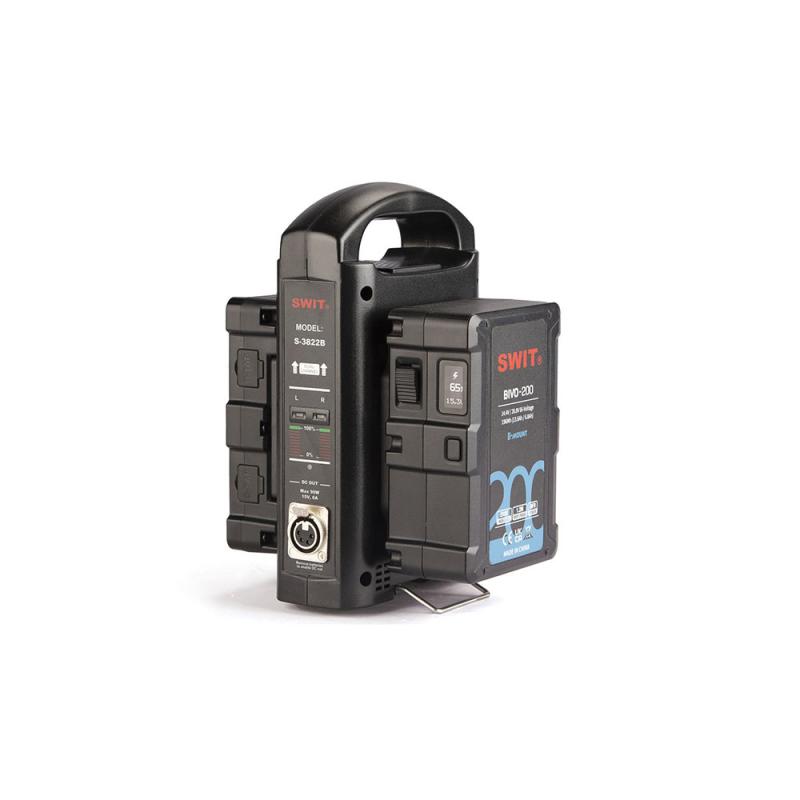

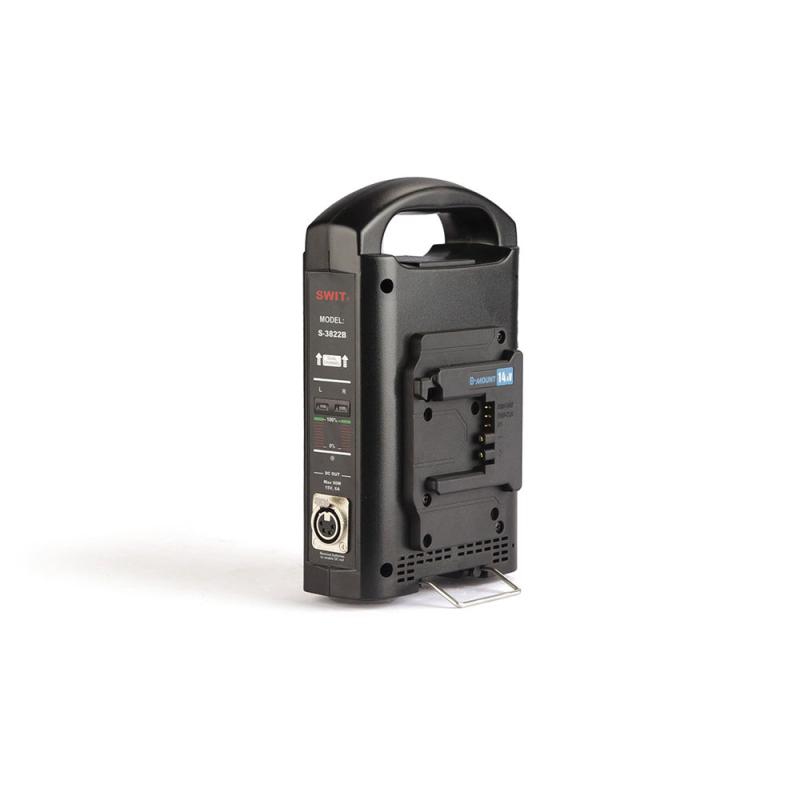

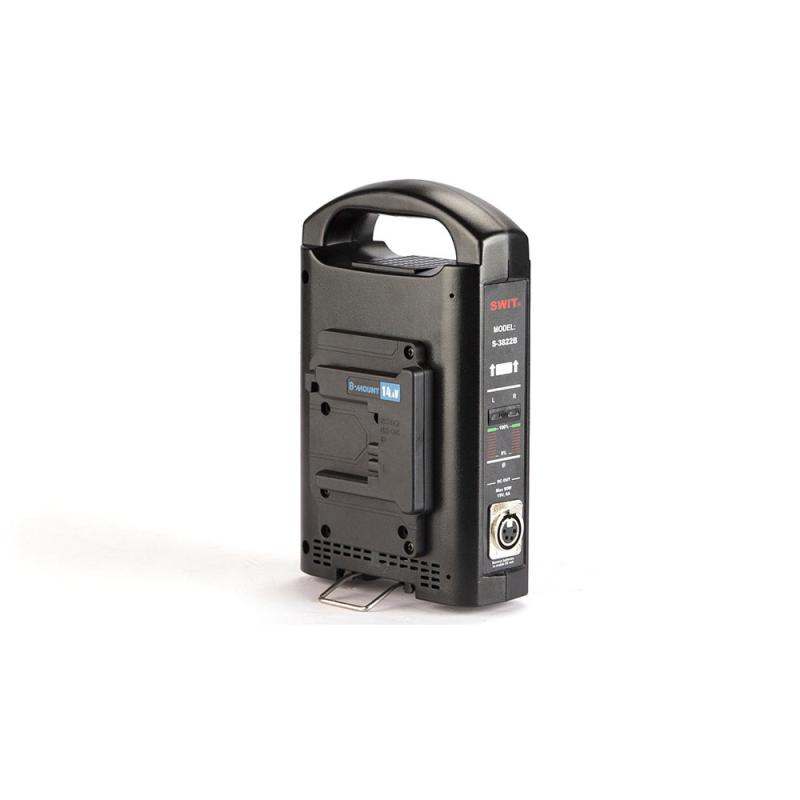

SWIT 2-ch B-mount Fast Charger (BIVO only)

2-ch simultaneous B-mount Charger
S-3822B is a portable 2-ch simultaneous charger for B-mount batteries. The charging output is DC 16.8V, 3A, 50W each channel.

14.4V Charging Mode
The S-3822B charges B-mount batteries at DC16.8V, compatible with the B-mount batteries that support 14.4V nominal voltage mode, like SWIT BIVO series, Bebob and CoreSWX Bi-voltage series.

LED Charging Indicators
S-3822B has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Red: the battery is under charging status
Green: the battery is fully charged
Red flash: Charging error, please check the battery

AC-DC Adapting Output
S-3822B has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 4-pin XLR female to male cable (optional purchase), you can use the charger as AC-DC adaptor of DC 15V, 6A, 90W output.

Key Features

2-ch simultaneous charging

DC 16.8V 3A 50W per channel

Charge B-mount batteries with 14.4V mode

Charge SWIT BIVO B-mount batteries

Charge Bebob and Core B-mount batteries

Support AC to 4-pin XLR output

Light weight and portable

Technical specifications

Charger Type: 1x Bay Charger for 2x Battery
Compatibility: Battery: B-Mount (16.8 V / 14.4 V
Charging Modes: Simultaneous
Power I/O: 1x XLR 4-Pin Female Input
Battery Bay Output Voltage: 16.8 VDC at 3 A
Dimensions: 8.9 x 5.6 x 3.5" / 226 x 141 x 90 mm
Weight: 2.2 lb / 1 kg
Operating Conditions: 32 to 113°F / 0 to 45°C at 10 to 90% Humidity

Included items

SWIT S-3822B 2-Channel Simultaneous Battery Charger (B-Mount)
Limited 2-Year Manufacturer Warranty
