SWIT 8x100W Ultra fast B-mount Wall Charger

8x100W Ultra Fast Wall Charger

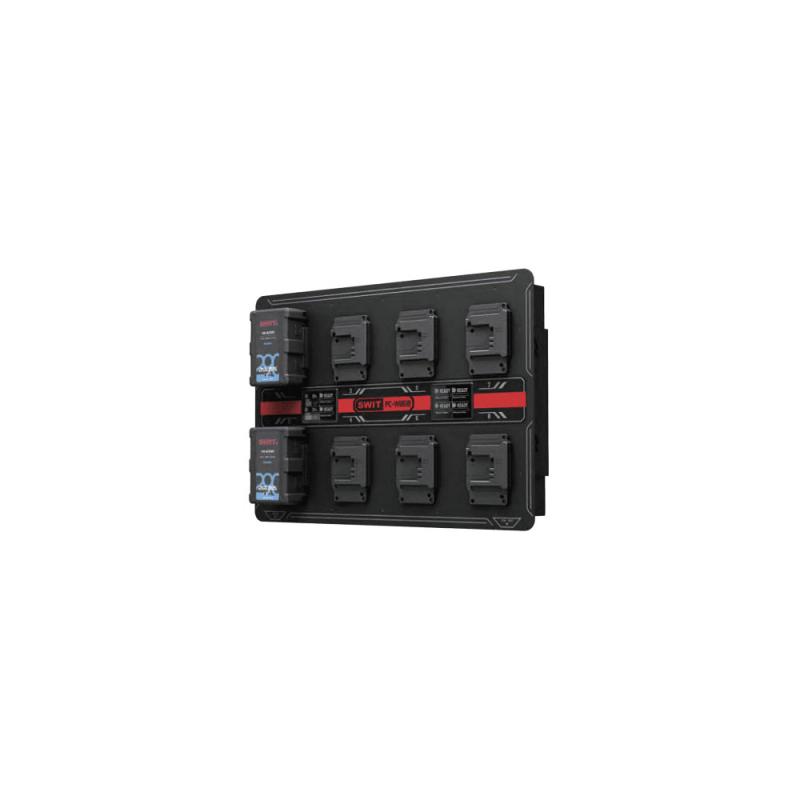

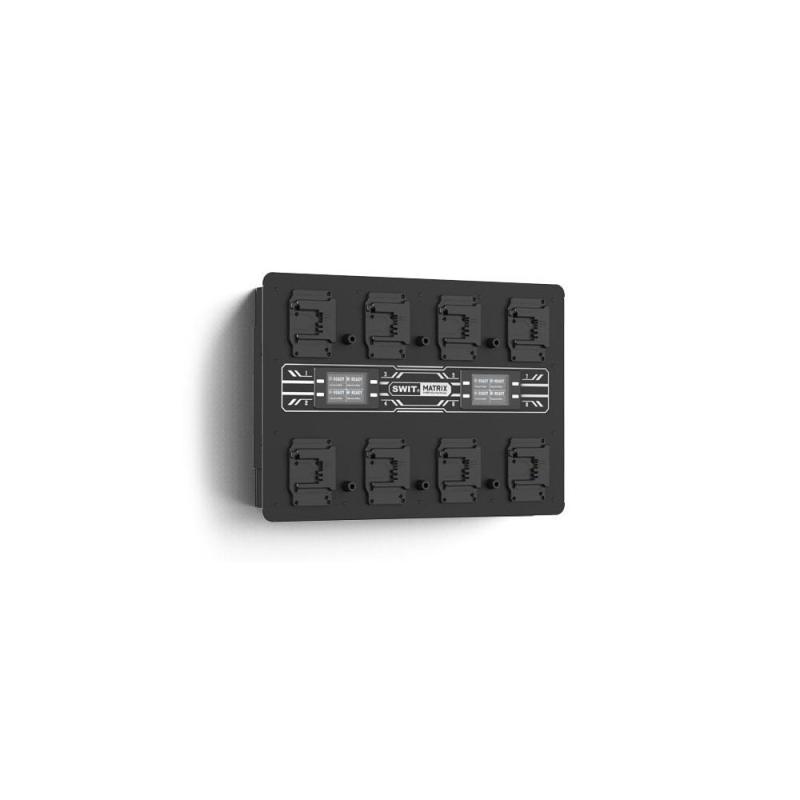

MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.

Flexible Wall Mounting Plate

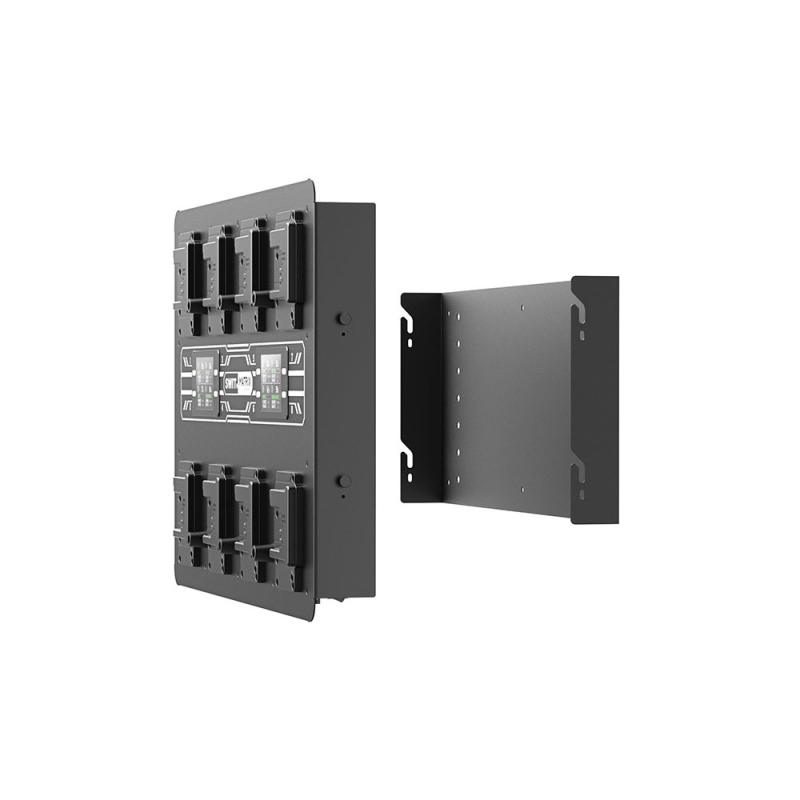

MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.

3.5-inch Color LCD and Indicators

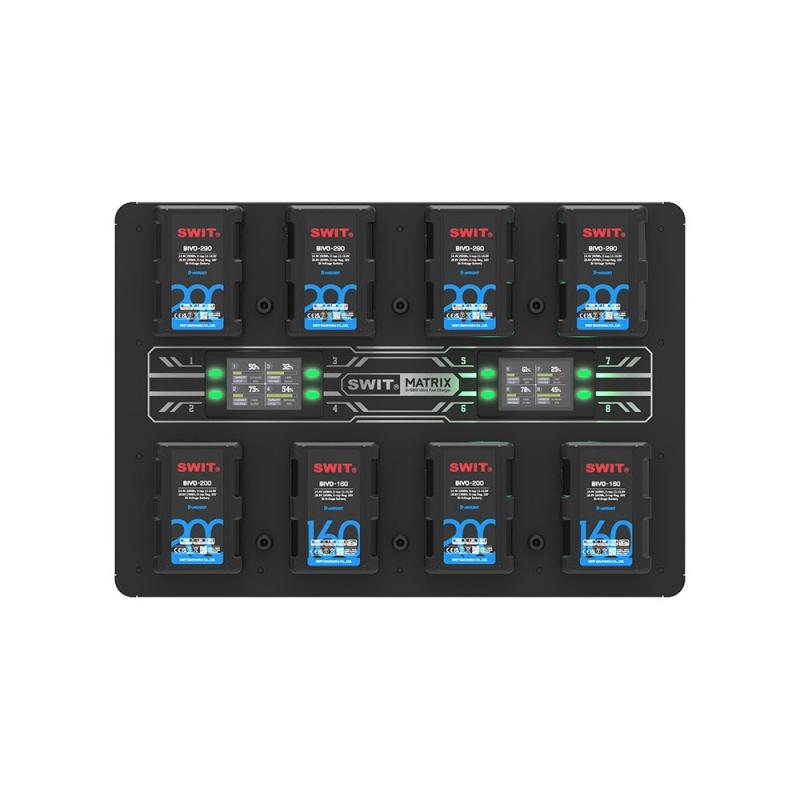

MATRIX-B8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.

Key Features

- 8-ch simultaneous B-mount fast charging
- DC33.6V, 3A, 100W for +160Wh batteries
- DC33.6V, 1.3A, 44W for <160Wh batteries
- 2x 3.5-inch color LCD info display
- Battery cycle times display
- Large LED charging indicators
- Wall mounting or 19-inch rack install

Technical specifications

Charger Type: 1x Bay Charger for 8x Battery
Compatibility: Battery: B-Mount (28.8 V / 14.4 V)
Charging Modes: Simultaneous
Power I/O: 1x Proprietary Female Input
Battery Bay Output Voltage: 33.6 VDC at 3 A, 33.6 VDC at 1.3 A
Recharge Time: 3-Hour 45-Minute (290 Wh Batteries)
2-Hour 45-Minute (196 Wh Batteries)
2-Hour 15-Minute (160 Wh Batteries)
2-Hour 45-Minute (98 Wh Batteries)
Indicator: Display
Dimensions: 24.8 x 17.2 x 3.5" / 630 x 436 x 89 mm
Weight: 23.4 lb / 10.6 kg

Included items

SWIT MATRIX-B8 8-Bay 100W Ultra Fast Wall Charger (B-Mount)
Limited 2-Year Manufacturer Warranty
