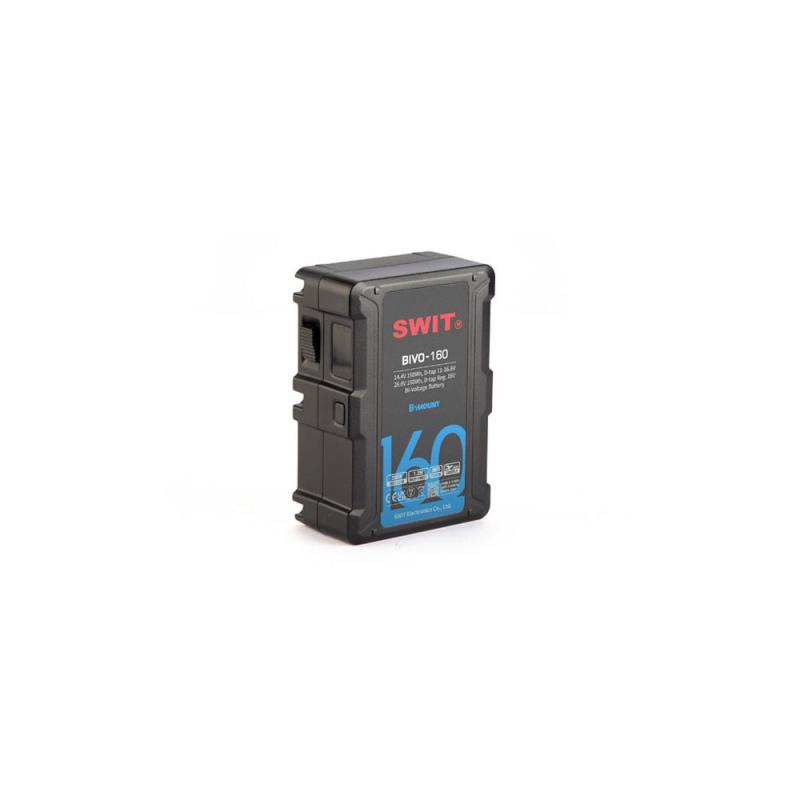

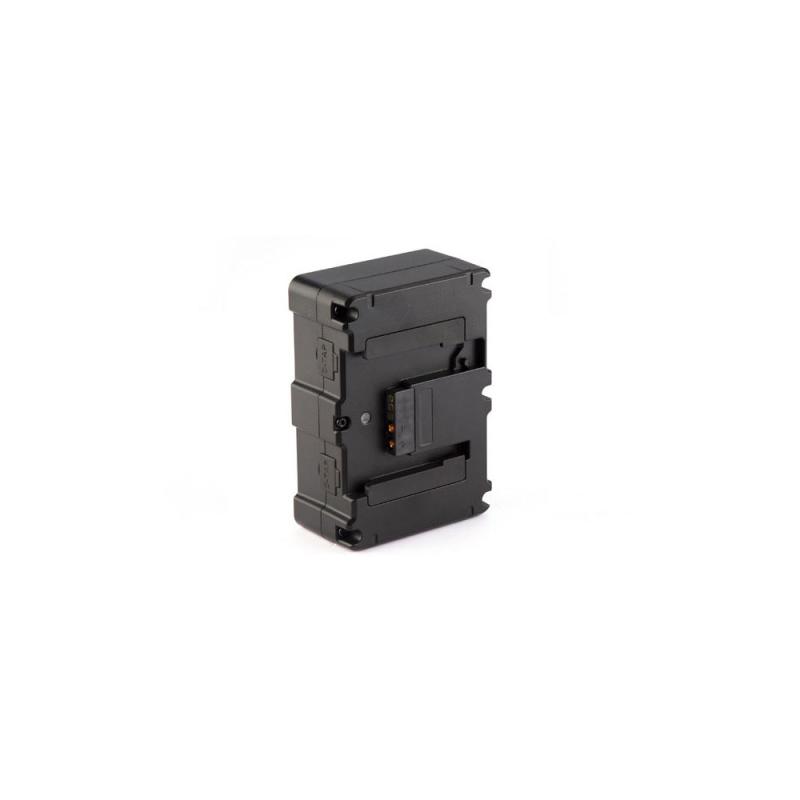

SWIT BIVO-160 160Wh 14V/28V High Load B-Mount Battery

BIVO-160 is a 14.4V(10.8-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

Key Features

14.4V/28.8V Bi-voltage B-mount
160Wh high capacity
200W constant high load
33.6V 100W fast charging
D-tap 11-16.8V output x2

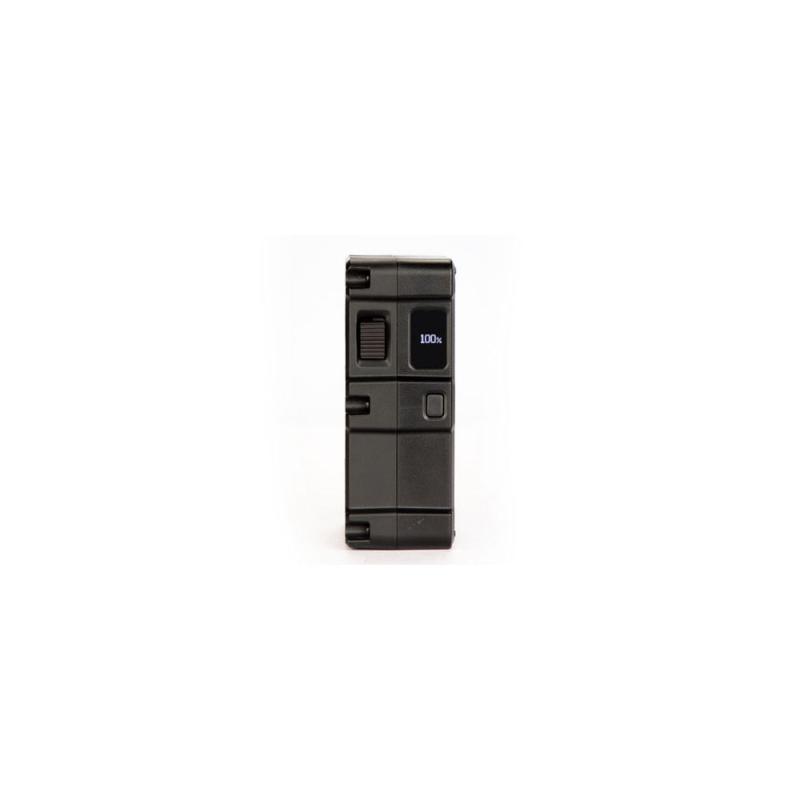

OLED power info display
Built-in LED torch
Strong 1.2m drop off proof
Multiple circuit protections

Technical specifications

Battery Type: 1x B-Mount
Battery Capacity: 160 mAh
Output Voltage: 28.8 VDC
Battery Chemistry: Lithium-Ion
Power I/O: 2x D-Tap/P-Tap Female Output, Output: 200 W Maximum (Up to 12.5 VDC at 16 A)
Accessory Mounting Thread: No
Indicator: Display
Dimensions: 5.7 x 3.9 x 2.1" / 14.4 x 10 x 5.4 cm
Weight: 2.4 lb / 1.1 kg
Operating Conditions: -4 to 122°F / -20 to 50°C
Package Weight: 2.555 lb
Box Dimensions (LxWxH): 6.3 x 4.2 x 2.4"

Included items

SWIT 14.4/28.8V Dual Voltage 160Wh B-Mount Battery
Limited 2-Year Manufacturer Warranty
