SWIT BIVO-290 290Wh 14V/28V High Load B-Mount Battery

BIVO-290 is a 14.4V(10.8-16.8V) and 28.8V (21.6-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears.

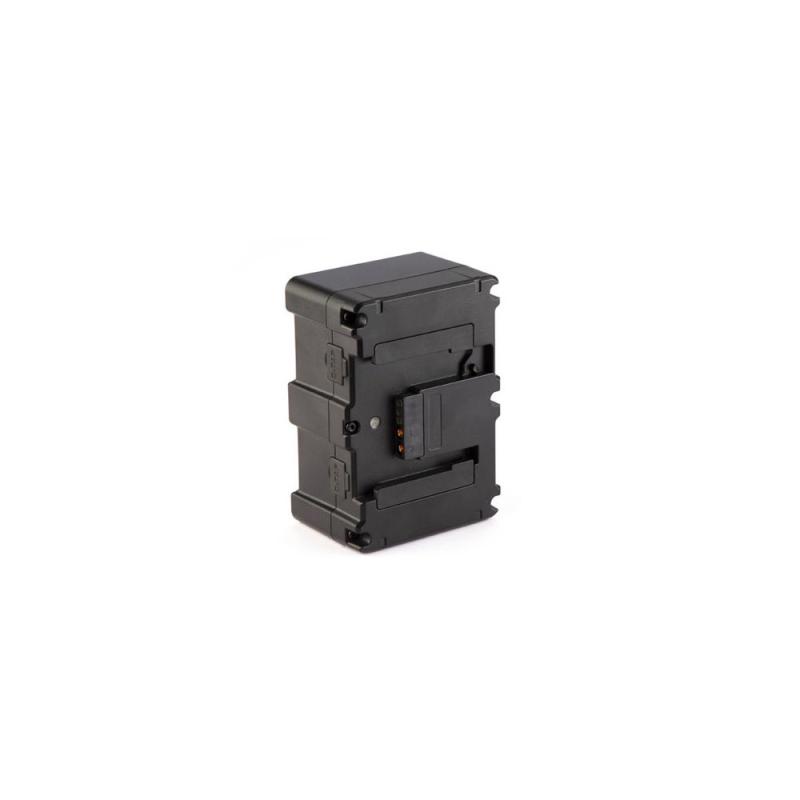

The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

Key Features

14.4V/28.8V Bi-voltage B-mount

290Wh high capacity

250W constant high load

33.6V 100W fast charging

D-tap 11-16.8V output x2

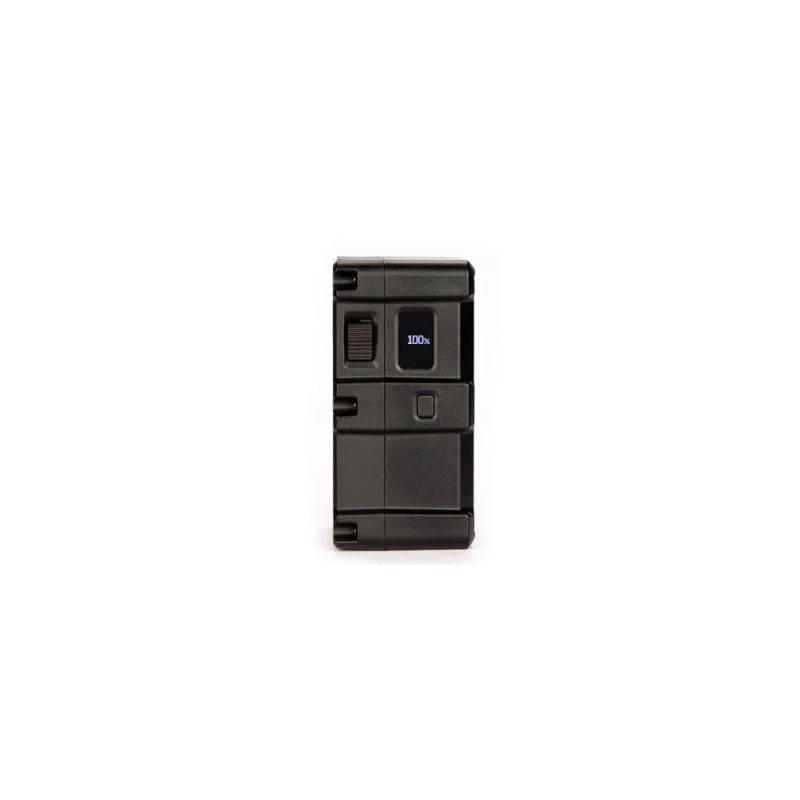

OLED power info display

Built-in LED torch

Strong 1.2m drop off proof

Multiple circuit protections

Technical specifications

Battery Type: 1x B-Mount
Battery Capacity: 290 Wh
Output Voltage: 14.4 VDC, 28.8 VDC
Battery Chemistry: Lithium-Ion
Power I/O: 2x D-Tap/P-Tap Female Output, Output: 250 W Maximum (Up to 28.8 VDC at 10 A, or up to 20 A at 14.4 VDC)
Accessory Mounting Thread: No
Indicator: Display
Dimensions: 5.7 x 3.9 x 2.8" / 14.5 x 9.9 x 7.1 cm
Weight: 3.35 lb / 1.52 kg
Operating Conditions: 32 to 104°F / 0 to 40°C
Package Weight: 3.5 lb
Box Dimensions (LxWxH): 6 x 4.9 x 3.1"

Included items

SWIT 14.4/28.8V Dual-Voltage 290Wh B-Mount Battery
Limited 2-Year Manufacturer Warranty
