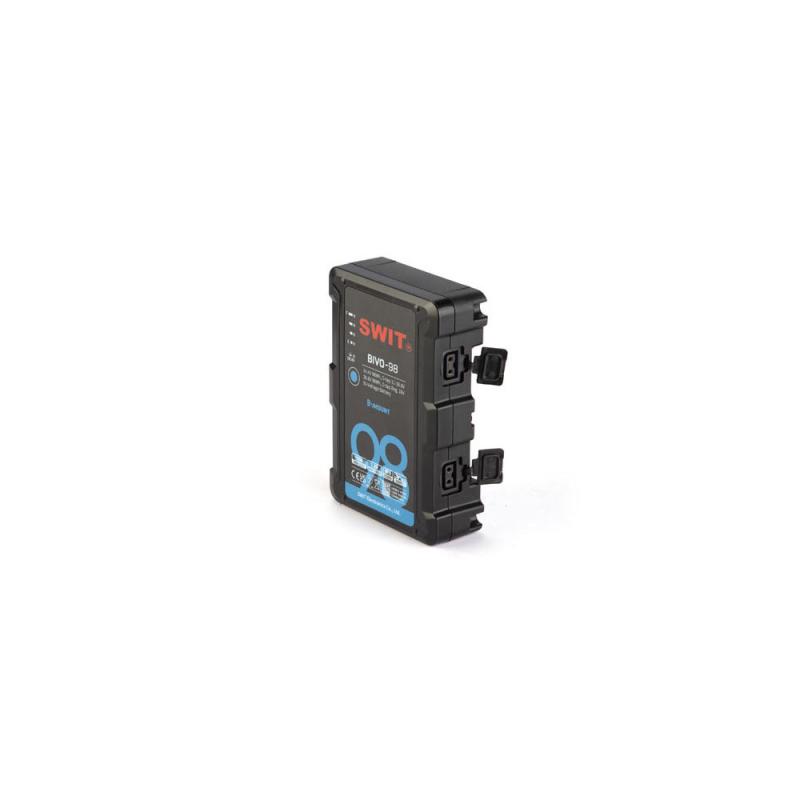

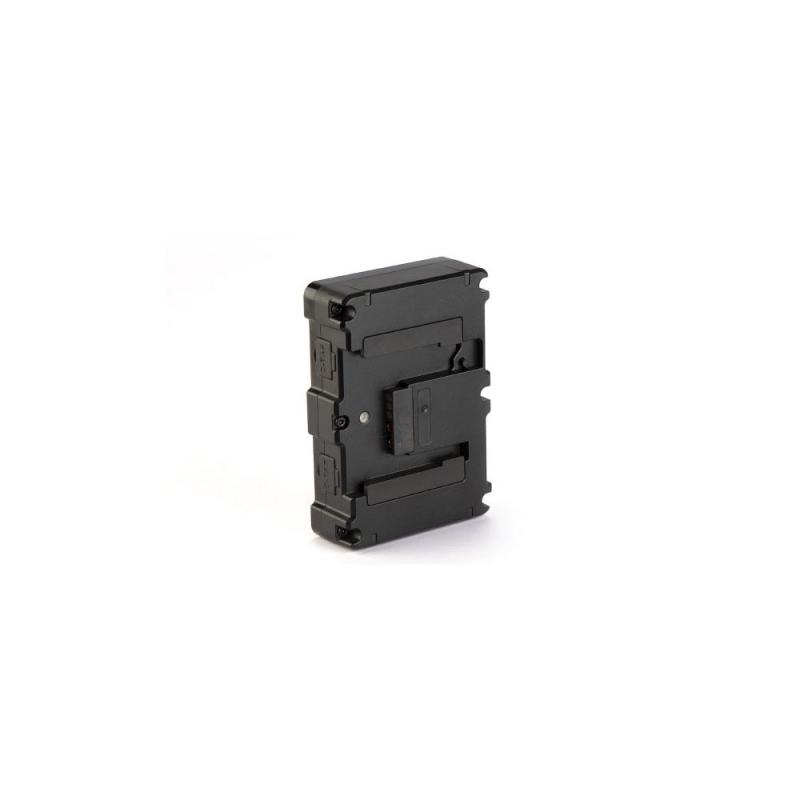

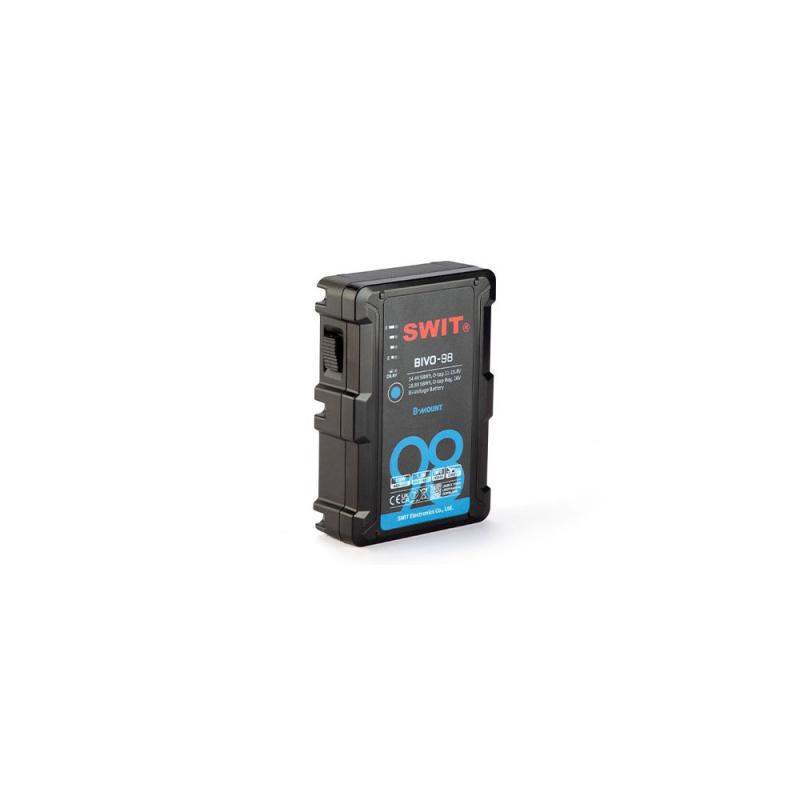

SWIT BIVO-98 98Wh 14V/28V High Load B-Mount Battery

BIVO-98 is a 14.4V(11-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

Key Features

14.4V/28.8V Bi-voltage B-mount

98Wh fly-friendly capacity

150W constant high load

D-tap 11-16.8V output x2

LED power & voltage indicators

Built-in LED torch

Strong 1.2m drop off proof

Multiple circuit protections

Technical specifications

Battery Type: 1x B-Mount
Battery Capacity: 98 mAh
Output Voltage: 28.8 VDC
Battery Chemistry: Lithium-Ion
Power I/O: 2x D-Tap/P-Tap Female Output, Output: 150 W Maximum (Up to 16.66 VDC at 12 A)
Accessory Mounting Thread: No
Indicator: Display
Dimensions: 5.7 x 3.9 x 1.5" / 14.4 x 10 x 3.8 cm
Weight: 1.5 lb / 668 g
Operating Conditions: -4 to 122°F / -20 to 50°C
Package Weight: 1.55 lb
Box Dimensions (LxWxH): 6.6 x 4.8 x 1.6"

Included items

SWIT 14.4/28.8V Dual Voltage 98Wh B-Mount Battery
Limited 2-Year Manufacturer Warranty
