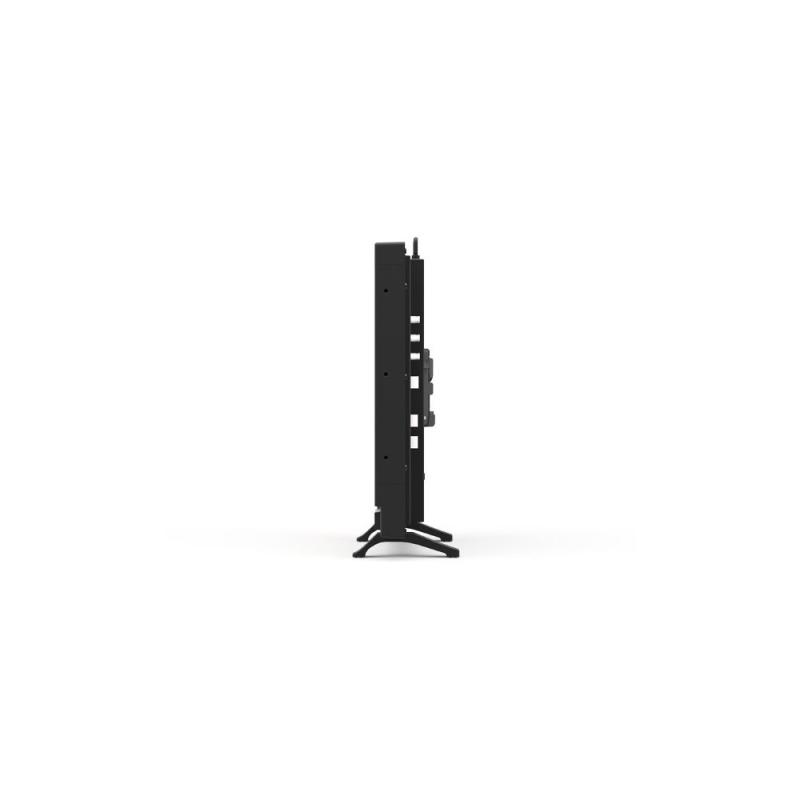

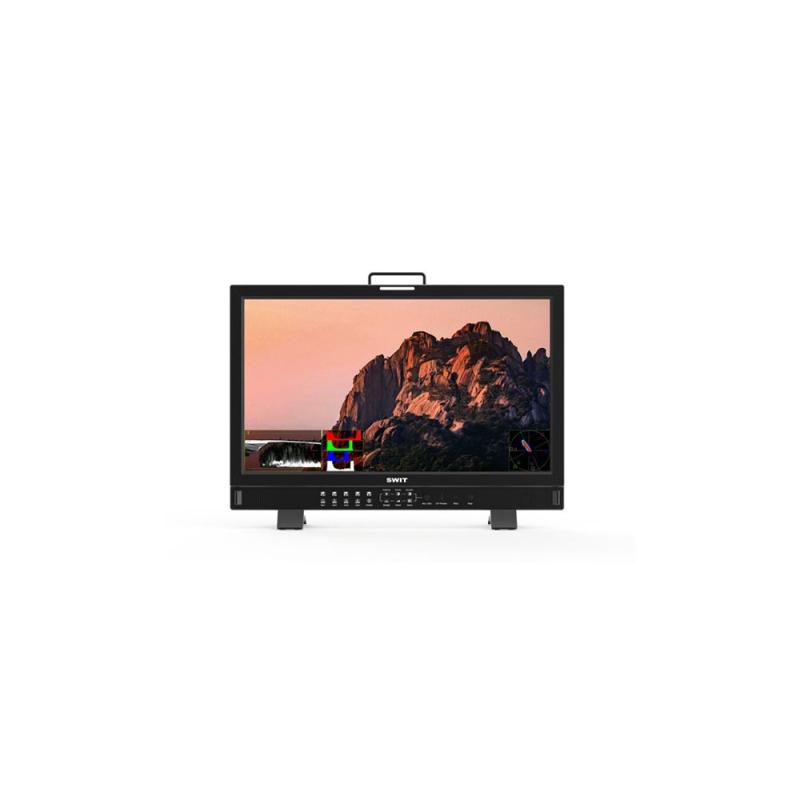

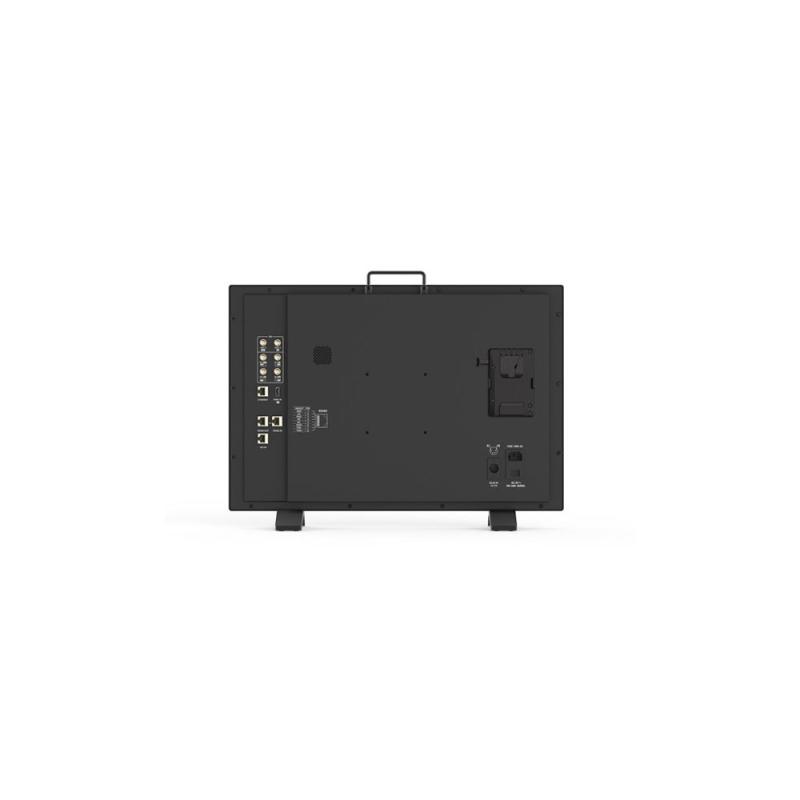

SWIT BM-H245 23.8in FHD Monitor 12G/3G/HDMI QLED HDR

23.8-inch QLED WCG Panel
FHD, 100% DCI-P3 Coverage

BM-H245 adopts a 23.8-inch1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, 1000:1 contrast, H/V 178degr. viewing angle for broadcast and film productions.

Key Features

23.8-inch 1920x1080 QLED Panel

100% DCI-P3 wide color gamut coverage

VICO 1.97 A-class Eye Protecting LCD

12G-SDI, 4x3G-SDI, HDMI2.0 4K input

4-ch SDI/HDMI mixed multiview

2-ch SDI/HDMI PBP or PIP view

Multi Color Gamut & HDR/SDR Viewing

Payload ID auto setting

18-bit internal color processing

Audio/Video Zero latency for lip-sync

3DLUT Auto Self-calibration without PC

Built-in Multi camera Delog LUTs

User 3DLUTs upload via USB

Waveform / Vector / Histogram / Eye pattern

Focus assist / False color / Zebra

16-ch audio meters / Lissajous pattern

5.1 & 7.1 surround sound phase pattern

IP webserver remote control

TSL UMD and text TALLY display

USB firmware upgrade

For technical specifications: https://www.swit.cc/index.php?...

Included items

SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)
V-Mount Battery Plate
2 x Monitor Stand
Power Cable
Limited 2-Year Manufacturer Warranty
