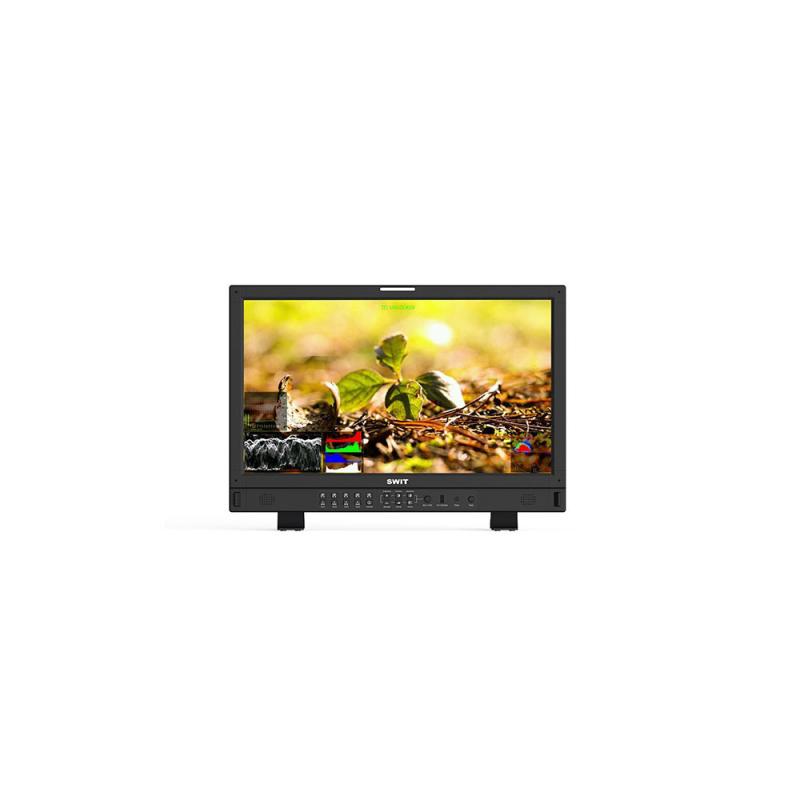

SWIT BM-U245HDR 23.8in 4K/8K 12GSDI HDR Studio Monitor

23.8-inch 1000nits 4K
UHD panel, 89% REC2020

BM-U245HDR adopts a 23.8-inch 10-bit LCD
panel, UHD 3840x2160 resolution, 1000nits LED
backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 color gamut. The viewing angle is H178degr. / V178degr.

Key Features

23.8-inch LCD Panel, 3840x2160 resolution

1000nits high bright LED backlight

HLG/PQ/S-log3 HDR, Payload ID auto setting

12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input

12GSDI via SFP Fiber input (Optional)

ST2110 IP via SFP Fiber input (Optional)

SFP Fiber 12G input converted to 12GSDI out

3DLUT Auto Self-calibration without PC

Audio/Video 0 latency for lip-sync

Built-in Multi camera Delog LUTs

User 3DLUTs upload via USB

Waveform / Vector / Histogram

Focus assist / False color / Zebra

16-ch audio meters / Lissajous

IP webserver remote control

TSL UMD and text TALLY display

USB firmware upgrade

For technical specifications: https://www.swit.cc/index.php?...

Included items

SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
V-Mount Plate
2 x Desktop Foot
Limited 2-Year Manufacturer Warranty
