SWIT FM-215HDR 21.5 inch 1000nits 12G-SDI HDR Field Monitor

21.5" Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.

1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QLED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:
12G-SDI 4K in and out
4x 3G-SDI Quadlink 4K input
HDMI 2.0 4K input

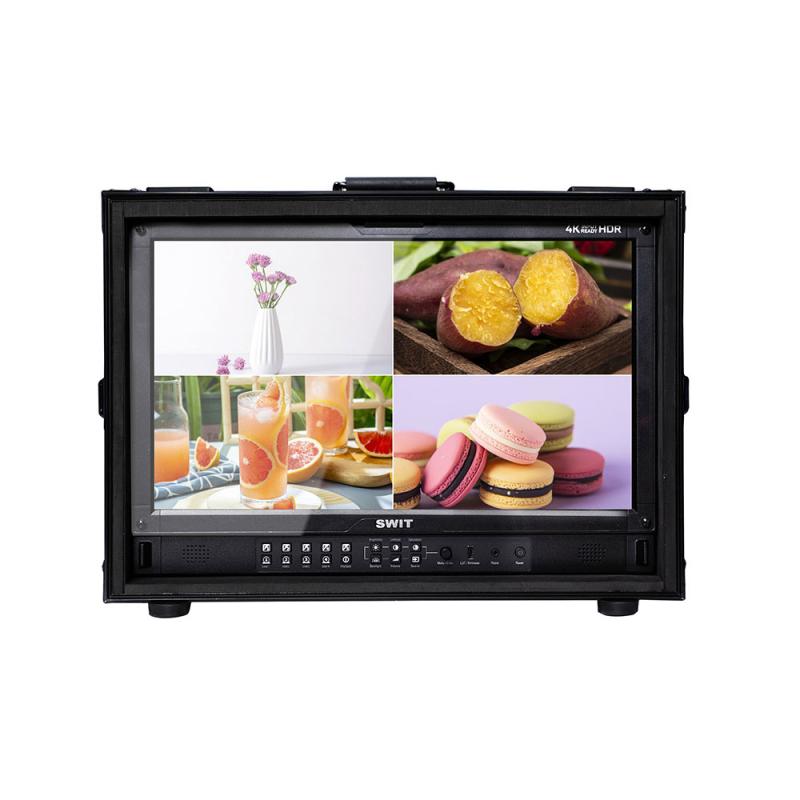

Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

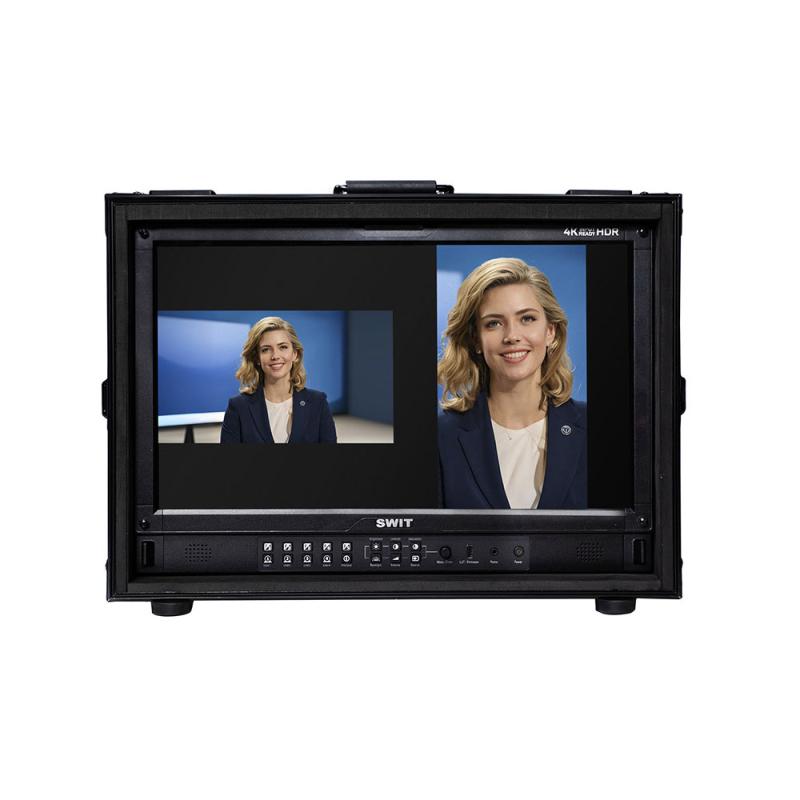

H/V Multi-platform Livestreaming View
1x input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

Multiple Video Analysis Patterns
Waveform Y/Cb/Cr/R/G/B with Nits mark
Vector scope
Red/Blue Peaking focus assist
R/G/B/Mono mode
Single line waveform
R/G/B/Y Histogram
Over exposure zebra stripes
False color

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.

Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

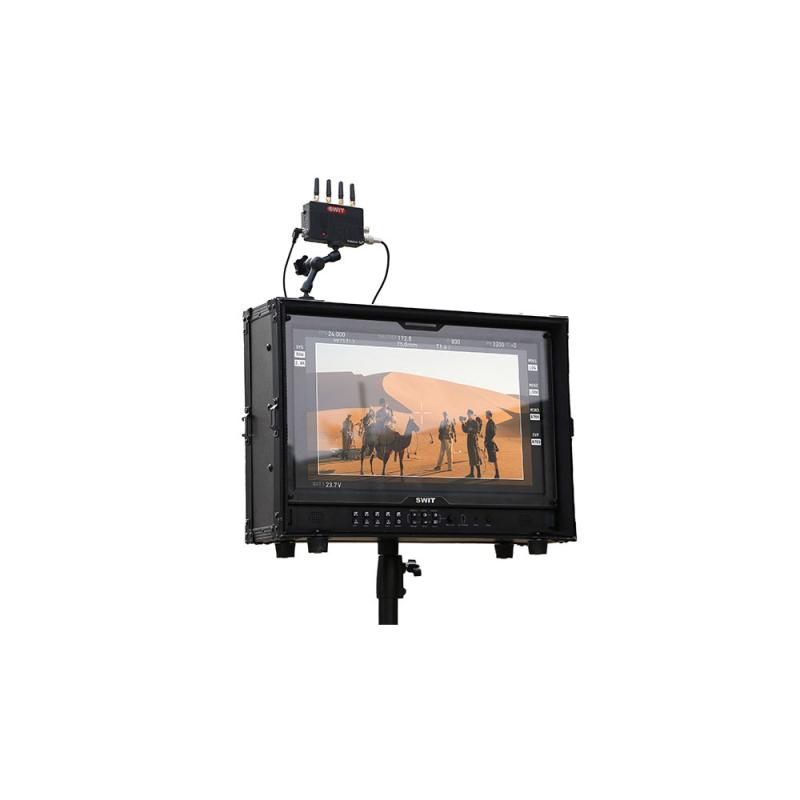

2x Top Cheese Boards
On the top of the flight case, 2x cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4" and 3/8" screw threads.

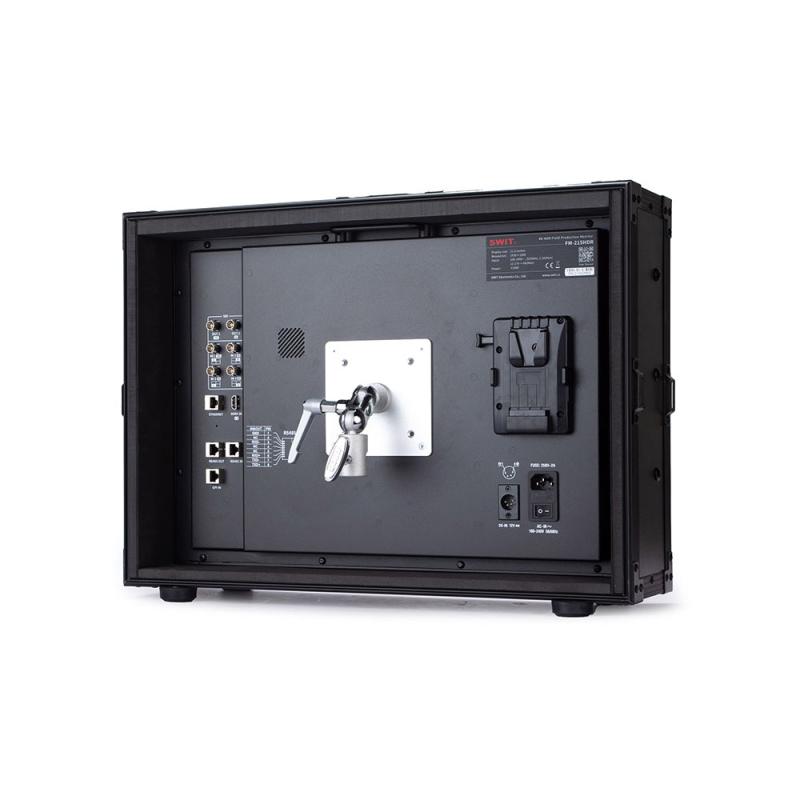

Optional VESA to C-stand Bracket
The monitor has standard 10x10 VESA mount, and provides VESA to 5/8" baby-pin C-stand / Light stand adaptor bracket. (Optional purchased accessory)

Key Features

21.5-inch 1920x1080 QLED Panel

1000nits high bright HDR

100% DCI-P3 wide color gamut coverage

VICO 1.97 A-class Eye Protecting LCD

12G-SDI, 4x3G-SDI, HDMI2.0 4K input

4-ch SDI/HDMI mixed multiview

2-ch SDI/HDMI PBP or PIP view

Multi Color Gamut & HDR/SDR Viewing

Payload ID auto setting

18-bit internal color processing

Audio/Video Zero latency

3DLUT Auto Self-calibration without PC

Built-in Multi camera Delog LUTs

User 3DLUTs upload via USB

Waveform / Vector / Histogram / Eye pattern

Focus assist / False color / Zebra

16-ch audio meters / Lissajous pattern

5.1 & 7.1 surround sound phase pattern

IP webserver remote control

TSL UMD and text TALLY display

USB firmware upgrade

Technical specifications

Display Size: 21.5" / 54.6 cm
Native Resolution: 1920 x 1080
Touchscreen: No
HDR Support: Yes: Hybrid Log Gamma
Media/Memory Card Slot: No
Wireless: No
Video Format: SDI: DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50
Battery: 1x V-Mount on Included, Interchangeable Plate
Power Consumption: 60 W
Panel Type: Quantum Dot LCD (QLED)
Display Size: 21.5" / 54.6 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle: Horizontal: 178°, Vertical: 178°
Touchscreen: No
Maximum Brightness: 1000 nits / cd/m2
Contrast Ratio: 1000:1
Color Support: 1.07 Billion Colors (10-Bit)
HDR Support: Yes: Hybrid Log Gamma
Image Controls: Anamorphic De-Squeeze, Histogram, Vectorscope, Waveform
Video I/O: 1x BNC (12G-SDI) Input
3x BNC (3G-SDI) Input
1x HDMI 2.0 Input
1x RJ45 LAN Input
1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Output
Embedded Audio: HDMI/SDI
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: Mono
Power I/O: 1x XLR 4-Pin Input
Other I/O: 1x RJ45 (RS-485) Input
1x RJ45 (GPI) Input
1x RJ45 (RS-485) Output
Media/Memory Card Slot: No
Wireless: No
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: No
Video Format: SDI: DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50
Input Power: 12 to 17 VDC
Battery: 1x V-Mount on Included, Interchangeable Plate
Power Consumption: 60 W
VESA Mounting-Hole Pattern: 10 x 10 mm
Tripod/Accessory Mounting: Bottom: 1/4"-20 Female
3/8"-16 Female
Operating Conditions: 32 to 122°F / 0 to 50°C at 10 to 90% Humidity
Storage Conditions: 5 to 140°F / -15 to 60°C
Dimensions: 22.4 x 15.9 x 10.2" / 570 x 405 x 260 mm (Including Case)
Weight: 30.86 lb / 14.00 kg, Including Case
Package Weight: 37.435 lb
Box Dimensions (LxWxH): 25.4 x 20.7 x 15.1"

Included items

SWIT 21.5" Quad-Link 4K Production Monitor
Screen Protector
2 x Cheese-Style Plate
V-Mount Battery Plate
Power Cable
Flight Case
Limited 2-Year Manufacturer Warranty
