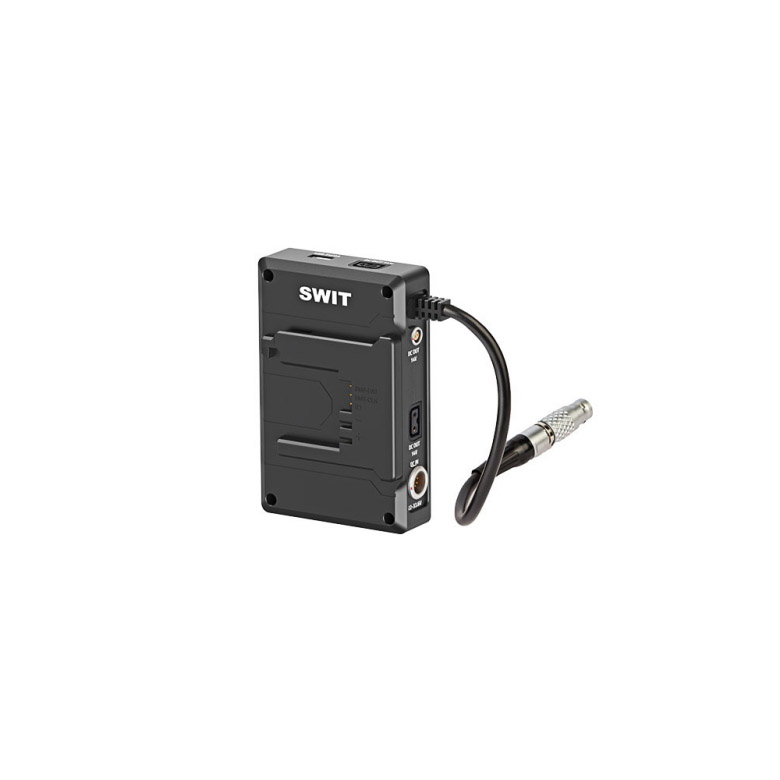

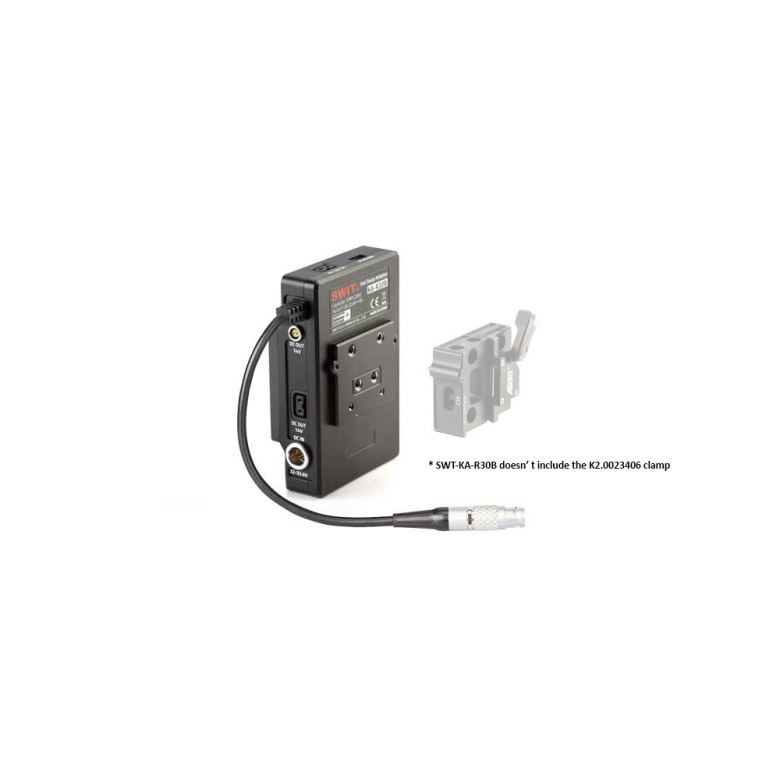

SWIT KA-R30B B-mount Hotswap Plate for MINI / MINI LF

KA-R30B is a B-mount hot-swap plate for ARRI Alexa MINI / MINI LF install, power cameras at 28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need to switch off the camera when changing battery.

Key Features

Dedicated for Alexa MINI / MINI LF install

B-mount battery attach

8-pin LEMO output to camera

28V, 32Wh 3Ah battery cells inside

200W constant high load

At least 2 minutes run time

120 seconds countdown display

2x D-tap regulated 14V output

1x 2-pin LEMO regulated 14V output

USB 5V/2A x1 power output

22-33.6V 8-pin input for power station hotswap

Aluminum CNC unibody housing

Multiple circuit protections

Included items

SWIT Hotswap B-Mount Plate for ARRI ALEXA Mini/Mini LF
15mm Rod Adaptor
