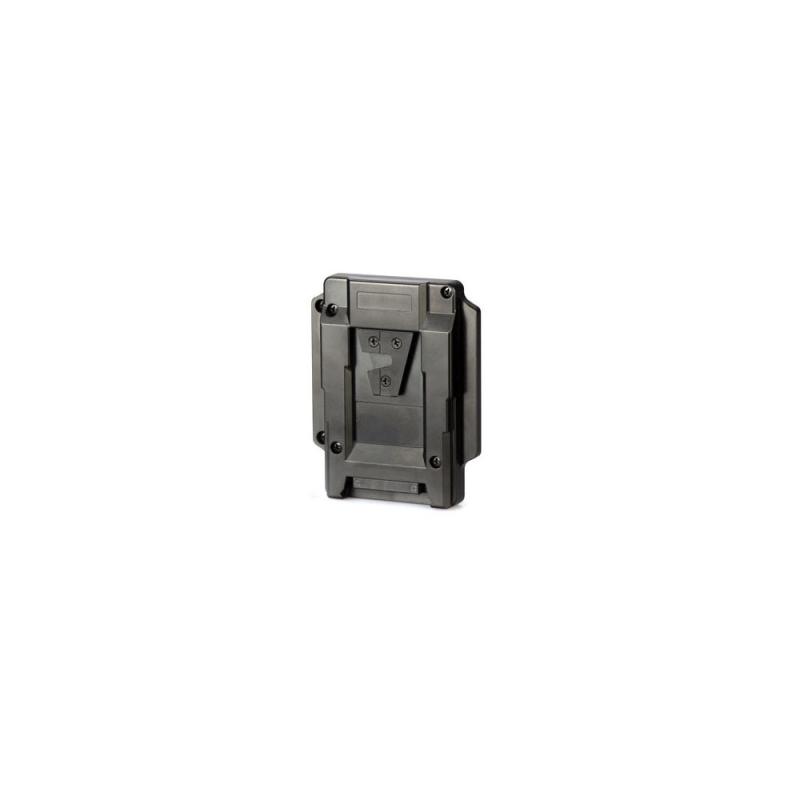

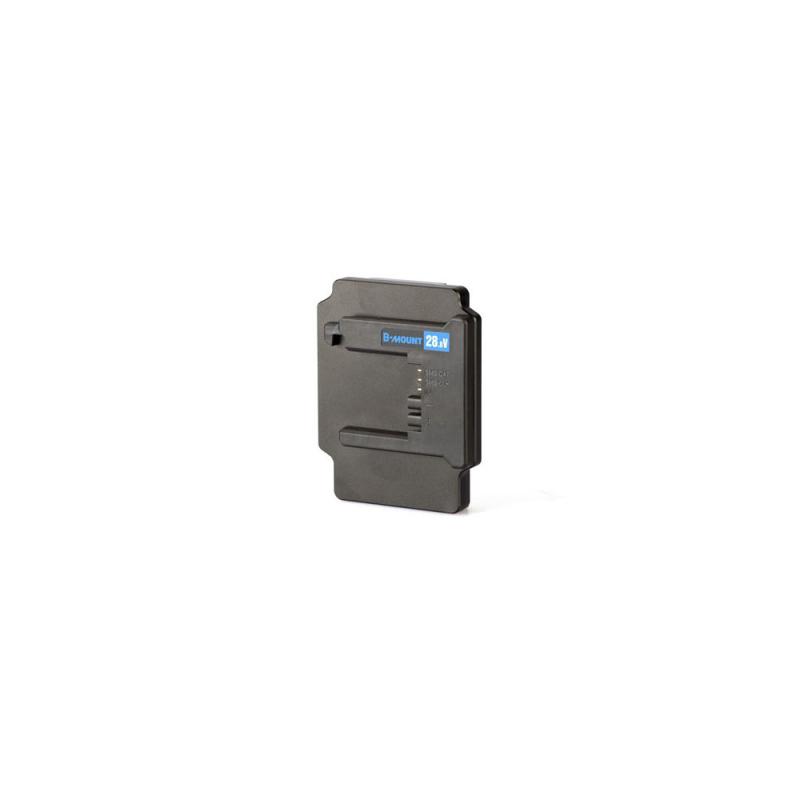

SWIT KA-S21B B-mount battery to V-Mount 28.8V Plate

B-mount to V-mount 28.8V
KA-S21B conversion plate is to use the B-mount battery to power V-mount cameras or other devices. The ID pin of the B-mount plate is 28.8V, so the V-mount output voltage is 21.6-33.6V range. Please make sure the V-mount cameras or devices support up to 33.6V input.

Key Features

V-mount device to use B-mount battery

28.8V (21.6-33.6V) input & output

SWIT HB-A290B and BIVO series compatible

RED V-Raptor XL 28.8V power solution

Thinner and light weight

Technical specifications

Plate Front / Battery Mount: B-Mount
Plate Rear Mount: V-Mount Battery Plate
Number of Battery Bays: 1
Dimensions: 8.3 x 5.5 x 1" / 21.1 x 14 x 2.5 cm
Weight: 0.5 lb / 227 g
Package Weight: 0.44 lb
Box Dimensions (LxWxH): 4.85 x 4.4 x 1.2"

Included items

SWIT KA-S21B B-Mount to V-Mount Conversion Plate (28.8V)
Limited 2-Year Manufacturer Warranty
