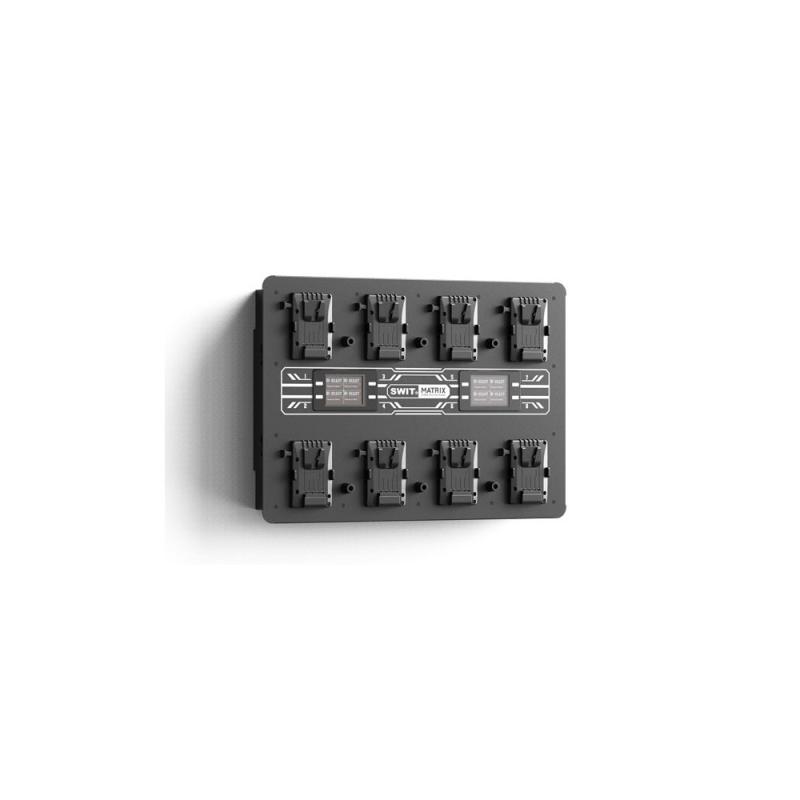

SWIT MATRIX-S8 8ch Ultra fast 14/28V V-Mount Wall Charger

8x100W Ultra Fast Wall Charger
MATRIX-S8 is an 8-ch simultaneous V-mount wall charger with 100W ultra fast charging speed each channel, save up to 60% charging time comparing to normal chargers, supports both 14.4V and 28.8V batteries, for TV stations and rental houses installation.

Key Features

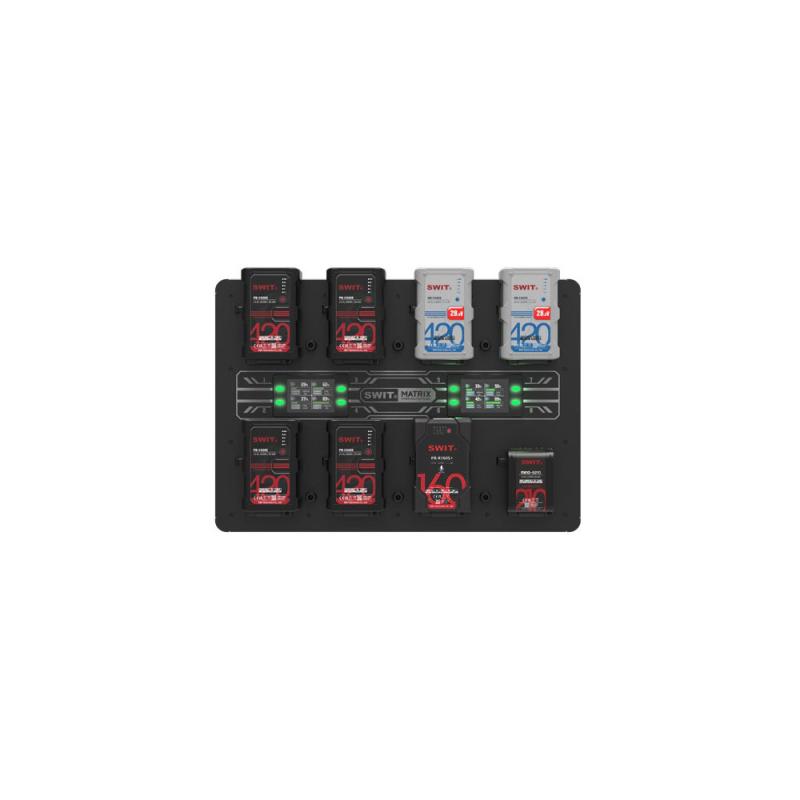

8-ch simultaneous fast charging

Charge both 14.4V and 28.8V V-mount batteries

100W/6A for SWIT 14.4V & +160Wh batteries

100W/3A for SWIT 28.8V & +160Wh batteries

50W/3A for other batteries

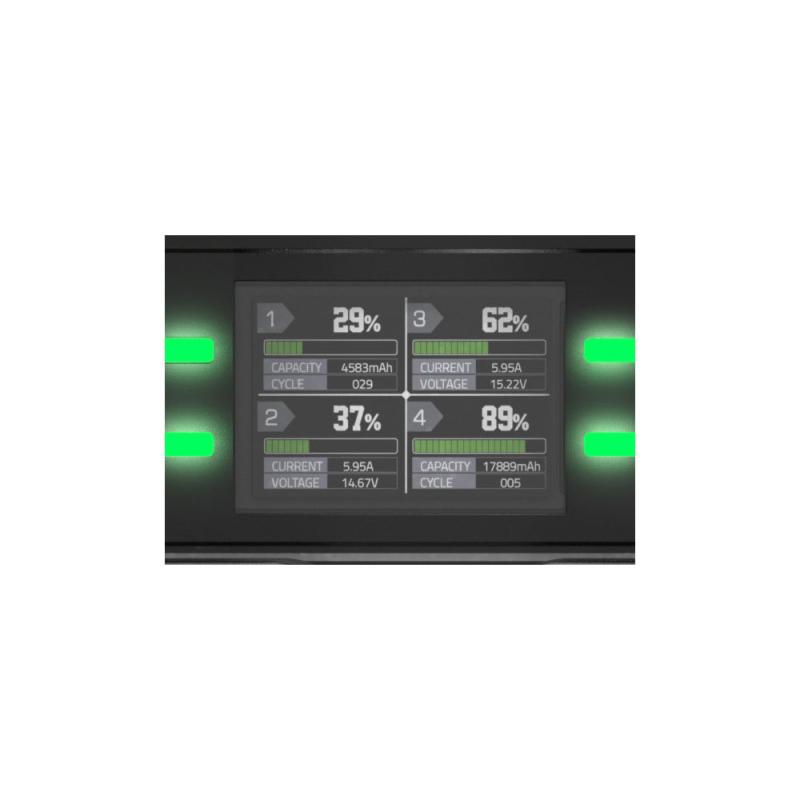

2x 3.5-inch color LCD info display

Battery cycle times display

Large LED charging indicators

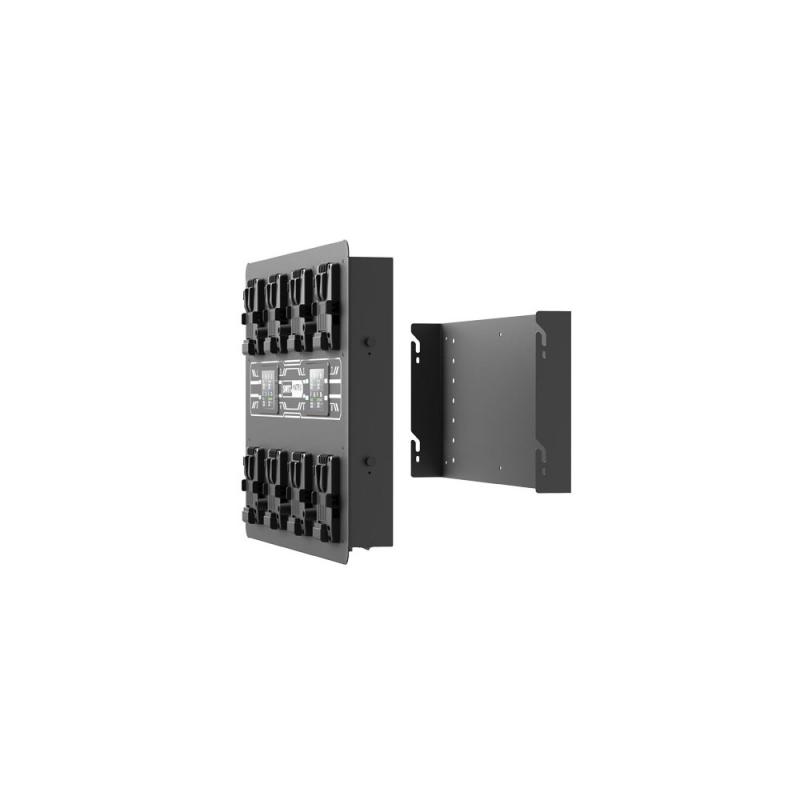

Wall mounting or 19-inch rack install

Technical specifications

Charger Type: 1x Bay Charger for 8x Battery
Compatibility: Battery: V-Mount (28.8 V / 14.4 V)
Charging Modes: Simultaneous
Power I/O: 1x Proprietary Female Input
Battery Bay Output Voltage: 16.8 VDC at 6 A
33.6 VDC at 3 A
16.8 VDC at 3 A
Recharge Time: 5-Hour 15-Minute (420 Wh Batteries)
3-Hour 45-Minute (290 Wh Batteries)
3-Hour 15-Minute (220 Wh Batteries)
3-Hour (210 Wh Batteries)
2-Hour 15-Minute (160 Wh Batteries)
Indicator: Display
Dimensions: 24.8 x 17.2 x 3.5" / 630 x 436 x 89 mm
Weight: 23.4 lb / 10.6 kg
Package Weight: 33.445 lb
Box Dimensions (LxWxH): 28.6 x 22 x 6.1"

Included items

SWIT MATRIX-S8 8-Bay 100W Ultra Fast Wall Charger (V-Mount)
Limited 2-Year Manufacturer Warranty
