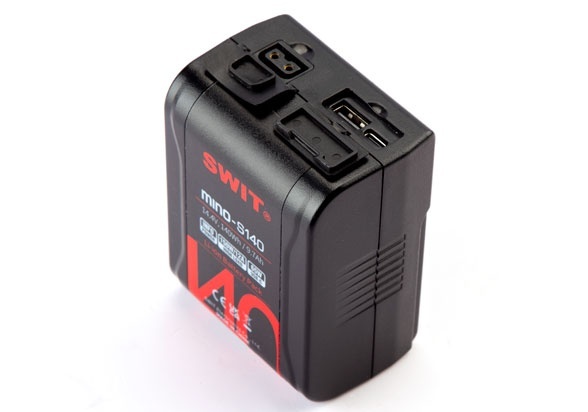

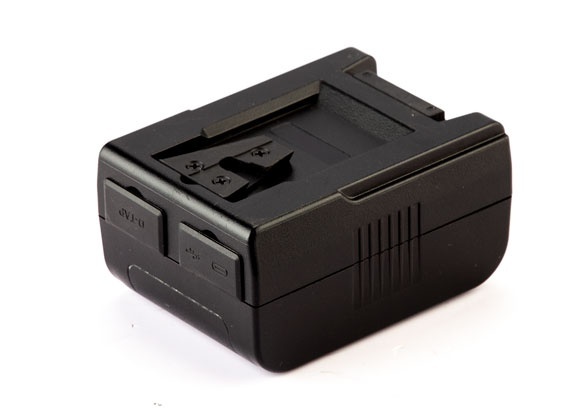

SWIT Mino 140Wh Pocket V-mount Battery

MINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.

Key Features

Tiny V-mount battery, Pocket fit

Support RED V-Raptor install

140Wh/9.7Ah high capacity

150W/12A constant high load

1x D-tap output & charging input

1x USB-A 5V/2A output

1x USB-C 48W input & 65W output

4-step LED power indicator

Power info for both SONY & RED

Wire-Free internal technic

Strong 1.2 meters drop-off proof

Multiple circuit protections

Technical specifications

Battery Type: 1x V-Mount
Battery Capacity: 9700 mAh / 140 Wh
Output Voltage: 14.4 VDC
Battery Chemistry: Lithium-Ion

Power I/O: 1x D-Tap/P-Tap Female Input/Output

Input: 50 W Maximum (Up to 16.8 VDC at 3 A)

Output: 120 W Maximum

1x USB-A Female Output

Output: 10 W Maximum (Up to 5 VDC at 2 A)

1x USB-C Female Input/Output

input: 48 W Maximum (Up to 20 VDC at 2.4 A)

Output: 65 W Maximum (Up to 20 VDC at 3.25 A)

Accessory Mounting Thread: No
Indicator: Status Light
Dimensions: 4.1 x 3.1 x 2.2" / 105 x 79.6 x 55.5 mm
Weight: 1.6 lb / 713 g

Included items

SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)
Limited 2-Year Manufacturer Warranty
