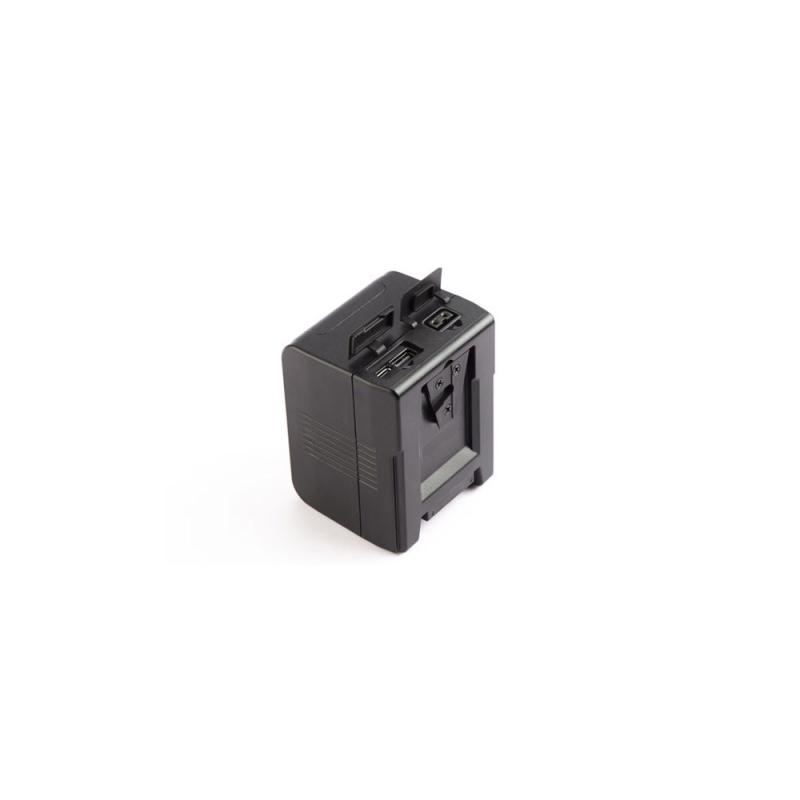

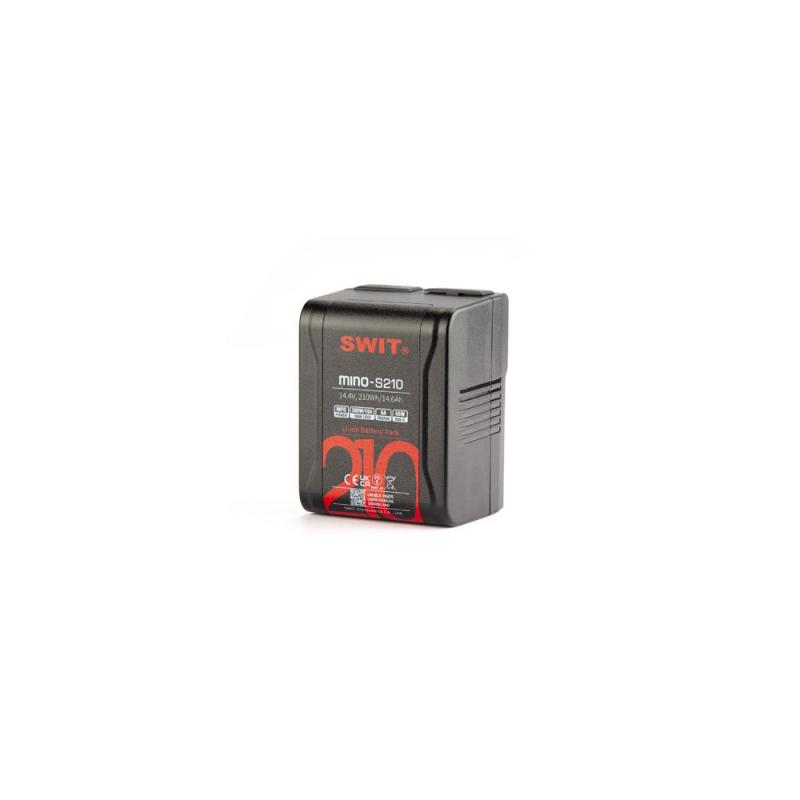

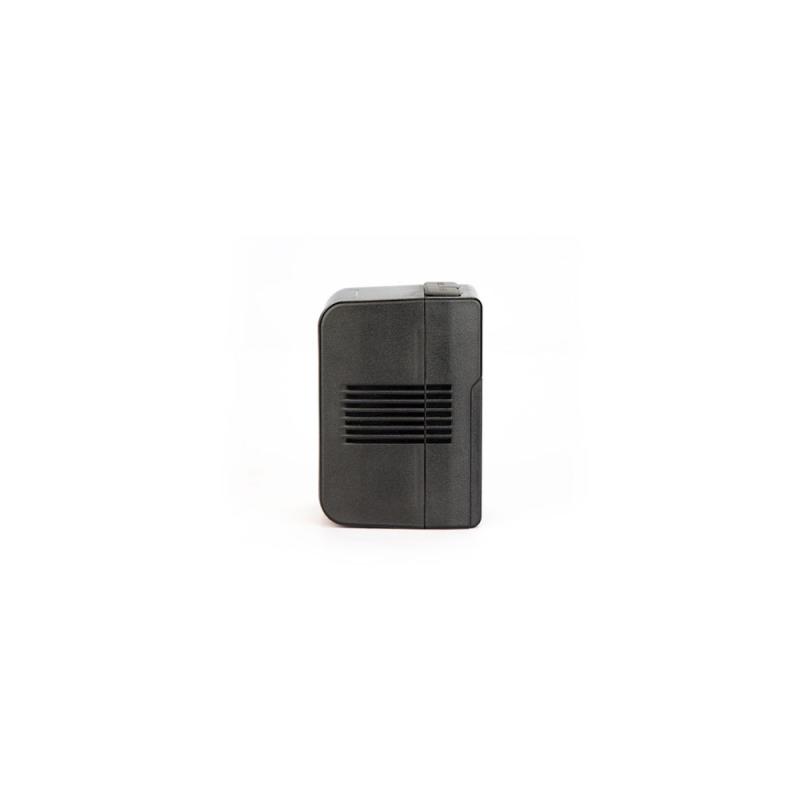

SWIT Mino 210Wh Pocket V-mount Battery Pack

MINO-S70 is a pocket fit tiny size V-mount battery for handheld cameras, monitors and other camera gears. It powers RED V-raptor for at least 1 hour and offers minimum weight for stablizer installation.

Key Features

Pocket fit compact V-mount battery

Support RED V-Raptor install

210Wh/14.6Ah high capacity

200W/16A constant high load

100W/6A ultra fast charging

1x D-tap output & charging input

1x USB-A 5V/2A output

1x USB-C 48W input & 65W output

4-step LED power indicator

Power info for both SONY & RED

Wire-Free internal technic

Strong 1.2 meters drop-off proof

Multiple circuit protections

Technical specifications

Battery plate: V-mount
Nominal voltage: 14.4V
Capacity: 210Wh, 14.6Ah

Power IN&OUT

Electrodes: 200W 16A out, 16.8V 6A in

D-tap: 120W 10A out, 16.8V 6A in

USB-A: 10W, 5V/2A out

USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A

BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP

Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A

Dimension: 105×79.6×73.8mm (Fit RED Raptor)
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: 1.02kg; With package 1.05kg
