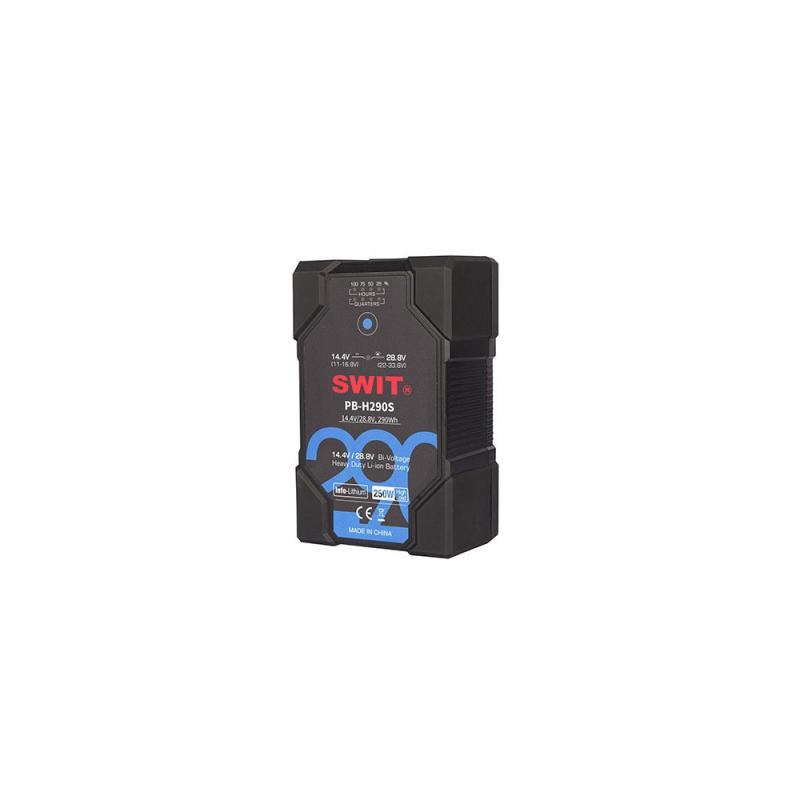

SWIT PB-H290S 290Wh Intelligent 14V/28V Battery V-Mount

14.4V/28.8V Bi-Voltage
For ALEXA LF/65 and all normal cameras

The great solution to power ARRI Alexa LF/65 high voltage cameras: SWIT Intelligent Bi-voltage Battery, which can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.

Key Features

14.4V/28.8V Bi-voltage auto switch

For ALEXA LF/65 high voltage cameras

For all normal voltage cameras

For high voltage cine lights

Compatible with normal voltage chargers

290Wh capacity, at least 250W high load

6A fast charging support

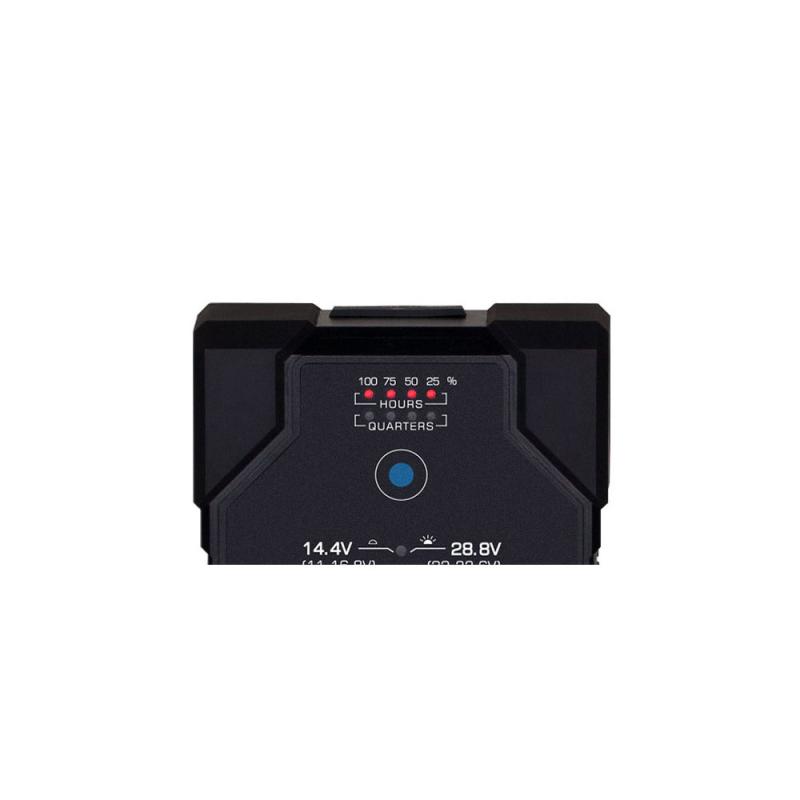

8-LED remaining time indicators

D-tap power output socket

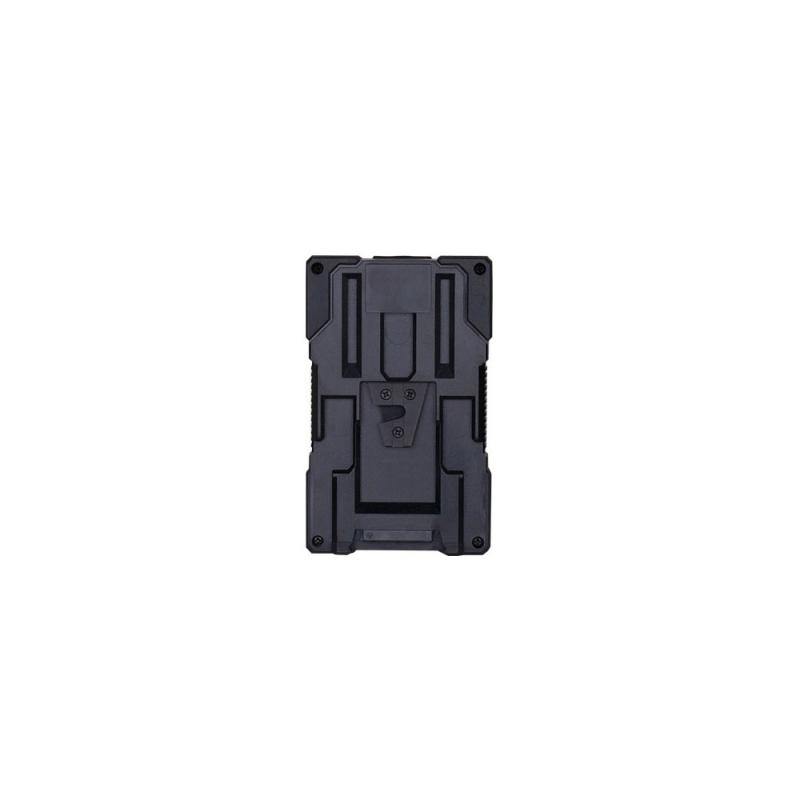

Normal V-mount connection

1.5m drop-off proof, IP54 water proof

Multiple circuit protections

Technical specifications

Nominal voltage: 14.4V or 28.8V auto switching
Capacity: 290Wh

Max output power (14.4V)

Total: 250W

Pins: 250W / 20A

D-tap: 120W / 10A

Max output power (28.8V)

Total: 250W

Pins: 250W / 10A

D-tap (16V): 50W / 3A

Max charging current: 16.8V / 10A
Mount Type: V-mount
Charging Temperature: 0 ~ 40°C
Discharging Temperature: -20°C ~ 50°C（Capacity and Max Load may decrease when operating below 0°）
Dimension: 162×101×69mm
Net weight: 1578g; With package 1.65kg
