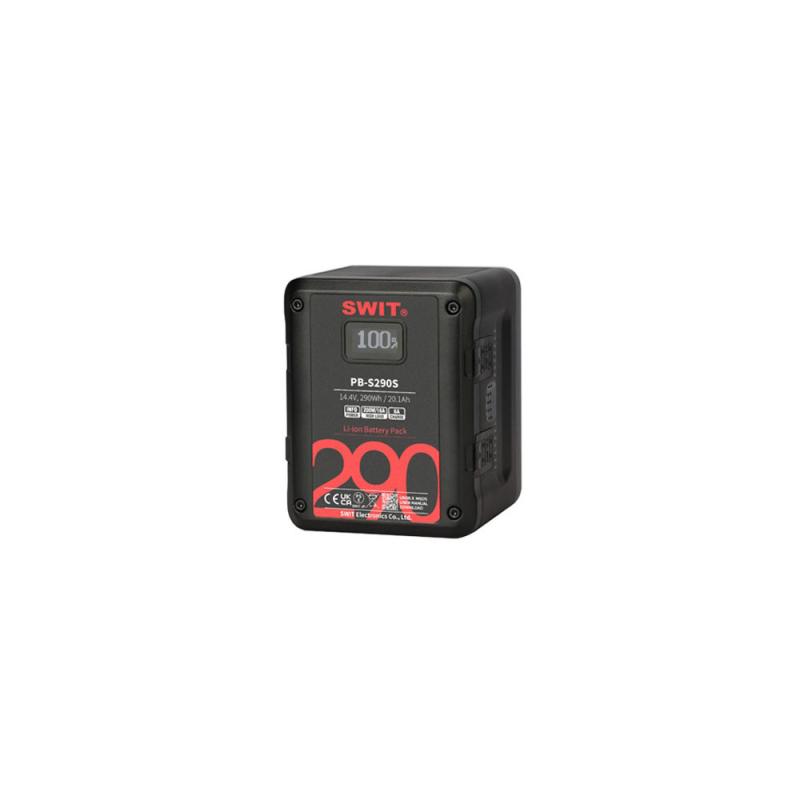

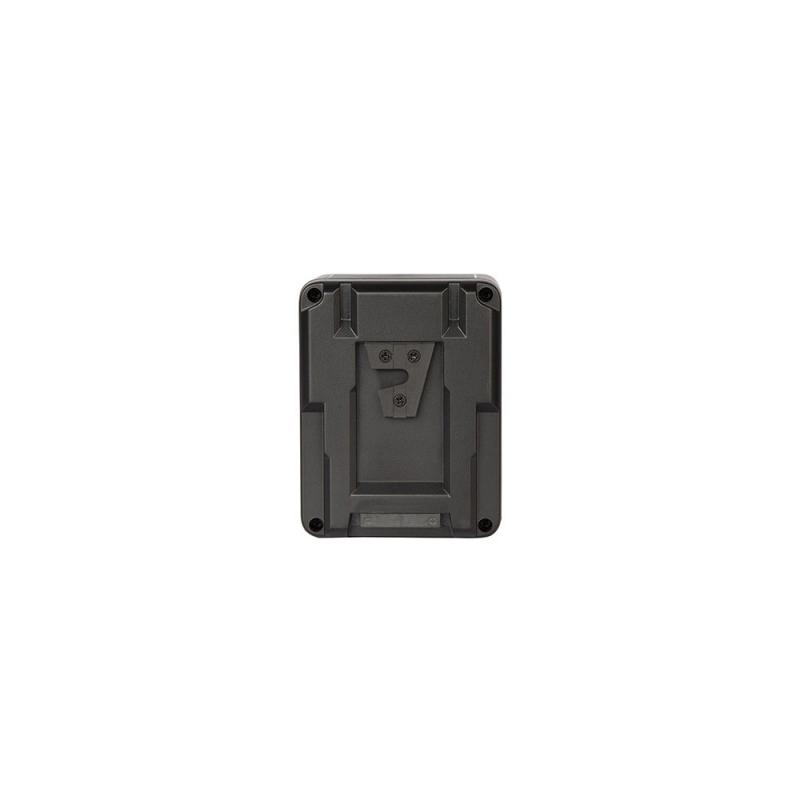

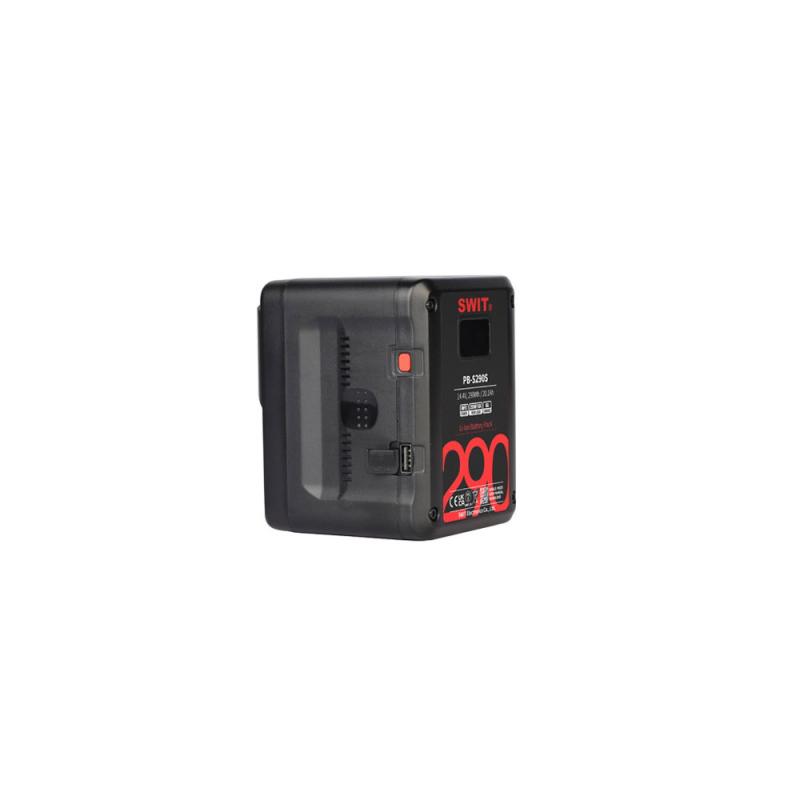

SWIT PB-S290S 290Wh Multi-sockets Digital Battery, V-Mount

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

Key Features

Square shape design for Cine-cameras

290Wh, 20.1Ah large capacity

At least 200W, 16A constant load

4x D-tap output sockets

1x USB 5V/2A power output sockets

100W 6A super fast charging

OLED display accurate remaining run time

Display power info in both SONY & RED

Multiple circuit protections

Technical specifications

Model: PB-S290S Nominal voltage: 14.4V
Capacity: 290Wh, 20.1Ah

Max output

In total: 200W

Electrodes: 200W,16A

USB:10W, 5V/2A

D-tap: 120W / 10A

Charging input: 16.8V 3A (Max)
Charging Temperature: 0 ~ 40°C
Discharging Temperature: -20°C ~ 50°C（Capacity and Max Load may decrease when operating below 0°）
Dimension: 121×95×96mm
Net weight: Net 1.44kg; With package1.55kg
Max charging current: 6A
D-TAP socket number: 4
USB socket number: 1
