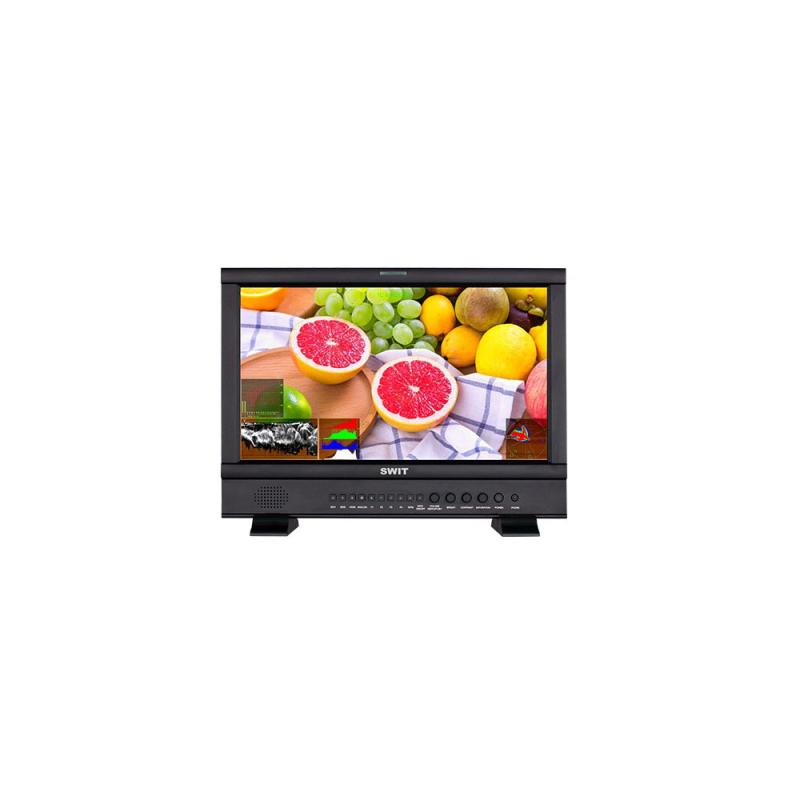

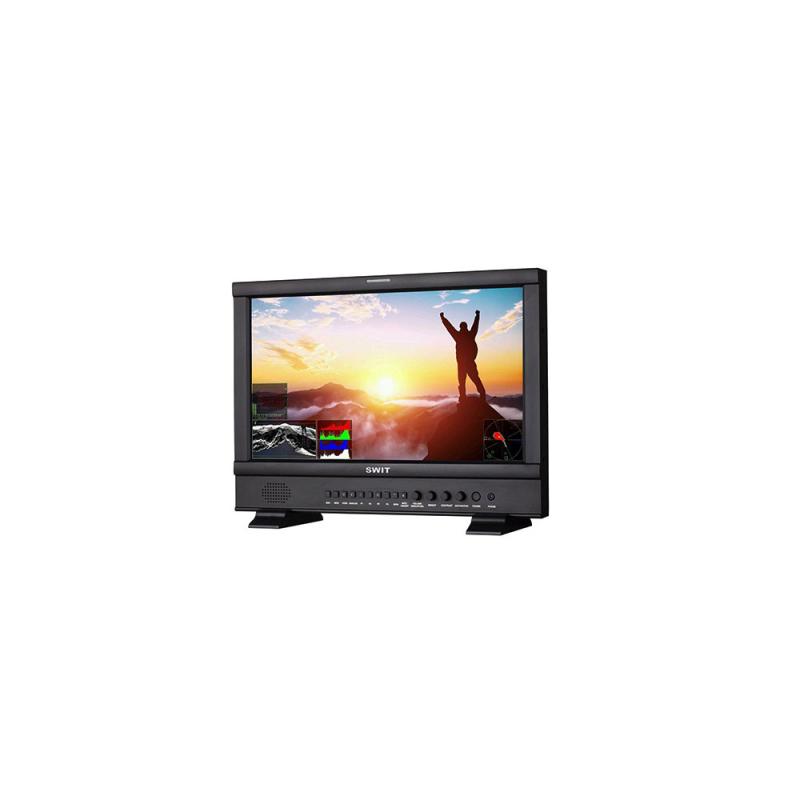

SWIT S-1173FS 17.3in Full HD Waveform Studio LCD Monitor

S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160degr. / Vertical: 160degr..

Key Features

17.3-inch LCD Panel, 1920x1080 resolution

2K/3G/HD/SD-SDI( x2 ), HDMI monitoring

Y/Pb/Pr, VGA, CVBS monitoring

3DLUT 17x17x17 color calibration

Built-in Multiple De-log 3DLuts

User LUTs upload by USB

16-ch Embedded audio meters with alert

Select any 2 audio channels to output

Waveform Y/Cb/Cr/R/G/B and single line

Vector scope, histogram R/G/B/Y

Peaking focus assist (red/blue switch)

AFD, Timecode, H/V delay

TSL UMD and text TALLY display

Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1

False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar

V-mount / Gold mount battery plate optional

19inch Rack install, 7U height

USB firmware upgrade

Technical Specifications

Display Size: 17.3" / 43.9 cm
Native Resolution: 1920 x 1080
Touchscreen: No
HDR Support: No
Media/Memory Card Slot: No
Wireless: No
Battery: 1x V-Mount on Included, Interchangeable Plate
Power Consumption: 32 W

Display

Panel Type: LCD
Display Size: 17.3" / 43.9 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle:
Horizontal: 160°
Vertical: 160°
Touchscreen: No
Maximum Brightness: 300 nits / cd/m2
Contrast Ratio: 700:1
Color Support: 16.7 Million Colors
HDR Support: No
LUT Support: Yes
Image Controls: Customizable Aspect Ratios

Video Format

HDMI

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576p

576i

480p

480i

SDI

DCI 2K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2Ki: 60/59.94/50

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

576i

480i

Component

1080p: 59.94/50

1080i: 59.94/50

720p: 59.94/50

576p

576i

480p

480i

Composite

NTSC

PAL

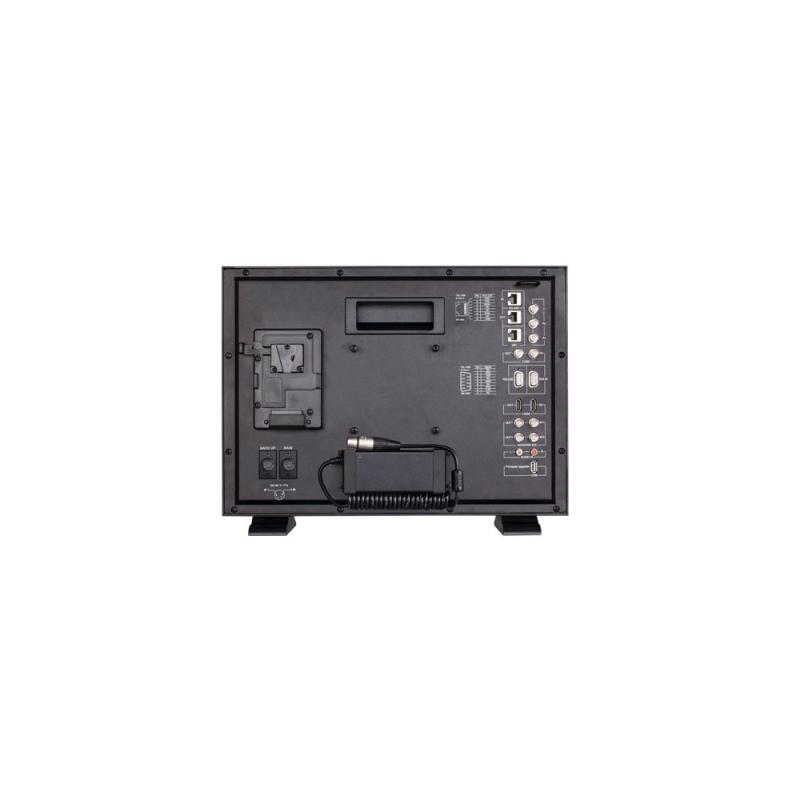

Inputs / Outputs

Video I/O

1x 3BNC (Component) Input

1x BNC (Composite) Input

1x BNC (Composite) Loop Output

1x VGA (RGBHV) Input

1x HDMI Input

1x HDMI Loop Output

2x BNC (3G-SDI) Input

2x BNC (3G-SDI) Output

Embedded Audio

SDI: 16-Channel

HDMI: 8-Channel

Audio I/O

1x 2RCA Input

Built-In Speaker: No

Power I/O

2x XLR 4-Pin Input

Other I/O

1x USB-A (Firmware/LUT Upload)

1x RJ45 (RS-485) Input

1x RJ45 (RS-485) Output

1x RJ45 (GPI)

1x DE-9/DB-9 (RS-232)

Media/Memory Card Slot: No

Wireless

Wireless: No
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: No

PC Resolutions

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 768

1280 x 960

1280 x 1024

1600 x 1200

Power

Input Power:
11 to 17 VDC
104 to 240 VAC, 50 / 60 Hz

Battery: 1x V-Mount on Included, Interchangeable Plate
Power Consumption: 32 W

Mounting

Rack Form Factor: 7 RU
VESA Mounting-Hole Pattern: Unspecified VESA Pattern

General

Environmental Resistance: No
Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions: 5 to 150°F / -15 to 60°C
Material of Construction: Metal
Dimensions: 17 x 12.2 x 2.8" / 43.18 x 30.99 x 7.11 cm
Weight: 10.25 lb / 4.65 kg
