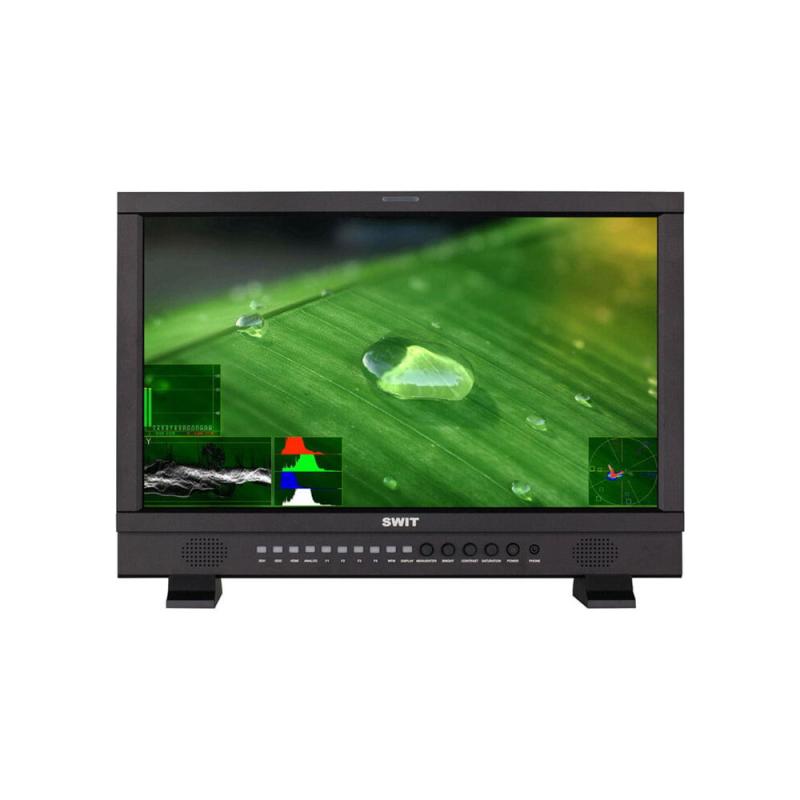

SWIT S-1223FS 21.5in Full HD Waveform Studio LCD Monitor

S-1223F adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178degr. / Vertical: 178degr..

Key Features

21.5-inch LCD Panel, 1920x1080 resolution

2K/3G/HD/SD-SDI( x2 ), HDMI monitoring

Y/Pb/Pr, VGA, CVBS monitoring

3DLUT 17x17x17 color calibration

Built-in Multiple De-log 3DLuts

User LUTs upload by USB

16-ch Embedded audio meters with alert

Select any 2 audio channels to output

Waveform Y/Cb/Cr/R/G/B and single line

Vector scope, histogram R/G/B/Y

Peaking focus assist (red/blue switch)

AFD, Timecode, H/V delay

TSL UMD and text TALLY display

Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1

False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar

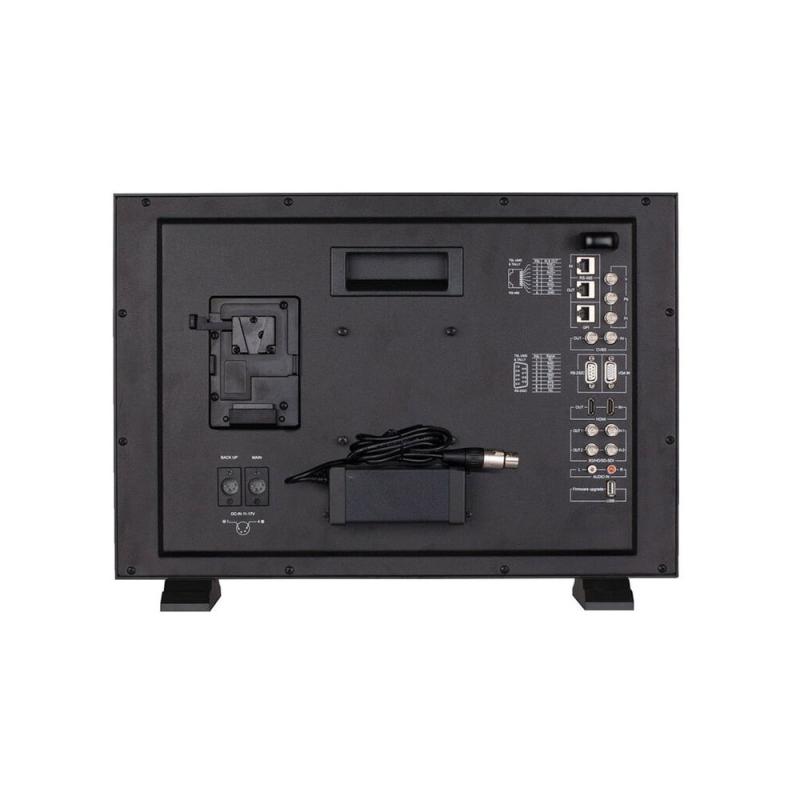

V-mount / Gold mount battery plate optional

USB firmware upgrade

Technical specifications

Display Size: 21.5" / 54.6 cm
Native Resolution: 1920 x 1080
Power Consumption: 32 W
Display Size: 21.5" / 54.6 cm
Screen Area: 18.78 x 10.55" / 47.7 x 26.8 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle: Horizontal: 178°, Vertical: 178°
Maximum Brightness: 250 nits / cd/m2
Contrast Ratio :1
Image Controls: Customizable Aspect Ratios
Input Power: 11 to 17 VDC, 101 to 240 VAC, 60 / 50 Hz
Power Consumption: 32 W
Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions: 5 to 150°F / -15 to 60°C
Dimensions: 20.6 x 14 x 3.4" / 52.32 x 35.56 x 8.64 cm

Included items

SWIT 21.5" Full HD Waveform Studio LCD Monitor (V-Mount)
V-Mount Battery Plate
AC-DC Power Adapter
2 x Desktop Stand Feet
Limited 2-Year Manufacturer Warranty
