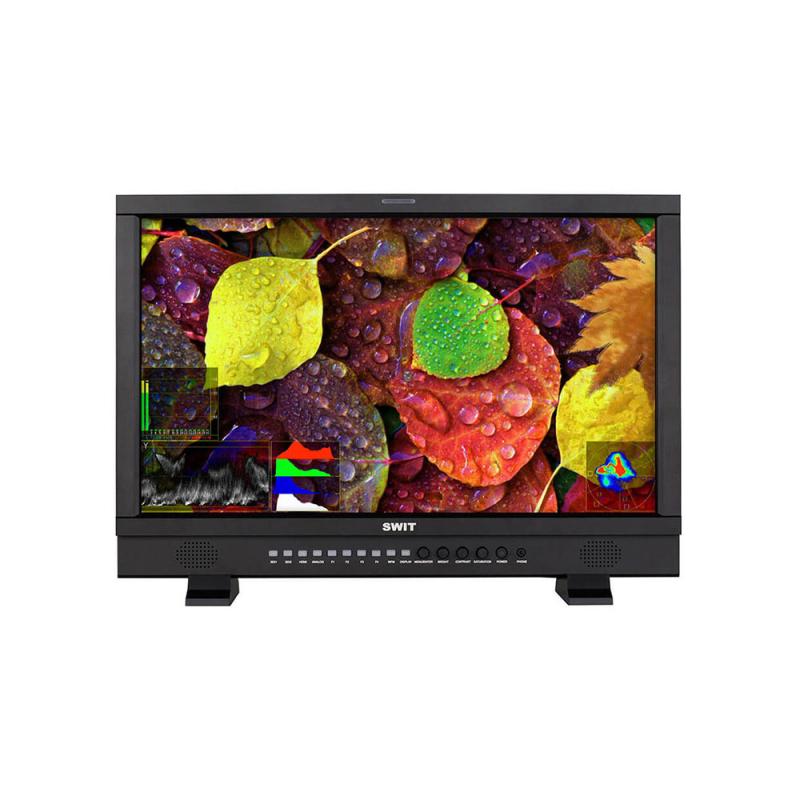

SWIT S-1243FS 23.8in Full HD Waveform Studio LCD Monitor

S-1243F adopts a 23.8 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1080 resolution and LED backlight, 1000:1 contrast for accurate color repro- duction. The viewing angle is Horizontal: 178degr. / Vertical: 178degr.

Key Features

23.8-inch LCD Panel, 1920x1080 resolution

2K/3G/HD/SD-SDI( x2 ), HDMI monitoring

Y/Pb/Pr, VGA, CVBS monitoring

3DLUT 17x17x17 color calibration

Built-in Multiple De-log 3DLuts

User LUTs upload by USB

16-ch Embedded audio meters with alert

Select any 2 audio channels to output

Waveform Y/Cb/Cr/R/G/B and single line

Vector scope, histogram R/G/B/Y

Peaking focus assist (red/blue switch)

AFD, Timecode, H/V delay

Technical specifications

Display Size: 23.8" / 60.5 cm
Native Resolution: 1920 x 1080
Power Consumption: 36 W
Panel Type: LCD
Display Size: 23.8" / 60.5 cm
Screen Area: 19 x 11" / 53 x 30 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle: Horizontal: 178°, Vertical: 178°
Maximum Brightness: 300 nits / cd/m2
Contrast Ratio :1
Image Controls: Customizable Aspect Ratios
Input Power: 11 to 17 VDC, 100 to 240 VAC, 60 / 50 Hz
Power Consumption: 36 W
Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions: 5 to 140°F / -15 to 60°C
Dimensions: 23 x 15 x 3.4" / 58.42 x 38.1 x 8.64 cm
Weight: 16.00 lb / 7.26 kg

Included items

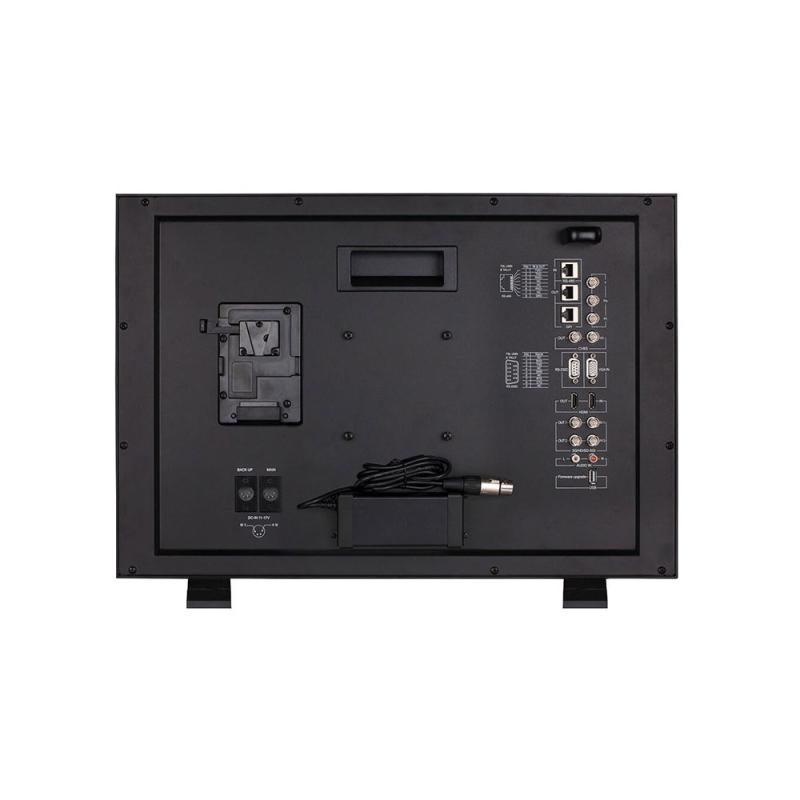

SWIT S-1243F Waveform Studio LCD Monitor (23.8", V-Mount)
V-Mount Battery Plate
Limited 2-Year Manufacturer Warranty
