Teradek RT MDR.X - Three-Channel Lens Control Receiver w/BT.

Overview
MDR.X is an ultra-lightweight, 3-axis receiver for any industry standard camera. MDR.X features full focus/iris/zoom support, integrated RED camera control, and an OLED display for lens information.

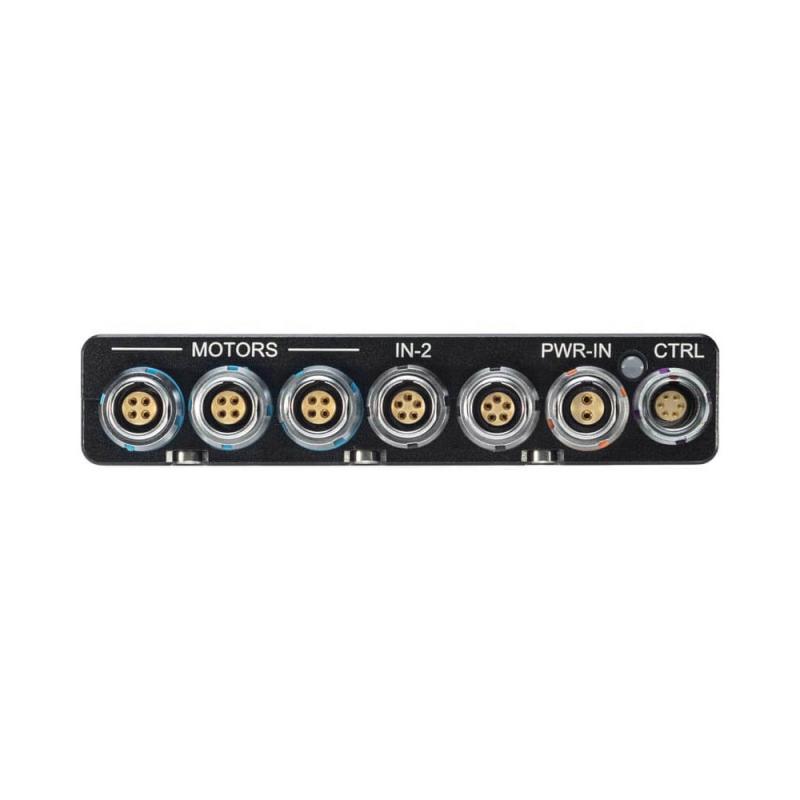

Multiple Inputs/Outputs
3x Motor ports for Focus Iris Zoom.
2x Auxiliary inputs for wired control (via Teradek RT thumbwheel/zoomrocker).
1x Cam output for RED DSMC2 camera control.

Compact & Lightweight
At just 140g, MDR.X is the lightest and most high-tech receiver in the follow focus world. Small form factor makes it perfect for all camera setups, especially those on gimbals, handhelds, cranes, drones and other movement rigs.

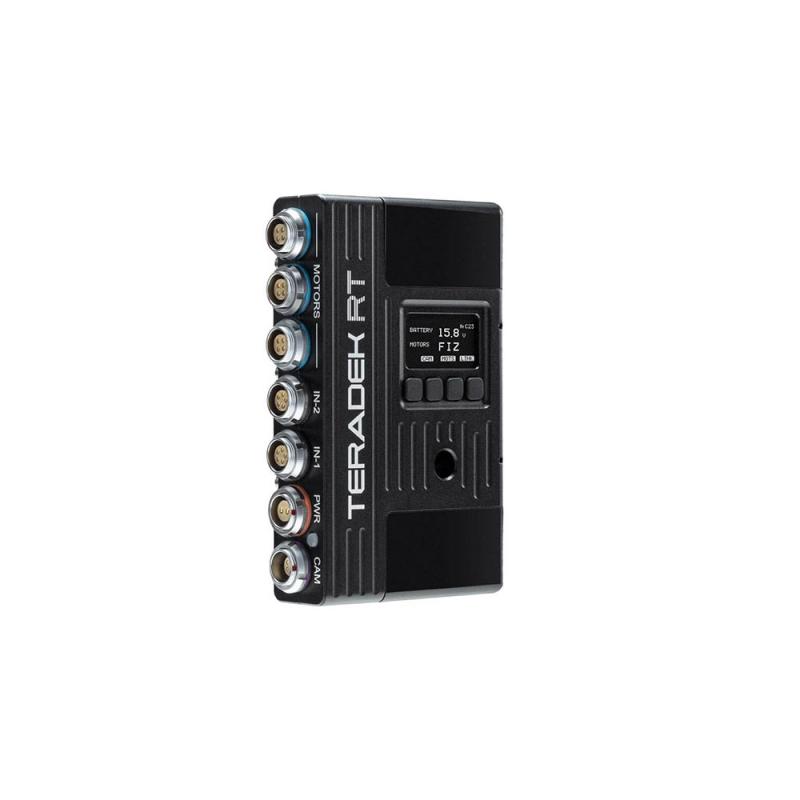

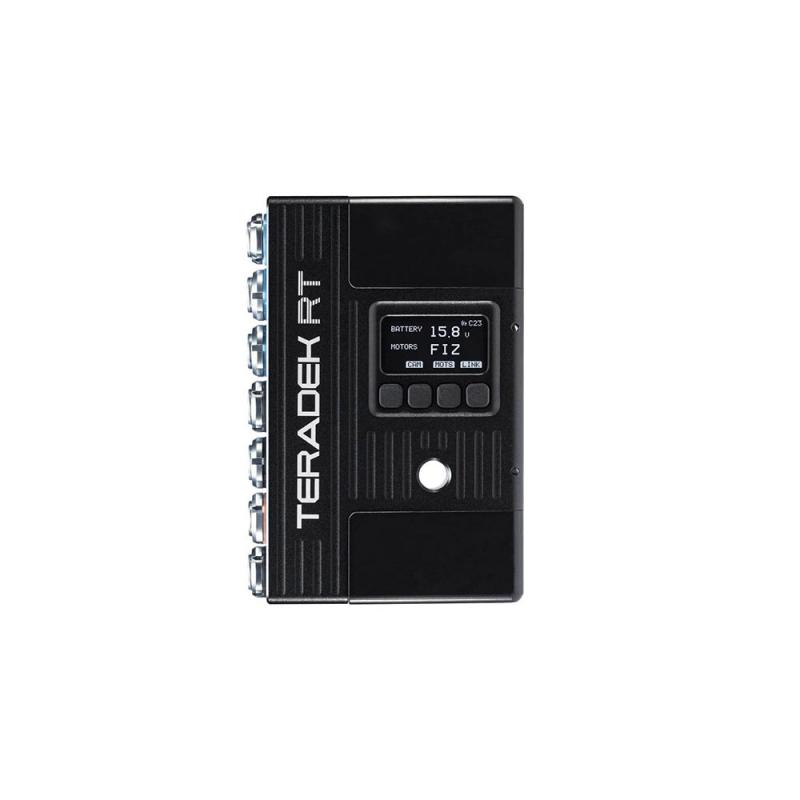

On-Unit OLED Display
Each receiver includes an on-unit OLED display with push buttons for configuring motor axes. Also see status readouts including wireless channels, battery voltage and more.

Teradek RT App
Manage, update and configure every piece of your Teradek RT system via Bluetooth with the Teradek RT App for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware and much more all from the convenience of your smartphone or tablet.

Key Features
3-axis receiver for focus, iris, zoom.

Ultra lightweight 140g.

On-unit OLED display.

Bluetooth for remote access via Teradek RT App for iOS.

Technical specifications

Construction: Aluminum alloy base
Dimensions: 2.3”W x 0.7”D x 3.7”H [58mm x 18mm x 94mm]
Weight: 4.8 oz (136g)
Power Input: Power via 2-pin LEMO 7-17V input

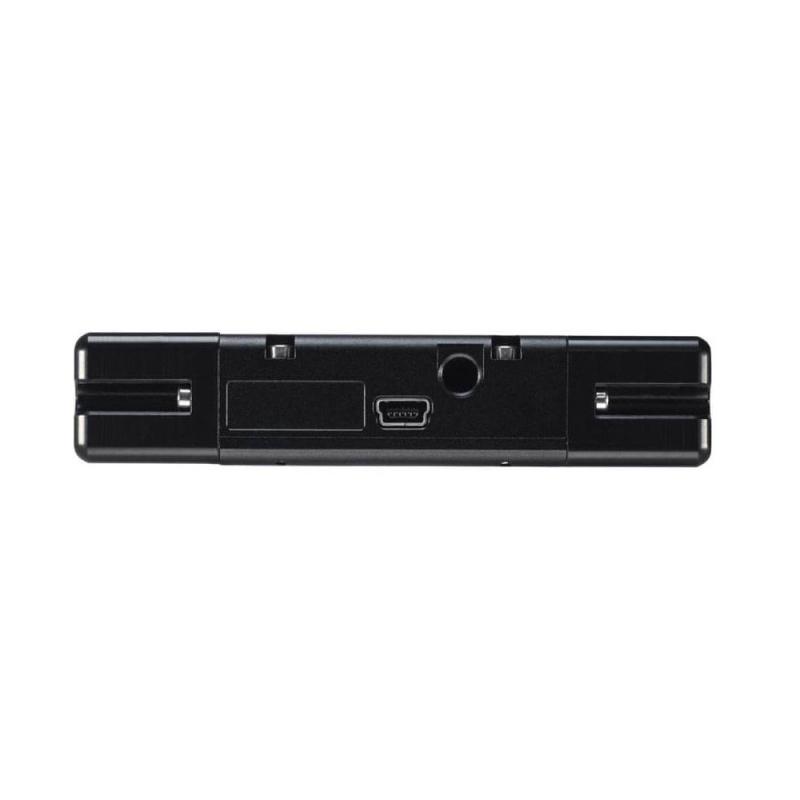

Connectors: 1 x Power input 3 x Motor ports 2 x Slave controller inputs 1 x CAM (Camera control port): 6-pin LEMO 0B 1 x USB: Mini-USB (firmware updates)
Runstop Control: Including but not limited to: ARRI ALEXA, ALEXA Mini, AMIRA, etc. Blackmagic Canon C100, C300 (MkII+), C500 Panasonic Varicam Phantom RED DSMC2, DSMC, ONE Sony F5, F55, FS7 (MkII+)
Camera Control Support: RED DSMC2, RED DSMC control: EF/AF Focus/Iris Shutter ISO Button features: 2x Magnification, Edge, Focus Assist
Wireless: 1 x 2.4 GHz BLE module 1 x 2.4 GHz RT FHSS wireless module
Wireless Range: RT FHSS: Line-of-sight: Up to 5000' (1500 m) (in USA/FCC mode) Indoors: Up to 492' (150 m) BLE 5: Theoretical maximum range of 800ft, actual range will vary.
Operating Temperature: -4 to 122°F (-20 to 50°C)
Storage Temperature Range: -40 to 185°F (-40 to 85°C)

Included items

1 x MDR.X
1 x Mini-USB (5-Pin) to USB - 18in Cable
