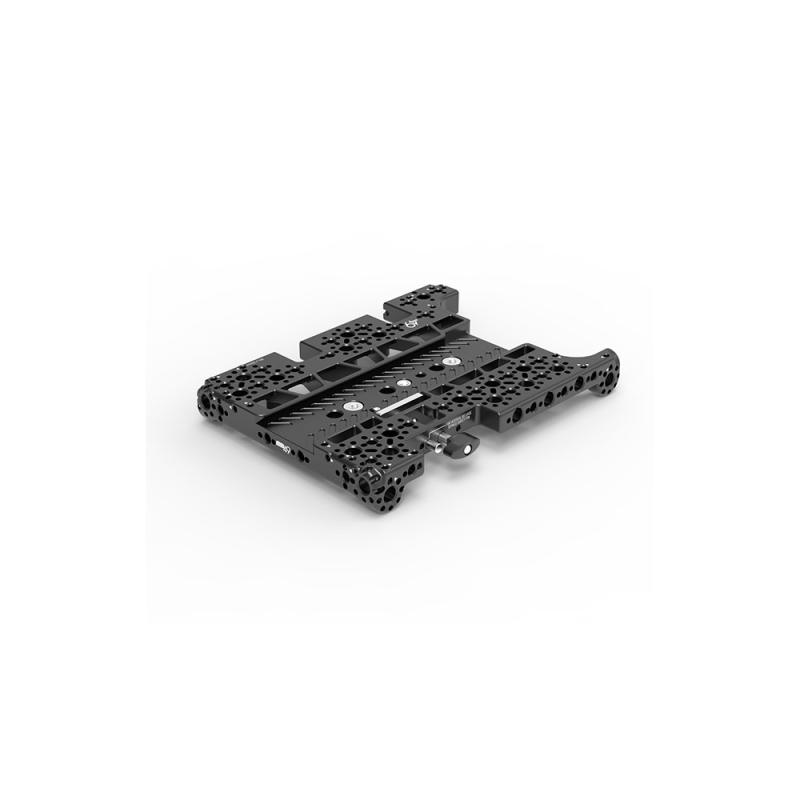

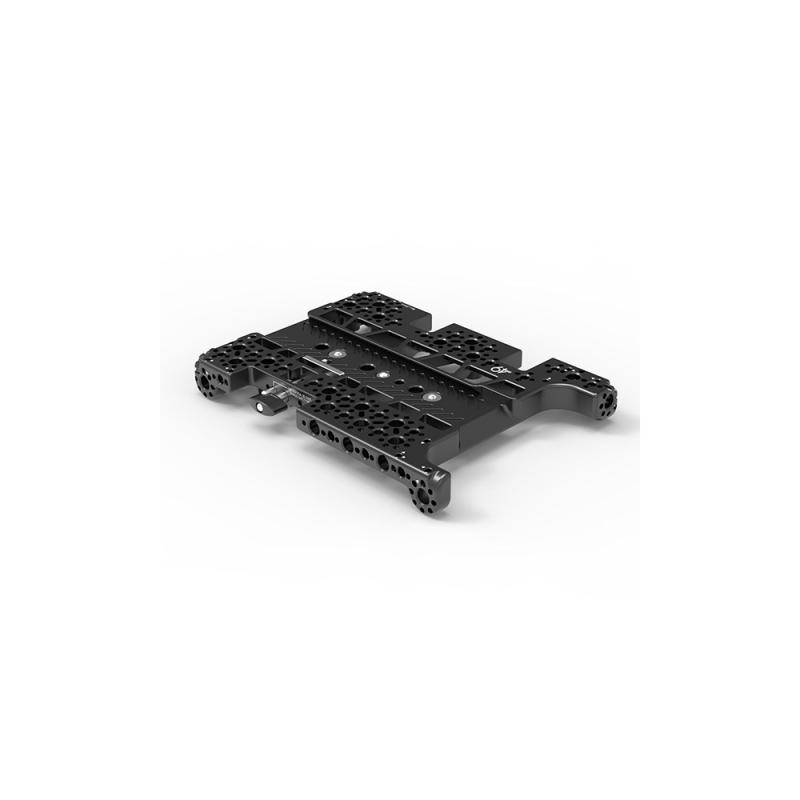

Top Plate (Blackmagic URSA Cine LF)

Top Plate (Blackmagic URSA Cine LF) attaches to the top of the camera and provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and provides ventilation for the URSA fan system.

Center ARCA dovetail clamp allows for attachment of the Rainbow Handle Kit, ARCA Top Handle, ARCA Top Plate, and Gimbal Adapter Plates (Freefly Movi Pro and DJI Ronin 2) for quick change between handheld and studio modes.

Side 3/8-16 ARRI accessory mounts can accept Cage NATO Side Arm (ARRI 3/8-16, 135mm) for cage building.

Technical specifications

Compatibility: Blackmagic Design URSA Cine LF

Mounting: Top: Multiple 3/8"-16 with Anti-Twist Divots

                    Top: Multiple 1/4"-20 with Anti-Twist Divots

                    Side: Multiple 3/8"-16 with Anti-Twist Divots

                    Front: Multiple M4

Color: Black

Dimensions: 7.52 x 5.67 x 0.94" / 19.1 x 14.4 x 2.39 cm

Package Weight: 0.825 lb

Box Dimensions (LxWxH): 7.95 x 6.5 x 1.1"

Included items

MID49 Top Plate for Blackmagic URSA Cine LF
