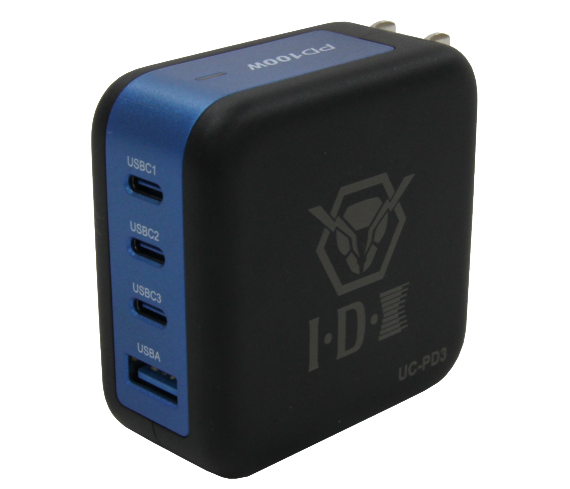

USB-C PD charger three channel

The UC-PD3 is a 4 channel (1 USB-A and 3 USB-C), low cost, portable charger designed to charge IDX batteries equipped with a USB-PD port.  IDX believes that extending the number of USB-C ports will improve convenience.  The addition of the UC-PD3, (along with the UC-PD1 and UC-PD2) provies IDX users a complete line of USB-PD portable battery chargers for convenient location and travel camera charging and a power supply for other devices, such as tablets, smartphones, cameras and other AV/IT gear equipped with a USB-C terminal.

Technical specifications

Input Voltage: AC 100-240V 50/60Hz

Quick Charge Current: USB-C port 1/2 : DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 100W

USB-C port3: DC5V/3A, DC9V/2.22A, DC12V/1.67A (Max. 20W)

Quick Charge Current: USB-A Single port : DC4.5V/5A, DC5V/4.5A, DC9V/2A, DC12V/1.5A (Max. 22.5W)

DC Connector: USB Type-C and USB Type-A

Operating Temperature: 0°C ~ 40°C

Cable Length: 152.40 cm (1.5m)

Description: 3ch: USB Power Delivery

Weight 0.21 kg
