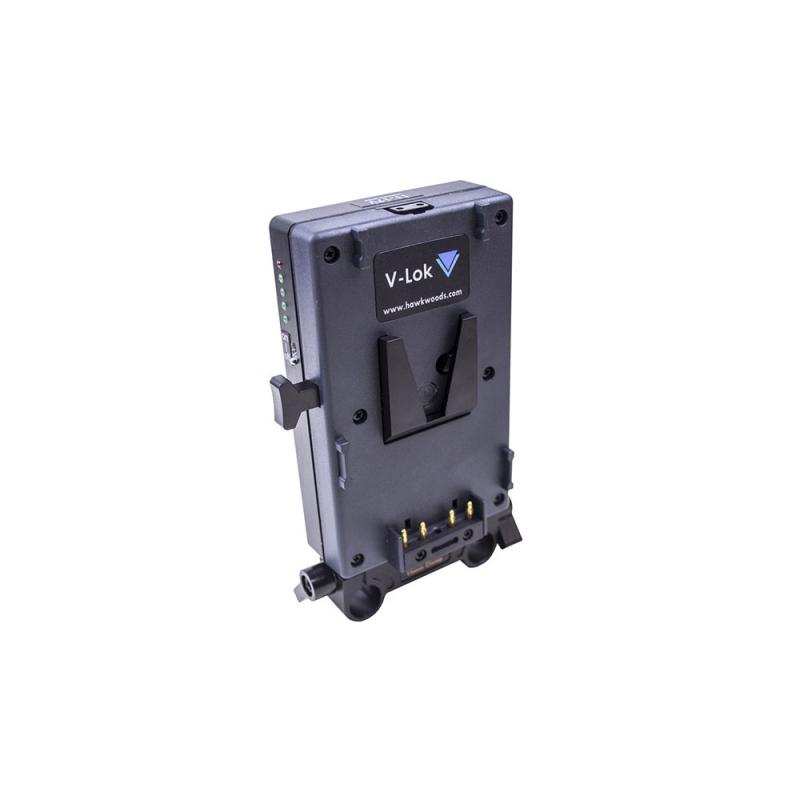

V-lock 15mm sleek Adaptor - 5x Power-Con (12v Regulated)

Hawk-Woods power adaptor with integrated 15mm clamp.

The stylish V-Lok adaptor comes with 5x D-Tap outputs to the rear of the adaptor. The VL-DC6X is a slimmer design with a anodized back plate giving a professional finish. 4x D-Tap outputs are regulated giving a 12volt output and 1x D-Tap is nominal battery voltage.

There is no need to buy a separate clamp, the clamp provided has also been modernized with a slimmer look, which is now captive to the adaptor, for easy use.

The VL-DC6X's Power-con regulated ports are ideal for Sony's FS5 camera which does not tolerate voltages above 16v. Meaning Lithium-Ion 16.8v batteries require a regulated feed to the camera.

Technical specifications

Plate Front / Battery Mount: V-Mount

Plate Rear Mount: 15 mm Rod Clamp

Number of Battery Bays: 1

Hot-Swap Support: No

Inputs/Outputs: 4x D-Tap/P-Tap Output, 1x D-Tap/P-Tap Output

Dimensions: 6.5 x 4.3 x 1" / 16.5 x 11 x 2.5 cm

Weight: 8.7 oz / 248 g

Package Weight: 0.38 kg

Box Dimensions (LxWxH): 22.1 x 16.0 x 6.1 cm

Limited 1-Year Manufacturer Warranty

Included items

Hawk-Woods V-Lok 15mm Regulated Power Adapter (12V Regulated)
