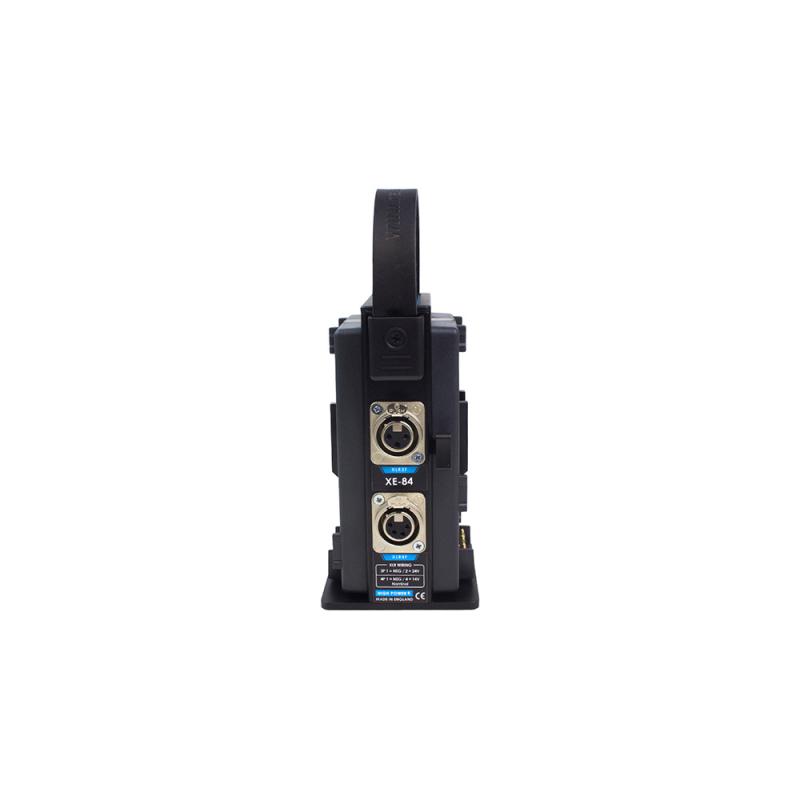

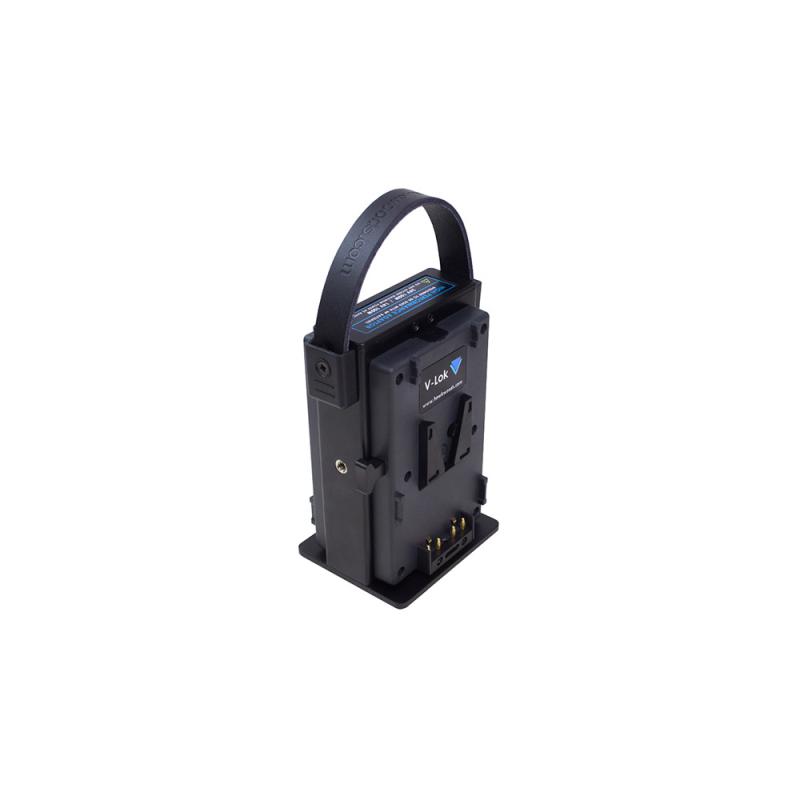

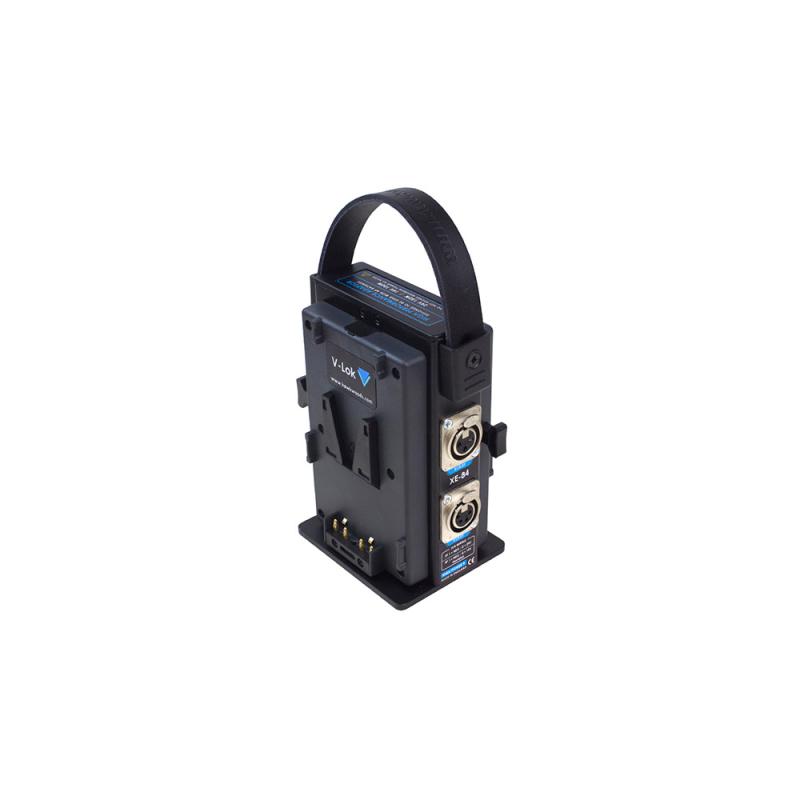

V-Lok Dual Docking Adaptor 1x XLR 3-pin 24V 2x XLR 4-pin 14V

The flagship of the V-Lok dual adaptor range from Hawk Woods is the XE-84, a multi-functional power adaptor which allows two V-Lok batteries to be discharged in parallel whilst combining the wattage to provide twice the run-time. High performance contacts have been fitted to the adaptor which allow units of up to 150watts to be powered comfortably when used in conjunction with Hawkwoods High-performance range VL-90H, VL-150H, VL-175H.

The XE-84 supports a XLR 4-pin output which provides nominal battery voltage along with a 24v Step-Up XLR 3-pin output to run high-powered equipment. Two Power-con outputs are also standard with the camera fittings.
The adaptor has been finished with a soft leather carry handle, a nylon hanging cord and also includes a 1/4" BSW thread for mounting to clamps/stands.

Note: You will only see the full benefit of the adaptor when all four contacts are married up with the four High performance battery contacts.

Technical specifications

Quantity: 1

Compatibility: Hawk-Woods VL-90H Battery / VL-150H Battery / VL-175H Battery

Power Source: Battery (Not Included)

Power I/O: 1x XLR 3-Pin Female Output, 1x XLR 4-Pin Female Output

DC Input Power: 14 to 24 VDC

Maximum Power Output: 150 W

Mounting: 1x 1/4"-20 Thread

Color: Black

Material of Construction: Plastic, Leather (Strap)

Dimensions: 6.1 x 4.5 x 3.1" / 15.5 x 11.5 x 8 cm

Weight: 1.7 lb / 750 g

Package Weight: 0.81 kg

Box Dimensions (LxWxH): 23.9 x 11.9 x 8.6 cm

Limited 1-Year Manufacturer Warranty

Included items

Hawk-Woods XE-84 V-Mount Dual Docking Power Adapter
